GETTING STARTED

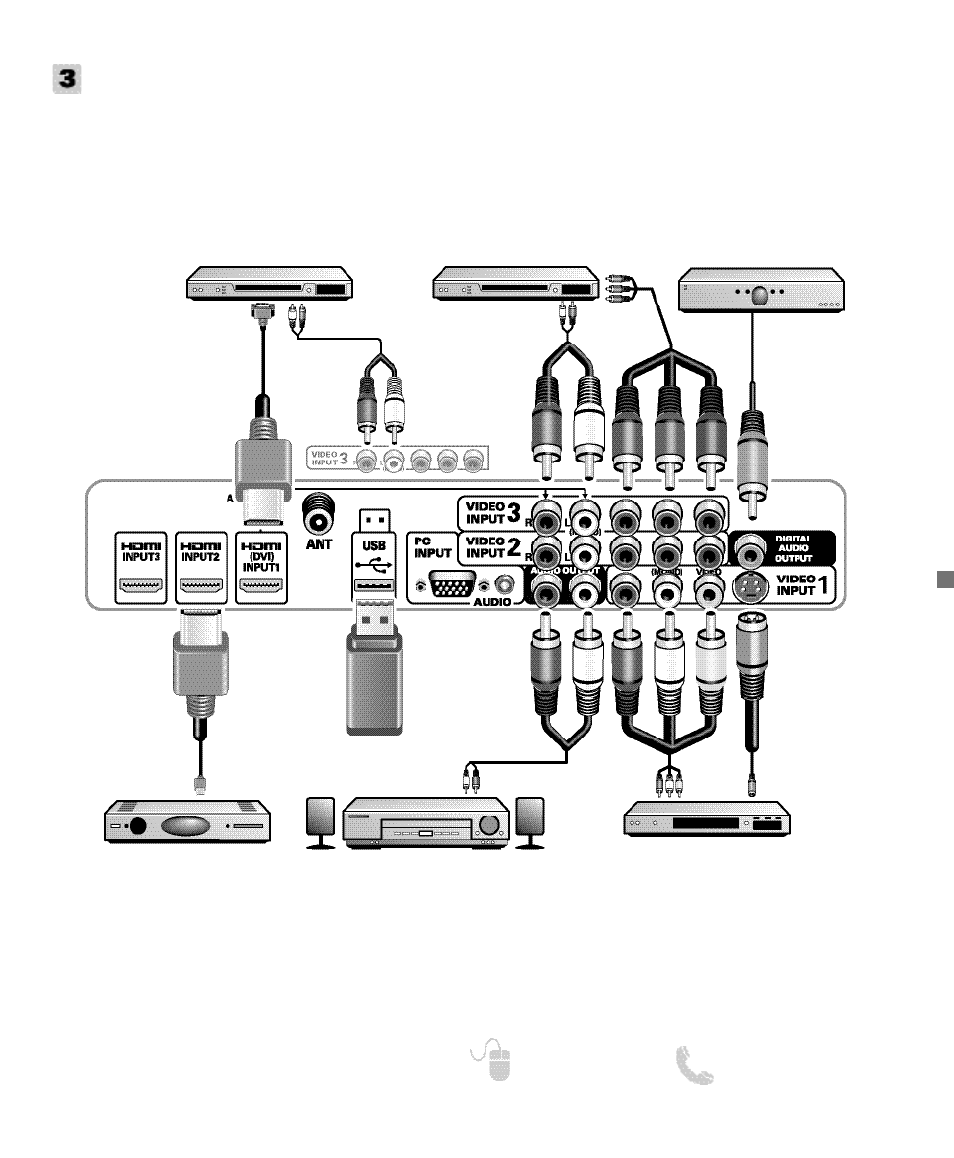

AUDIO / VIDEO CONNECTIONS
Composite connections are used to
hookup your analog equipment such
as a VCR or an older DVD player.
NOTE: S-Video input may be used instead of
the yellow Composite video input.
Digital Audio Output is used to hookup a
multichannel receiver with the use of a phono-
type digital audio cable.
Component connections will accept SDTV,
EDTV and HDTV video signals. Use them for
great image quality from digital devices.
Audio Output L/R are used to
hookup an external stereo
Amplifier. (Do not connect
external speakers directly to
the HDTV)
HDMI (DVI) INPUT1 can be used to hookup
a DVI device with the use of an appropriate
DVI to HDMI cable or adapter. (VIDEO3
Audio in L/R jacks need to be hooked up to
the DVI device as well.)
NOTE: HDMI (DVI) INPUT1 can be used for any
digital device with an HDMI output.
USB FLASH
DRIVE
DVD PLAYER
(or similar device)
VCR
(or analog device)
STEREO AMPLIFIER
MULTICHANNEL
RECEIVER
NOTE: Audio/Video cables are not supplied
SATELLITE RECEIVER
(or similar device)
DVI
DVD PLAYER
(or similar device)
HDMI INPUT1, 2 & 3 are used to
hookup HD digital devices such
as a Blu-ray player, HD Cable
Box, HD Satellite Receiver or
Video-game System.
