5
The M IKE M AN is equipped with two electronically balanced,
female 3-pole XLR sockets to connect two microphones or a line
signals. The outputs of the M
IKE M AN are designed balanced on
male XLR sockets as well as unbalanced on 1/4“ jacks.The outputs
can be used parallel to each other. This means that two output
signals can be produced from one input signal.

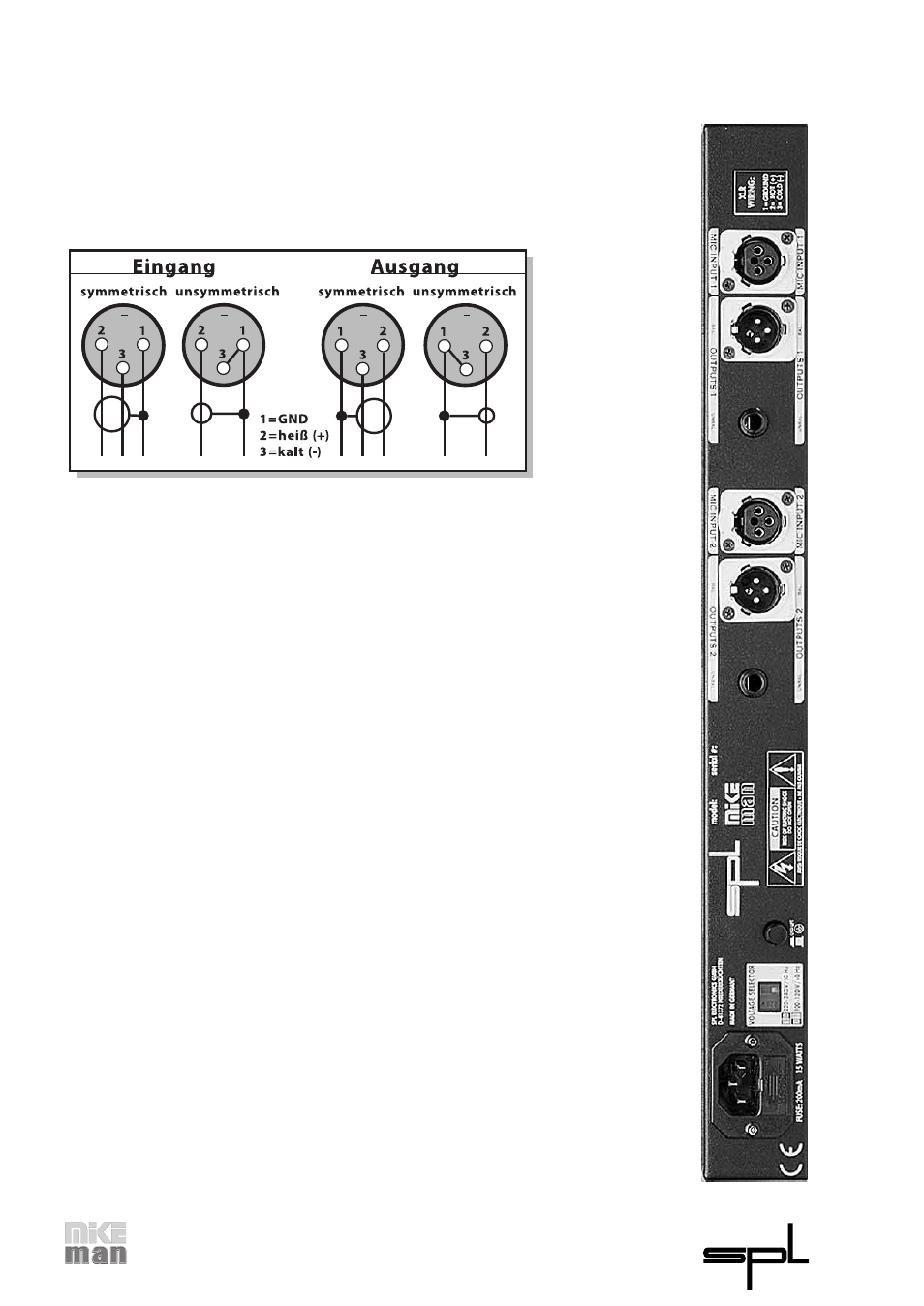

The following diagram shows how to unbalance balanced
wiring correctly:
Condenser microphones with 48 V phantom power can not be
used unbalanced.
Both output stages operate in parallel, so it is possible to
connect two different destination units simultaneously, for
example to record to two different media at the same time or split
the output between a mixer and effects processor.
Connections
Rear
fr
ont M
IKE
M
AN
,M
odel 9523
