Swisher ZT18542 EN - Manual (Page 24)

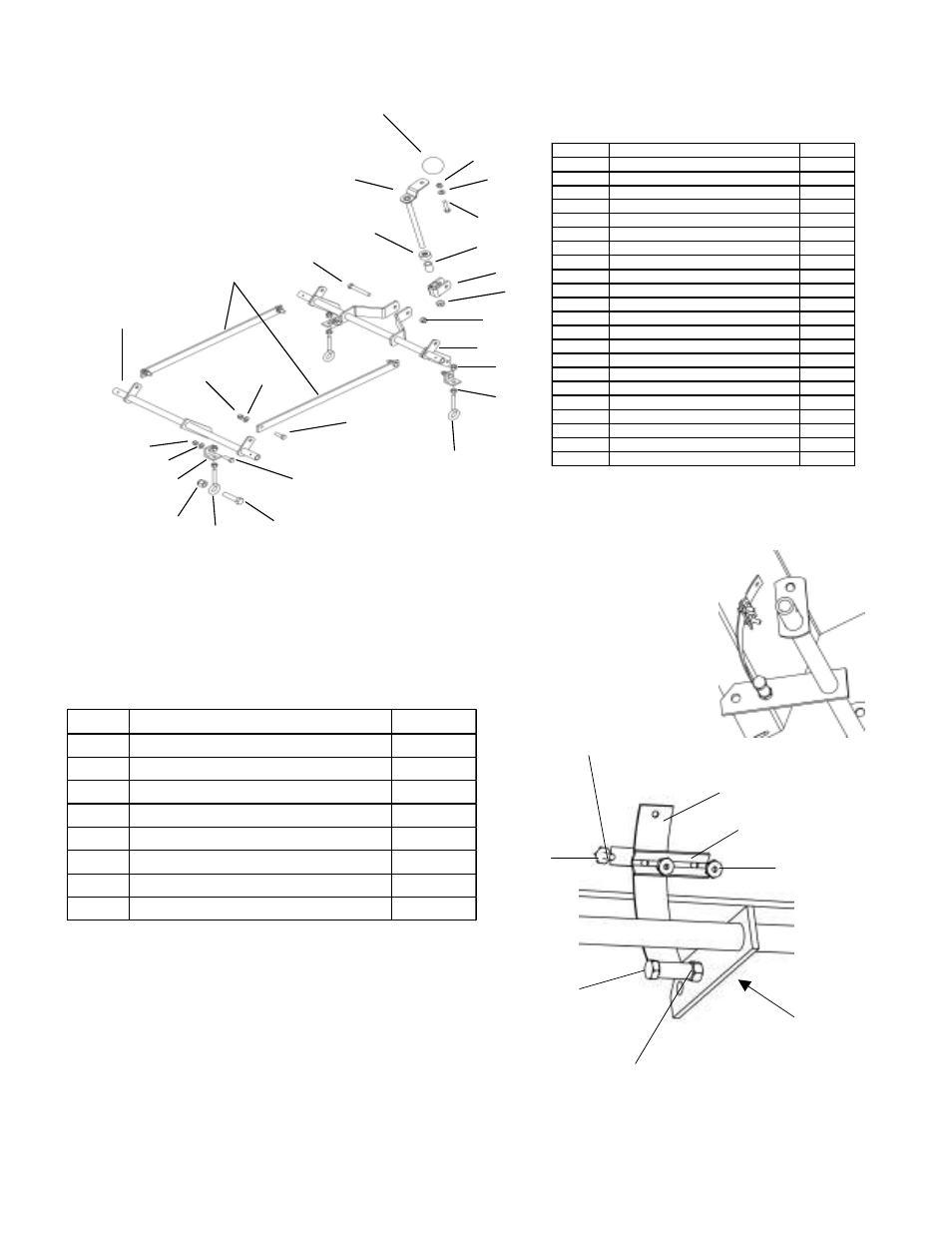

DECK LIFT
1
2
16 3
4
15
6
7
2
14
9
13
10
12
21
22
10
22
11
21
5
Item # Description Part #
1 Plastic Knob - Black 4857
2 3/8-16 2-Way Lock Nut NB280
3 5/16 USS Flat Washer ZP NB556
4 3/8-16 X 1 1/4 GR5 ZP NB618
5 Spacer 3/4 OD X .515 ID DOM X 1.125 3379
6 Rear Height Lifter 3705TK
7 1/2-13 Nyloc Nut NB281
8 3/8-16 Nyloc Nut NB182
9 Rear Torsion Weldment 3684TK
10 5/16-18 X 1 HCC GR5 ZP NB501
11 Lift Pivot 3663TK
12 Front Torsion Weldment 3683TK
13 Front - Back Height Link 3260TK
14 3/8-16 X 2 1/2 HTC GR5 ZP NB619
15 Banded Thrust Bearing T151
16 Height Adjust Crank 3266TK
17 1/2-13 X 2 HCC GR5 ZP NB509
18 3/8-16 Jam Nut ZP NB174
19 3/8-16 X 2 1/4 Eye Bolt NB204
20 1/2-13 Nyloc Nut NB281
21 5/16 SAE Washer NB275
22 5/16-18 Nyloc Nut NB181
17
18
19
20
8
19
24
Item # Description Part #
23 Height Adjust Indicator 3671TK
Height Adjust Indicator Decal OD99151
24 Height Adjust Indicator Bracket 3845TK
25 8-32 Nut NB201
25B 8-32 Machine Screw NB689
26 5/16-18 X 2 GR5 Bolt NB507
27 5/16-18 2 way Lock Nut NB558
28 5/16-18 Nyloc Nut NB181
HEIGHT ADJUST
INDICATOR
23
24
25
25
25B
26
27
28
