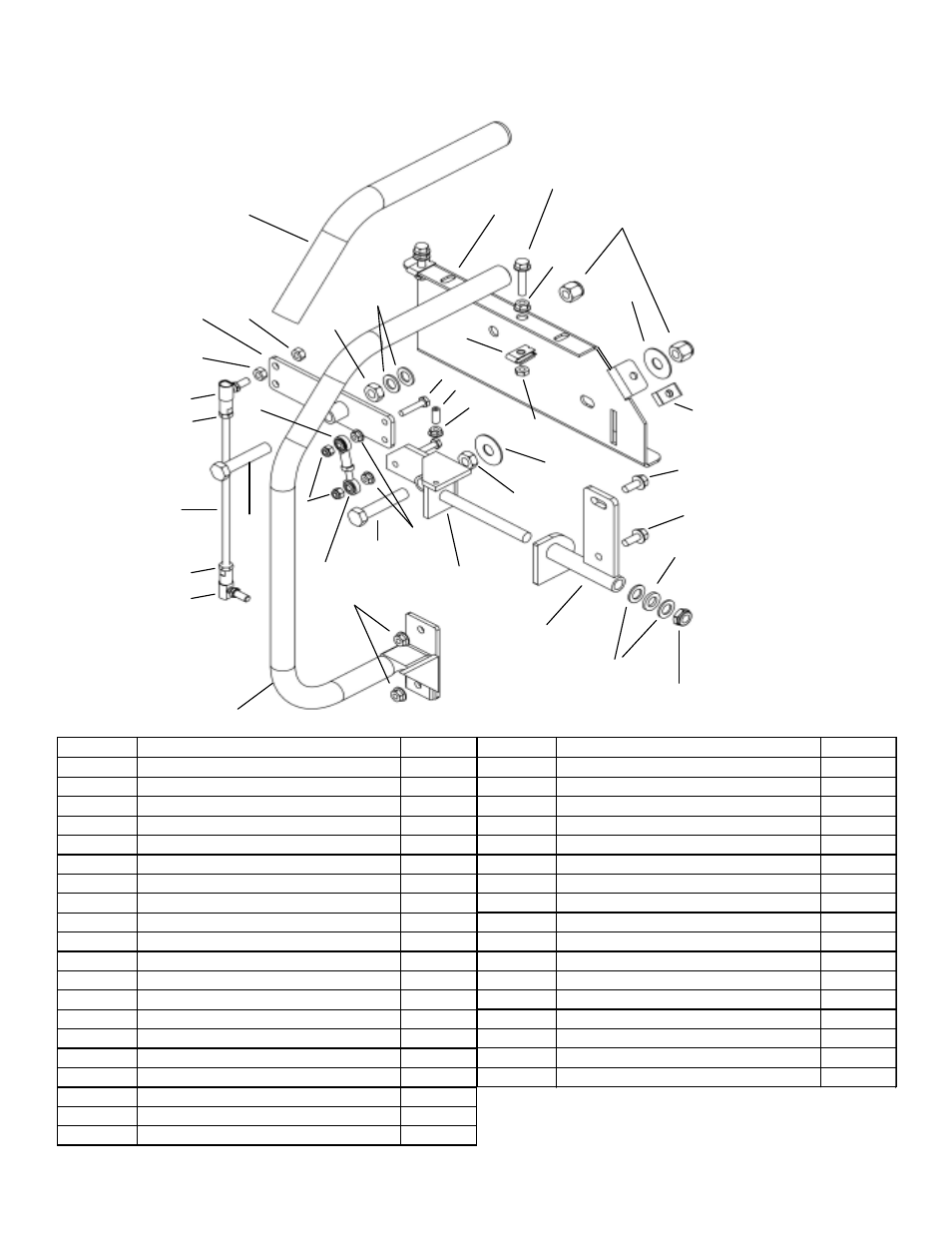

STEERING (RIGHT SIDE SHOWN)
18
Item # Description Part #
1 Directional Handle Grip 3673
2 Right Handle-Weldment 3839TK
Left Handle-Weldment 3846TK
3 5/16-18 X 3/4 Serr Flg Bolt NB596
4 5/16-18 Serrated Flange Nut NB170
5 1/2 NR Mach Bushing 14 GA NB177
6 1/2 ID X 7/8 OD X 1/8 Nylon Washer NB682
7 Right Handle Mount Weldment 3841TK
Left Handle Mount Weldment 3840TK
8 Pivot Plate Right Weldment 3699TK
Pivot Plate Left Weldment 3700TK
9 1/2-13 Nyloc Jam Nut NB688
10 1/2-13 2-Way Jam Lock Nut NB121
11 Washer TR150W
12 1/2-13 X 2 1/2 HCC GR5 ZP NB510
13 1/4 Rod End Male1/4-28 3721
14 1/4 Rod End Female 1/4-28 3708
15 1/4-20 Nylok Nut NB180
16 1/4-20 Flange Nut NB524
17 5/16-24 Hex Nut NB215
1
2
3
4
5
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
4
11
27
28
6
5
10
16
29
30
31
32
33
Item # Description Part #
18 5/16-24 ZP 2-Way Lock Nut NB448
19 1/4-20 X 1 1/4 HTC GR5 ZP NB103
20 Universal Pivot Plate Weldment 3698TK
21 Control Card Right 3621TK
Control Card Left 3620TK
22 Tinnerman Clips 5/16-18 Heavy Duty 3669
23 1/4-20 X 3/4 SSC Plain NB310
24 5/16-18 X 1 1/2 Flge Serr. Bolt NB254
25 5/16-18 ZP 2 Way Lock Nut NB558
26 1/2-13 Nyloc Nut NB281
27 Tinnerman Clip 5/16-18 3706
28 Left & Right Thread Rod NB262
29 Ball Linkage Right NB263
30 5/16-24 Jam Nut NB190
31 5/16-24 Jam Nut Left-Hand Thread NB265
32 Ball Linkage Left NB264
33 5/16-18 X 1 1/4 Serrated Flange Bolt NB253
