W1751 general wiring diagram, Se rv ic e – Woodstock W1751 User Manual

Page 41

background image

-39-

W1751 25" Wide-Belt Sander

SE

RV

IC

E

�

��

�

��

�

��

�

��

�

��

�

��

��

��

��

��

��

��

��

��

�

��

�

��

�

��

�

��

�

��

�

��

��

��

��

��

��

��

�

��

�

��

�

��

�

��

�

��

�

��

�

�

�

�

�

� ��

��

�

�

�

��

�

�

�

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

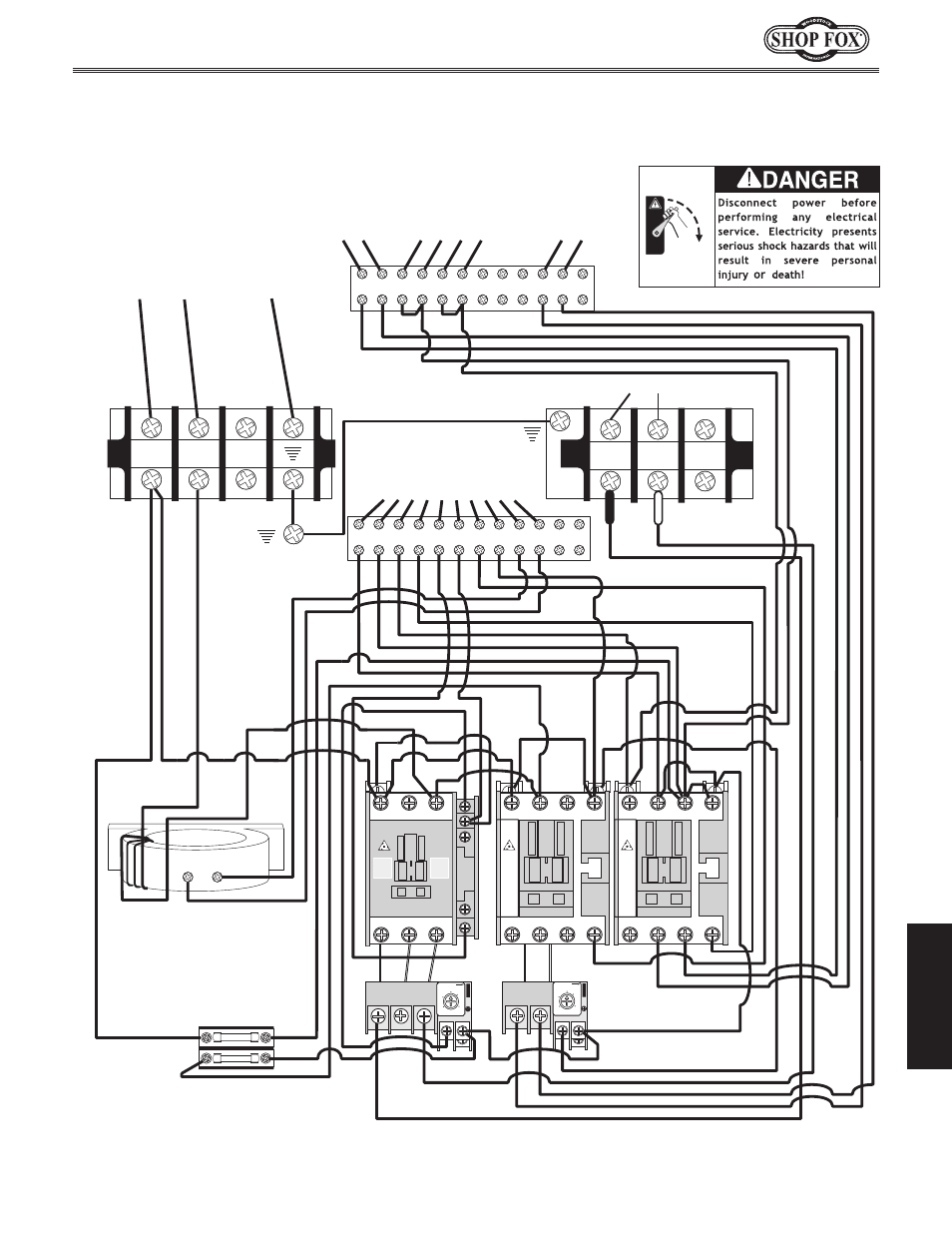

W1751 General Wiring Diagram
