Recording and Playback
Recording
This section describes the necessary settings and
operations to perform recording on this unit. The same
settings and operations apply whether you are using the
unit as part of an editing system, for dubbing, or as a stand-
alone recorder.
For the necessary connections for recording and the
settings not covered in this section, see Chapter 7
“Connections and Settings.”
Settings for Recording
Use the following procedure to make normal recording
settings on this unit connected with a player. To perform
normal recording, you need to set the REC MODE menu
item (see page 68) to NORMAL REC.
In addition to normal recording, this unit is capable of
continuous recording (see page 34), interval recording (see
page 34), and pre-alarm recording (see page 34).
REW PLAY F FWD STOP REC
INPUT VIDEO AUDIO V:SDTI SDTI i.LINK SDI SG SDI SG SDI SG
ANALOG CH-1 1/2
AES/EBU
dB 0
-12
-20
-30
-40
-60
OVER
2 4 CH-
dB 0
-12
-20
-30
-40
-60
OVER
1 3 CH-
OUTPUT VIDEO AUDIO HOURS MINUTES SECONDS FRAMES SDI SDTI COMPOSITE S VIDEO Y-R,B
COMPOSITE S VIDEO Y-R,B
CH 1/2
CH 3/4 PB F S 48K 44.1K 32K
U-BIT
TC NO
CL
EDIT
REC INHI
REPEAT COUNTER
SERVO
REC MODE 2CH 4CH VITC EDIT MODE REMOTE 9P i.LINK
ANALOG CH-2 3/4
AES/EBU
1
3
5
6
4
2
7

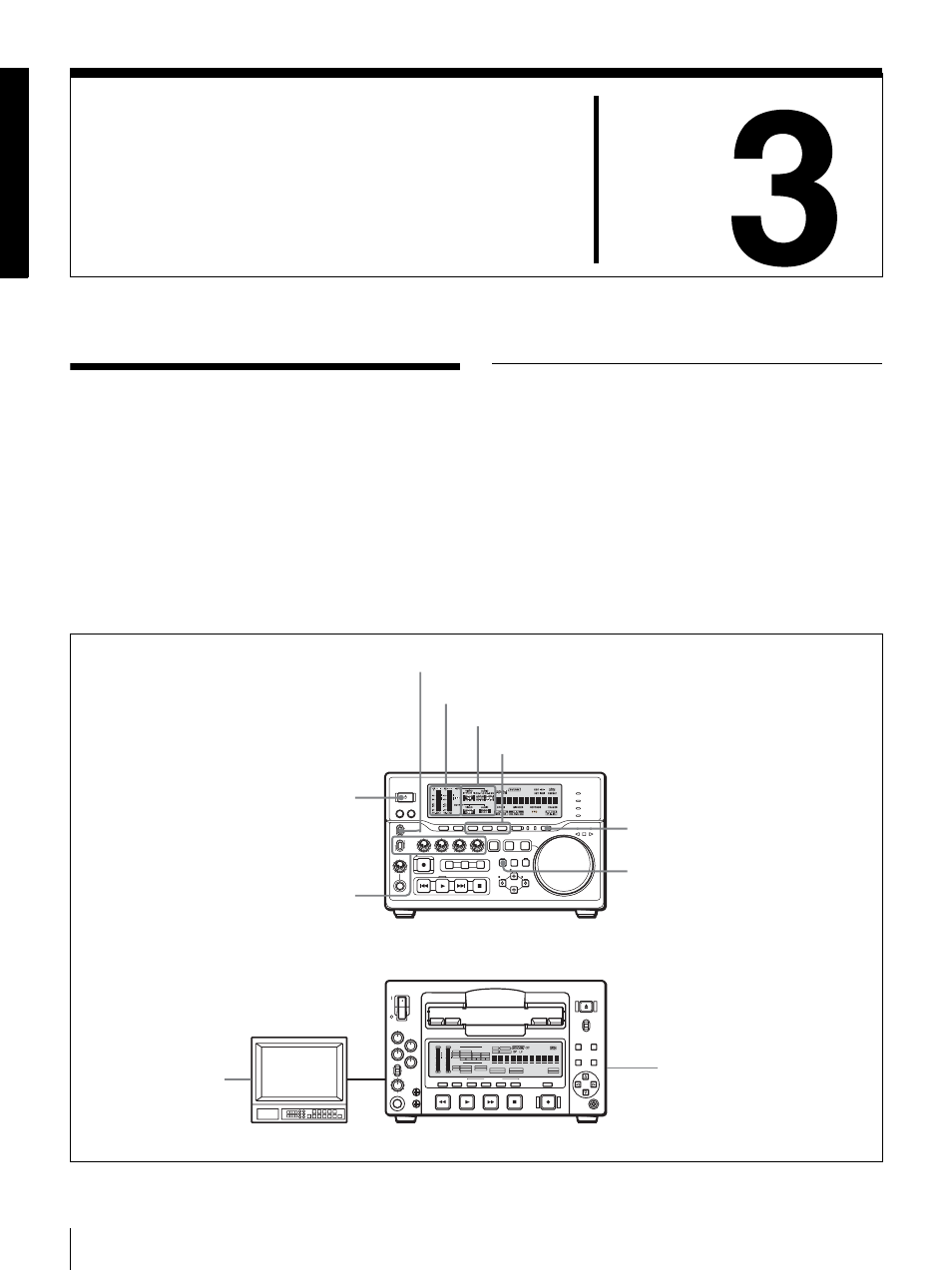

Control mode selector
