NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

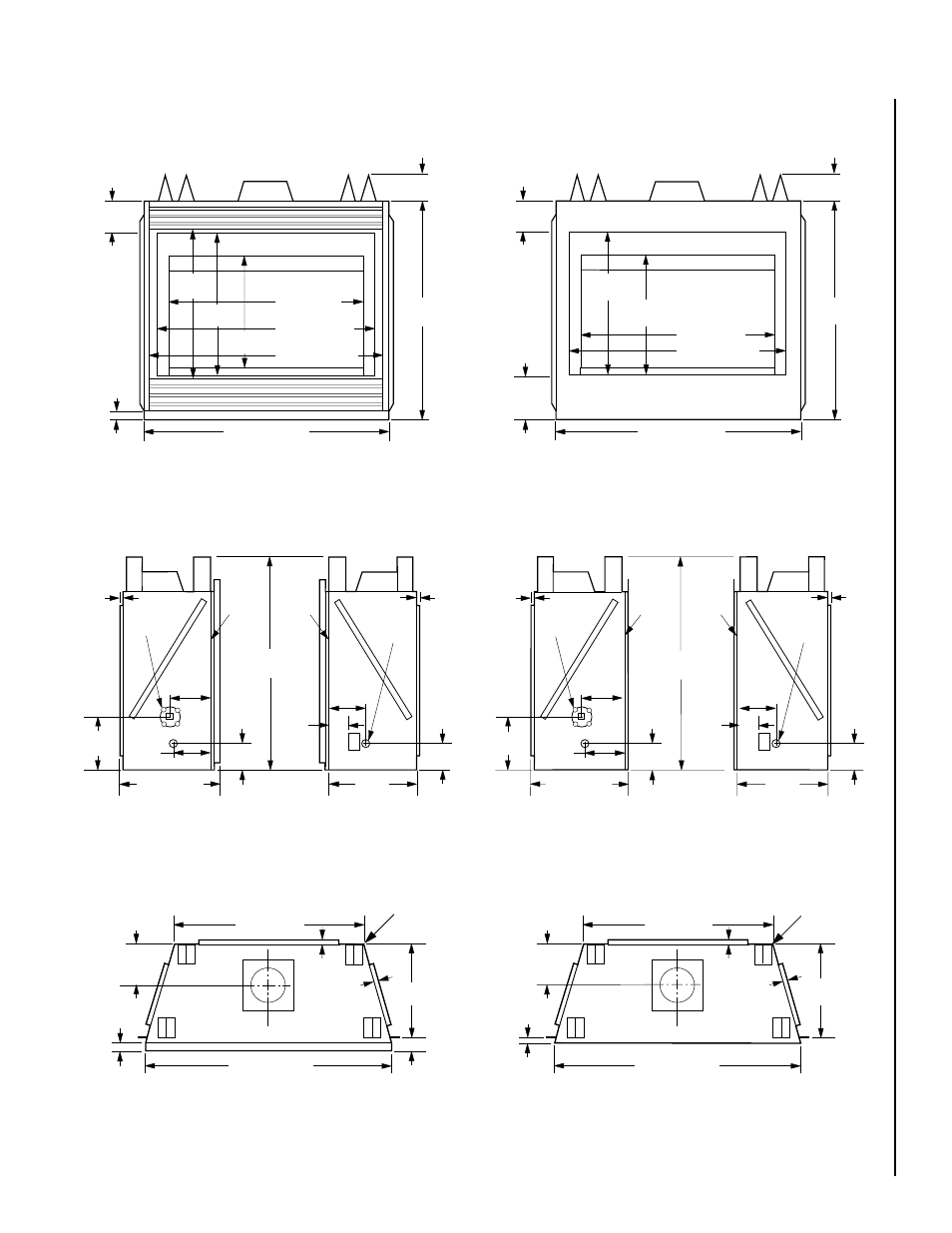

APPLIANCE SPECIFICATIONS GHC/GRD-6500
GHC-6500 GRD-6500
Figure 3
36 ¹⁄₄"
(921 mm)
4 ¹⁄₄"
(108 mm)
32" (813 mm)
40 ⁵⁄₈" (1032 mm)
1 ¹⁄₂"
(38 mm)
Front View
21 ¹⁄₂"
(546 mm)
37 ³⁄₄" (959 mm)
39 ⁷⁄₈" (1013 mm)
16 ¹⁄₄"
(413 mm)
21"
(533 mm)
36 ¹⁄₄"
(921 mm)
4 ¹⁄₄"
(108 mm)
21"
(533 mm)
32" (813 mm)
40 ⁵⁄₈" (1032 mm)
Front View
6 ¹⁄₂"
(165 mm )
8 ³⁄₄"
(222 mm)
17 ⁷⁄₈"
(454 mm)
4 ¹⁄₈"
(105 mm)
Right View
10 ¹⁄₂"
(267 mm)
20" (508 mm)
Left View
Gas Inlet
Line
7 ¹⁄₂"
(191 mm)
Combustion
Air Inlet
40 ¹⁄₂"
(1029 mm)
40 ¹⁄₂"
(1029 mm)
17 ⁷⁄₈"
(454 mm)
Right View
19" (483 mm)
Left View
17 ⁷⁄₈"
(454 mm)
31" (787 mm)
40 ⁵⁄₈" (1032 mm)
7 ³⁄₄"
(197 mm)
Top View
1"
(25.4 mm)
1 ⁵⁄₈"
(41 mm)
¹⁄₂"
(13 mm)
17 ⁷⁄₈"
(454 mm)
31" (787 mm)
40 ⁵⁄₈" (1032 mm)
7 ³⁄₄"
(197 mm)
Top View
⁵⁄₈"
(16 mm)
¹⁄₂"
(13 mm)
16 ¹⁄₄"
(413 mm)
5"
(127 mm)
6 ¹⁄₂"
(165 mm)
5"
(127 mm)
6 ¹⁄₂"
(165 mm)
Nailing
Flange
Nailing
Flange
4 ¹⁄₈"
(105 mm)
5"
(127 mm)
6 ¹⁄₂"
(165 mm)
10 ¹⁄₂"
(267 mm)
7 ¹⁄₂"
(191 mm)
5"
(127 mm)
6 ¹⁄₂"
(165 mm)
Gas Inlet
Line
Combustion
Air Inlet
Nailing
Flange
Nailing
Flange
6 ³⁄₈"
(162 mm)
¹⁄₂"
(13 mm)
Spacer
37 ³⁄₄" (959 mm)
Top Spacers (4) Top Spacers (4)
¹⁄₂"
(13 mm)
Spacer
¹⁄₂"
(13 mm)
Spacer
¹⁄₂"
(13 mm)
Spacer
¹⁄₂"
(13 mm)
Spacer
¹⁄₂"
(13 mm)
Spacer
