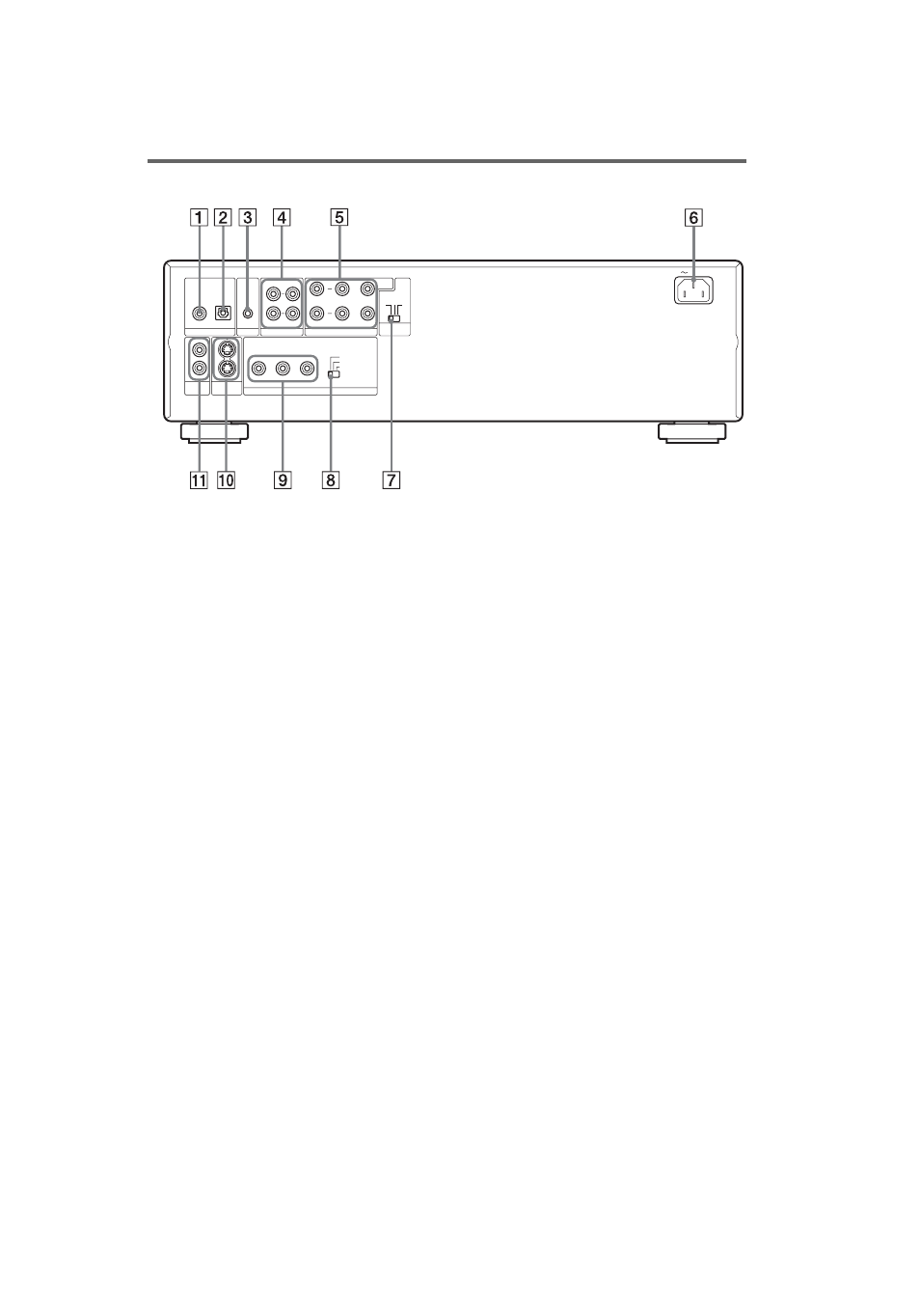

Rear panel
A DIGITAL OUT (COAXIAL) jack (23)
(24) (25)
B DIGITAL OUT (OPTICAL) jack (23)
(24) (25)
C S-LINK/CONTROL S IN jack (19)
D AUDIO OUT L/R 1/2 jacks (22) (23)
(24)
E 5.1CH OUTPUT jacks (25)
F AC IN terminal (16)
G COMMAND MODE switch (1, 2, 3)
(17)
H COMPONENT VIDEO OUT/SCAN
SELECT switch (72)
I COMPONENT VIDEO OUT (Y, P
B
,
P
R
) jacks (18)
J S VIDEO OUT 1/2 jacks (18)
K VIDEO OUT 1/2 jacks (18)
SELECTABLE
INTERLACE
PROGRESSIVE
SCAN SELECT
COMPONENT VIDEO OUT
P R P B Y
S VIDEO
OUT
2
1
VIDEO
OUT
2
1
AC IN
5.1CH OUTPUT
FRONT REAR WOOFER
CENTER
L
R
1 2 3
COMMAND
MODE
L
R
AUDIO OUT
1 2
S-LINK
CONTROL S
IN
DIGITAL OUT
PCM/ DTS/DOLBY DIGITAL
COAXIAL OPTICAL
c continued
