Thread the speaker cord through the hole in the base and post.
The connector and color tube of the speaker cords are the same color as the label of the jacks to be
connected.
Use the speaker cords as follows:
• Front left speaker (L): White
• Front right speaker (R): Red
• Surround left speaker (L): Blue (DAV-HDX686W only)
• Surround right speaker (R): Gray (DAV-HDX686W only)
Be careful with the orientation of the post. Thread the speaker cord into the end of the post that has
two holes.

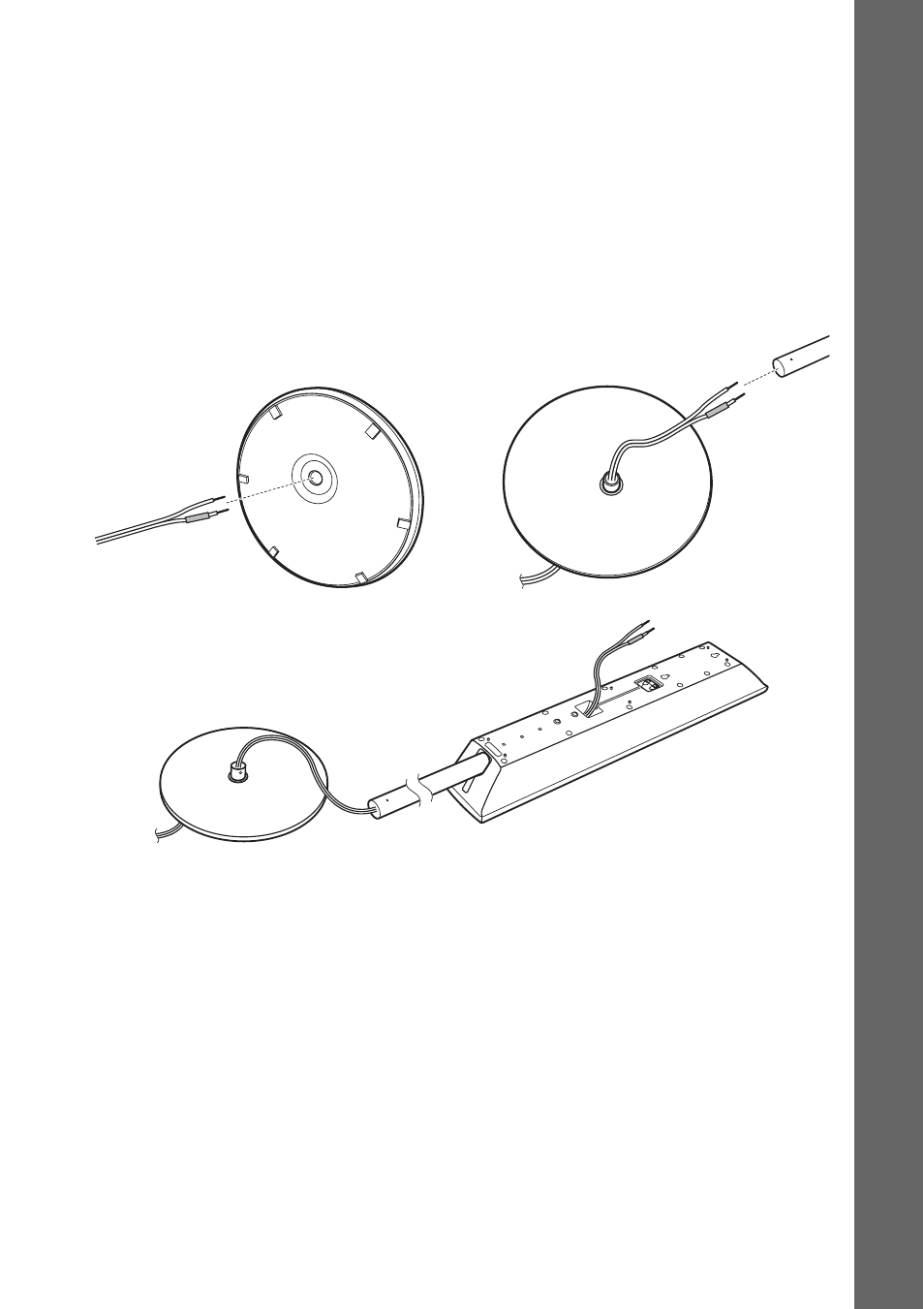

Speaker cord
Bottom of the base
,
Post
,
Base
Rear of the speaker
Top of the base
