Hookups and Settings
When unpacking, check the supplied accessories by referring to page 45.
b
• Plug cords securely to prevent unwanted noise.
• Refer to the operating instructions supplied with the components to be connected.
• Be sure to disconnect the power cord of each component before connecting.
Step 1: Connecting to Your TV

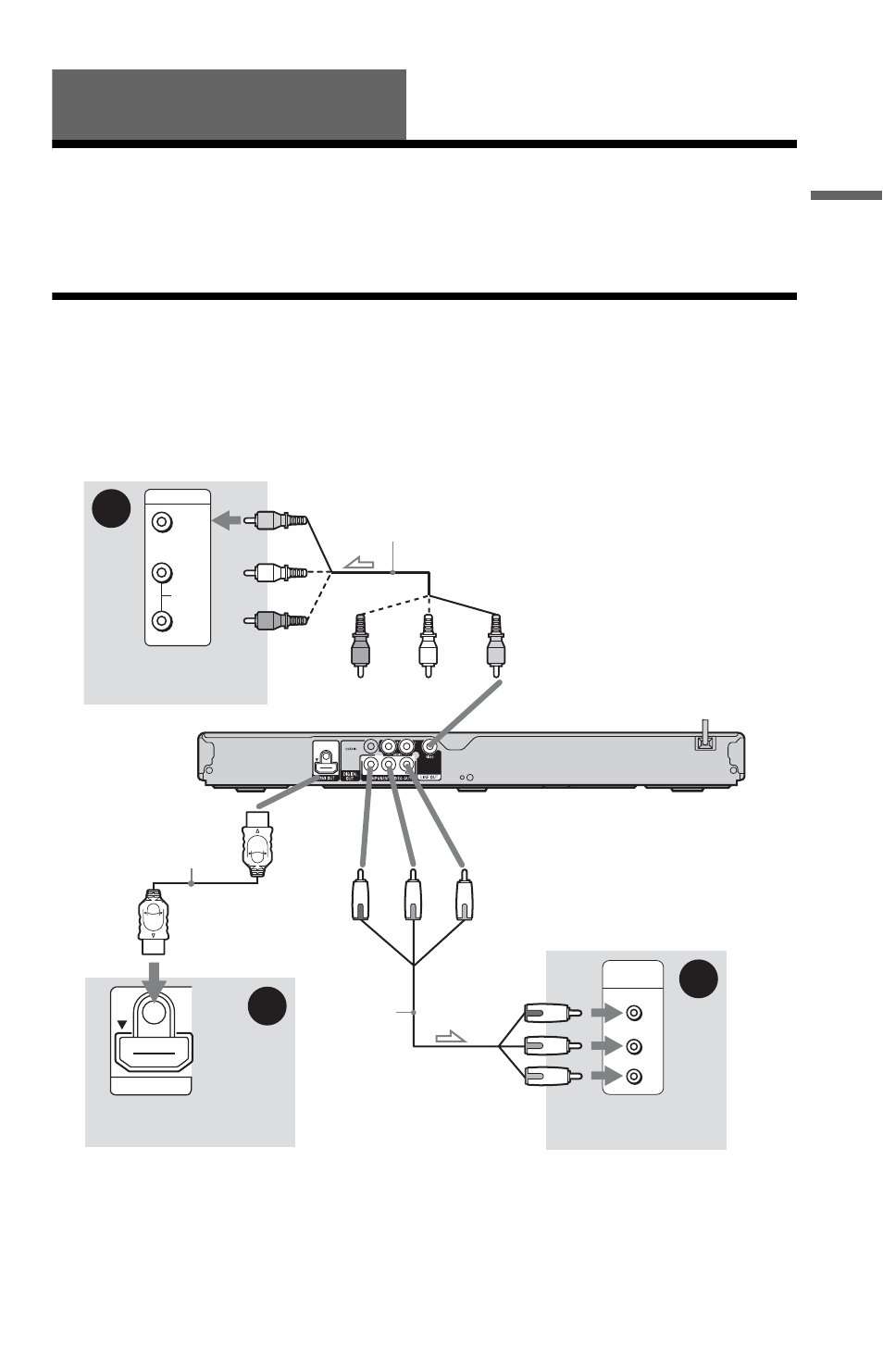

Connect this player to your TV using a video cord. Select one of the patterns A through C,
according to the input jack on your TV.
In order to view progressive signal (480p) pictures with a compatible TV, you must use pattern
B
. Select pattern C when connecting to a TV equipped with HDMI input.
A
VIDEO
AUDIO
INPUT
L
R
P
R
P
B
Y
COMPONENT
VIDEO IN
B
HDMI IN
C
Audio/video cord (supplied)
Component
video cord
(not
supplied)
(yellow)
TV
(green)
TV
(red)
(green)
(blue)
(red)
to LINE OUT (VIDEO)
l : Signal flow
CD/DVD player
to COMPONENT
VIDEO OUT
(blue)
(yellow)
(white)
(red)
(white)
(red)
to HDMI OUT
TV
HDMI cord
(not supplied)
,continued
