Sanyo DP37649 User Manual
Page 3
5
4
Need help?
www.sanyoctv.com
1-800-877-5032
Need help?
www.sanyoctv.com
1-800-877-5032
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . 2
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
THINK GAIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
DISPOSAL PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .3
CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PROTECTING THE LCD SCREEN . . . . . . . . . . . . . . . . . . . . .4
HANDLING PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . .4
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
STAND REMOVAL / WALL MOUNTING . . . . . . . . . . . . . . .5
GETTING STARTED—
Remote Control Battery Installation . . . . . . . . . . . . . . . .5
Antenna Connections for off-air or cable . . . . . . . . . . .5
Remote Control operation . . . . . . . . . . . . . . . . . . . . . . . .6
BACK PANEL JACKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
A/V CONNECTIONS—
Composite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HDMI / DVI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Analog Audio / Digital Audio . . . . . . . . . . . . . . . . . . . . . .9
POWER CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
INITIAL CHANNEL SEARCH . . . . . . . . . . . . . . . . . . . . . . . .10
ON-SCREEN MENU OPERATION—
Manual Channel Search . . . . . . . . . . . . . . . . . . . . . . . .11
Channel Scan Memory . . . . . . . . . . . . . . . . . . . . . . . . . .11
Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Digital Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Energy Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
V-Guide (Parental Control) . . . . . . . . . . . . . . . . . . . . . . .13
Picture / Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
HELPFUL HINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

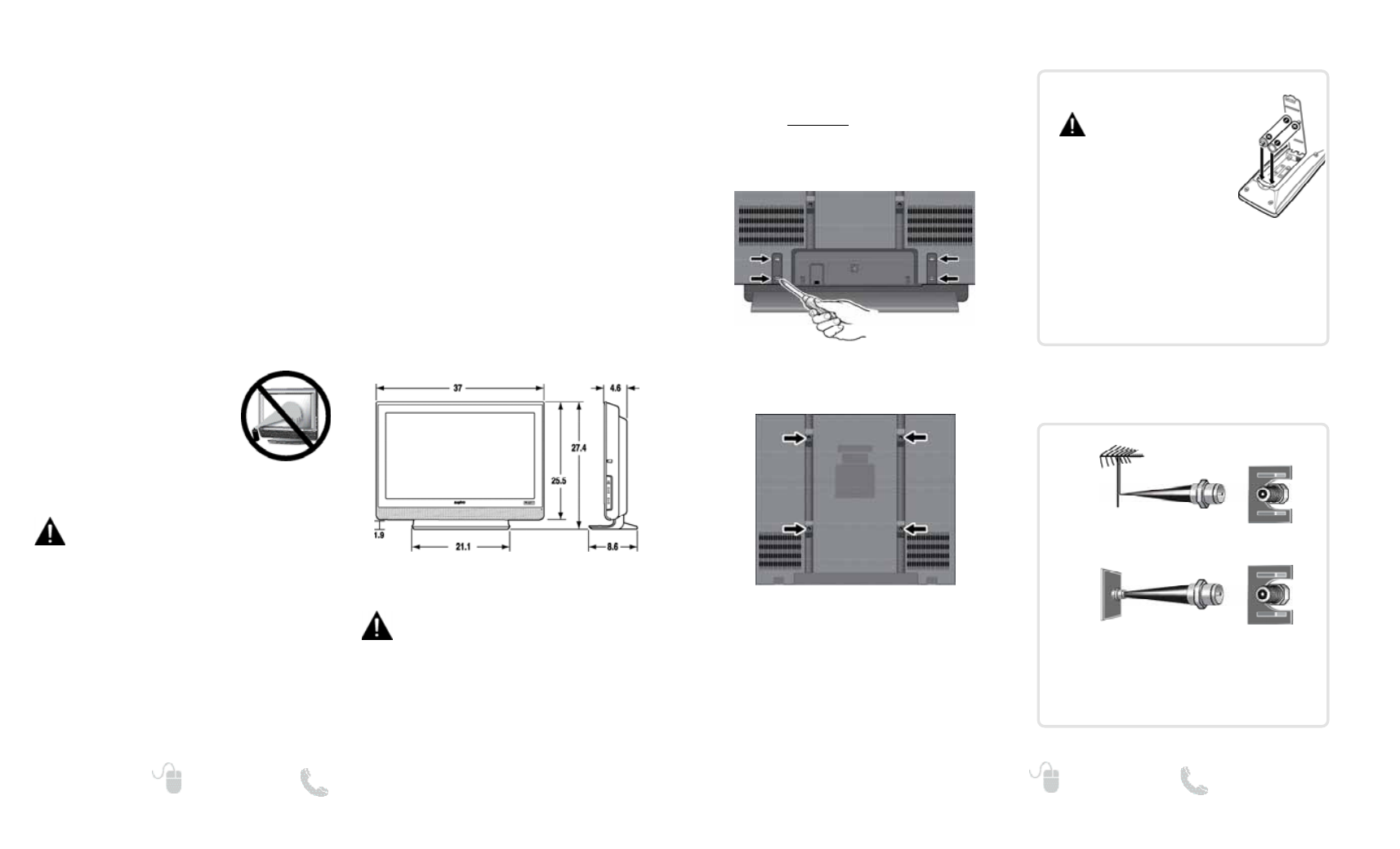

1
Remove the four (4) screws securing the foot
stand. CAUTION: Hold the stand firmly as you
remove the last screw.
2
Use the four (4) screws that are threaded into
the wall mounting inserts on the back of your
HDTV to secure it to a wall mounting kit. (kit
not included)
VESA standard interface: 200 x 200
Mounting screws measurements:
M6 (6mm) Diameter, Length—16mm (maximum)
STAND REMOVAL AND WALL
MOUNTING
(OPTIONAL)
SPECIFICATIONS
Power Requirement: AC 120V, 60Hz
AC Power Consumption: 180 W
Tools Needed: Phillips screwdriver
IMPORTANT NOTE:
Place HDTV face down on a padded or cushioned
flat surface to protect the screen and finish.
Wall mounting of the HDTV must be performed
by a skilled person.
GETTING STARTED —
Install batteries in the remote control
( 2 “AAA”, not included)
PRECAUTIONS
To ensure safe operation, please
observe the following precautions:
• Replace both batteries at the same
time. Do not use a new battery
with a used battery.
• There’s a risk of explosion if a battery is replaced by
an incorrect type.
• Do not expose the Remote Control unit to moisture
or heat.
• Be sure to match the “+” and “
–
” signs on the
batteries with marks inside the remote control.
PROTECTING THE LCD SCREEN
The screen can be damaged if it is not maintained
properly. Do not use hard objects such as hard
cloth or paper. Do not use exces-
sive pressure when cleaning the
screen; excessive pressure can
cause permanent discoloration or
dark spots.
NEVER spray liquids on the
screen.
HANDLING PRECAUTIONS
•
Handle by the cabinet only. Never touch the
screen when handling.
•
Excessive pressure on the screen can cause
permanent discoloration or dark spots.
•
Handling damage is not covered under warranty.
POSITIONING THE LCD
HDTV
Always use a firm-flat surface when positioning
your HDTV.
Do not position the unit in a confined area.
Allow adequate space for proper ventilation.
The tuner in this HDTV can receive:
• Digital and Analog off air signals from an antenna
• Analog or ClearQAM cable channels from a direct
Cable TV connection.
ANTENNA CONNECTION FOR
OFF-AIR SIGNALS OR CABLE
ANTENNA
CABLE
ANALOG / DIGITAL
ANTENNA IN
BATTERY INSTALLATION
DP37649
