Sterling Plumbing ENSEMBLE 76121120 - Manual (Page 2)

Technical Information
Fixture*:
Basin area:
Bathing well
42 ″ (106.7 cm) x 20″ (50.8 cm)
Top area 54 ″ (137.2 cm) x 26″ (66 cm)
To overflow:
Water depth
13-3/4 ″ (34.9 cm)
Capacity 55 gal (208.2 L)
* Approximate measurements for comparison only.
Pump: V Hz A
1-speed 120 60 7
Model door maximum
width door maximum
height
76121110
76121120 *57-11/16 ″
(146.5 cm)
*NA
* Varies with alternative walls.
Required Electrical Service
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI):
Pump/Control
120 V, 15 A, 60 Hz
Installation Notes
Install this product according to the installation guide.
Pump is supplied with a grounding-type plug-in cord. Locate
the outlet behind the whirlpool, and within 24
″
(61 cm) of the pump.
Do not disassemble the pump or piping as this could void the
warranty.
Size the drain cutout to fit the drain assembly that will be
used.
2" (5.1 cm)
3-1/2"
(8.9 cm)
4" (10.2 cm)
30" (76.2 cm)
8" (20.3 cm)
16" (40.6 cm) 14" (35.6 cm) 6" (15.2 cm) (Typical)
2" (5.1 cm) D. Drain
Drain Cutout
Overflow Detail
2-7/8" (7.3 cm)
18" (45.7 cm)
60" (152.4 cm)
20" (50.8 cm)
21" (53.3 cm)
60-1/8" (152.7 cm) Min
60-1/4" (153 cm) Max
8-1/2"
(21.6 cm)
15-1/2"
(39.4 cm)
8-1/2"
(21.6 cm)
22-1/2"
(57.2 cm)
Pump Motor
Location
33-1/4"
(84.5 cm)
32"
(81.3 cm)

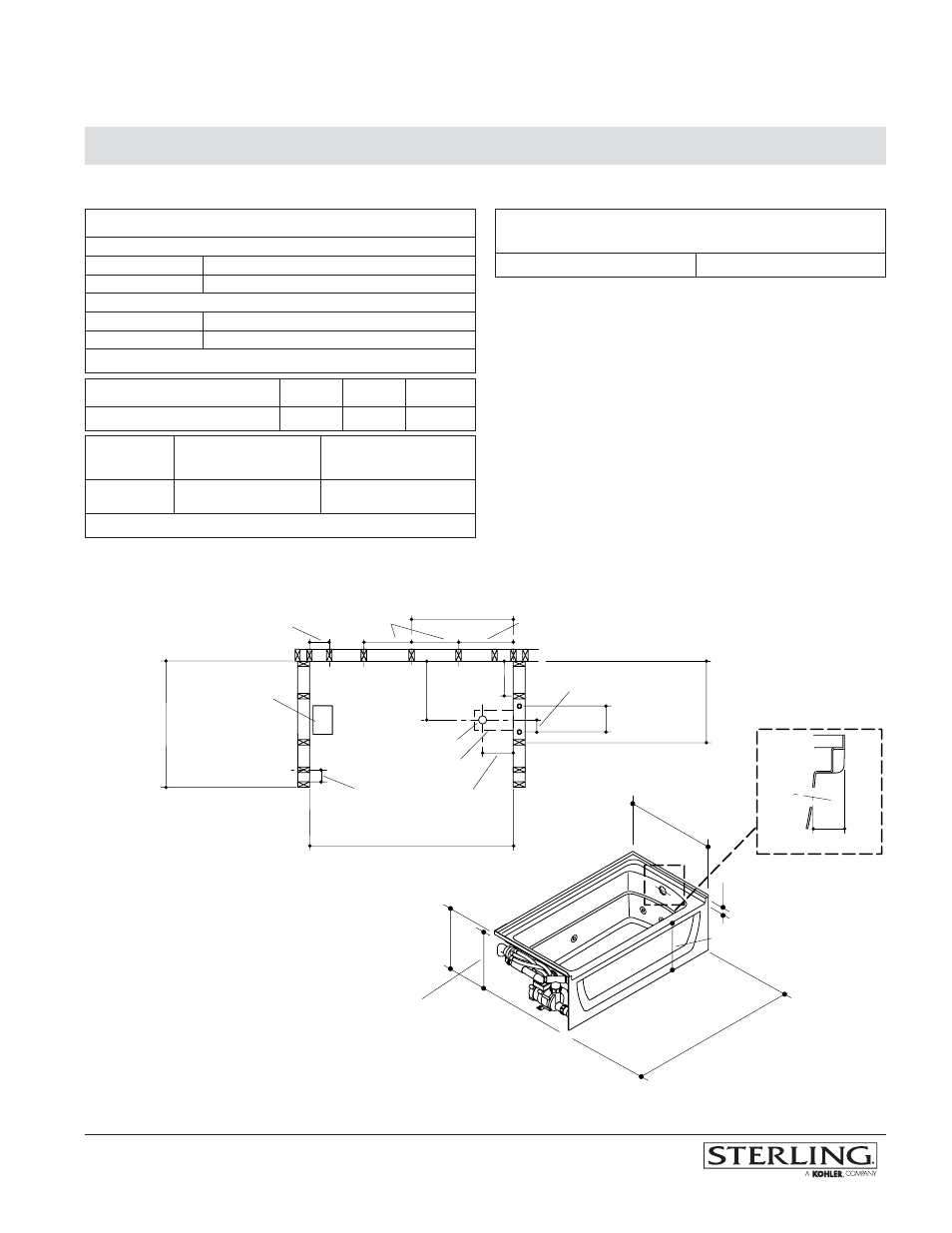

Product Diagram
ENSEMBLE
TM
ENSEMBLE
TM
32
″ (81.3 cm) WHIRLPOOL BATH
Page 2 of 2
1038459-4-
F
