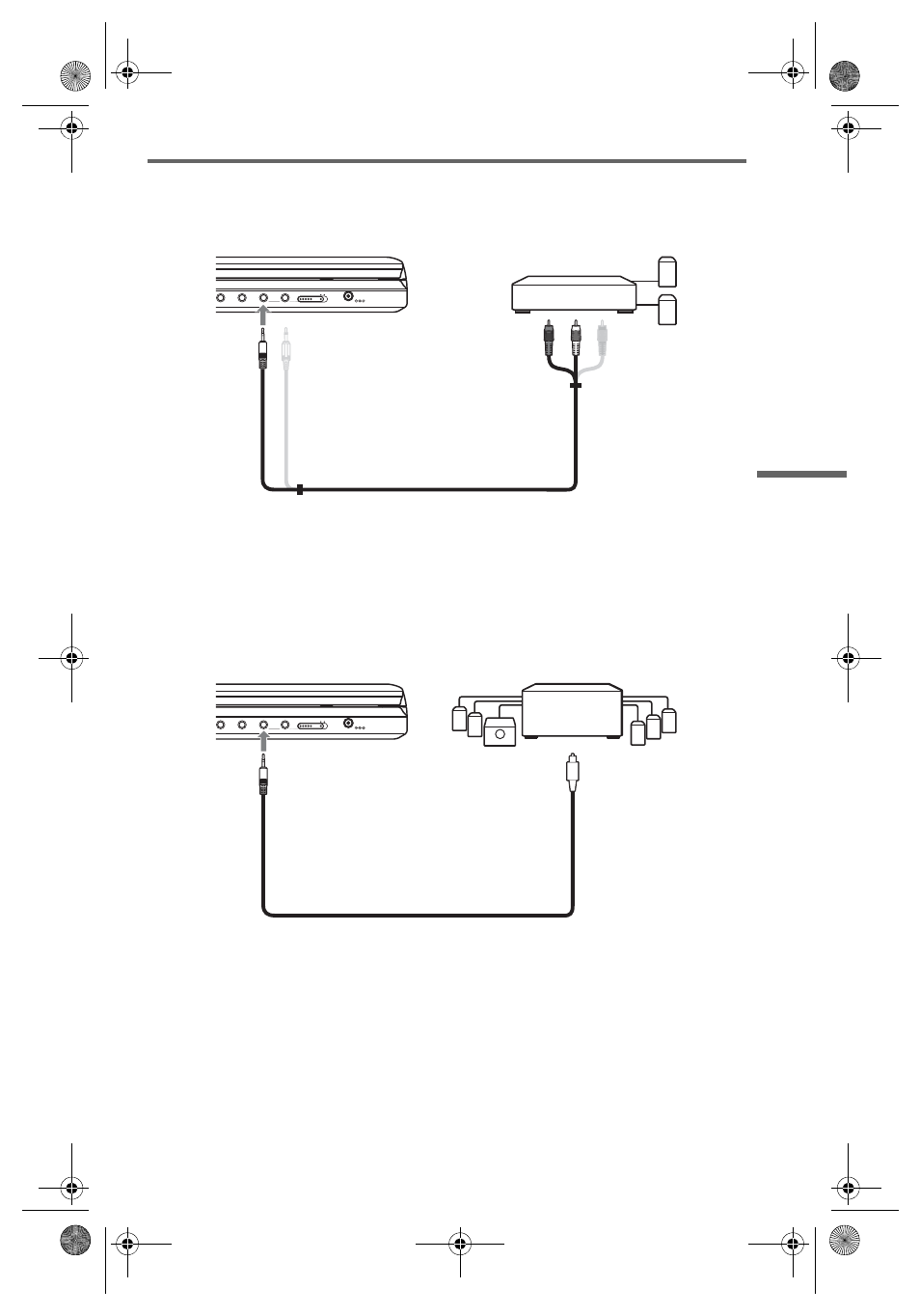

Connecting to an AV amplifier (receiver)
Example 1
To send analog audio signal to an AV amplifier (receiver)
1
Set the LINE SELECT switch on the player’s right side to “OUT.”
* The yellow plug is used for video signals (page 34).
Example 2
To send digital audio signal to an AV amplifier (receiver)
1
Set the LINE SELECT switch on the player’s right side to “OUT.”
2
Set “Digital Output” to “On” in “Audio Setup” (page 30).
DC IN
9.5V
AUDIO VIDEO PHONES
OPTICAL
OUT
A B
LINE SELECT IN OUT
Stereo amplifier
To AUDIO
Audio/video cord (supplied)
To AUDIO input
DC IN
9.5V
AUDIO VIDEO PHONES
OPTICAL
OUT
A B
LINE SELECT IN OUT
Amplifier with Dolby Digital
or DTS decoder
To OPTICAL OUT
Optical digital cord (not supplied)
To AUDIO input
,continued
