Page 20 SERIES 28HE BOILER INSTALLATION AND OPERATION INSTRUCTIONS

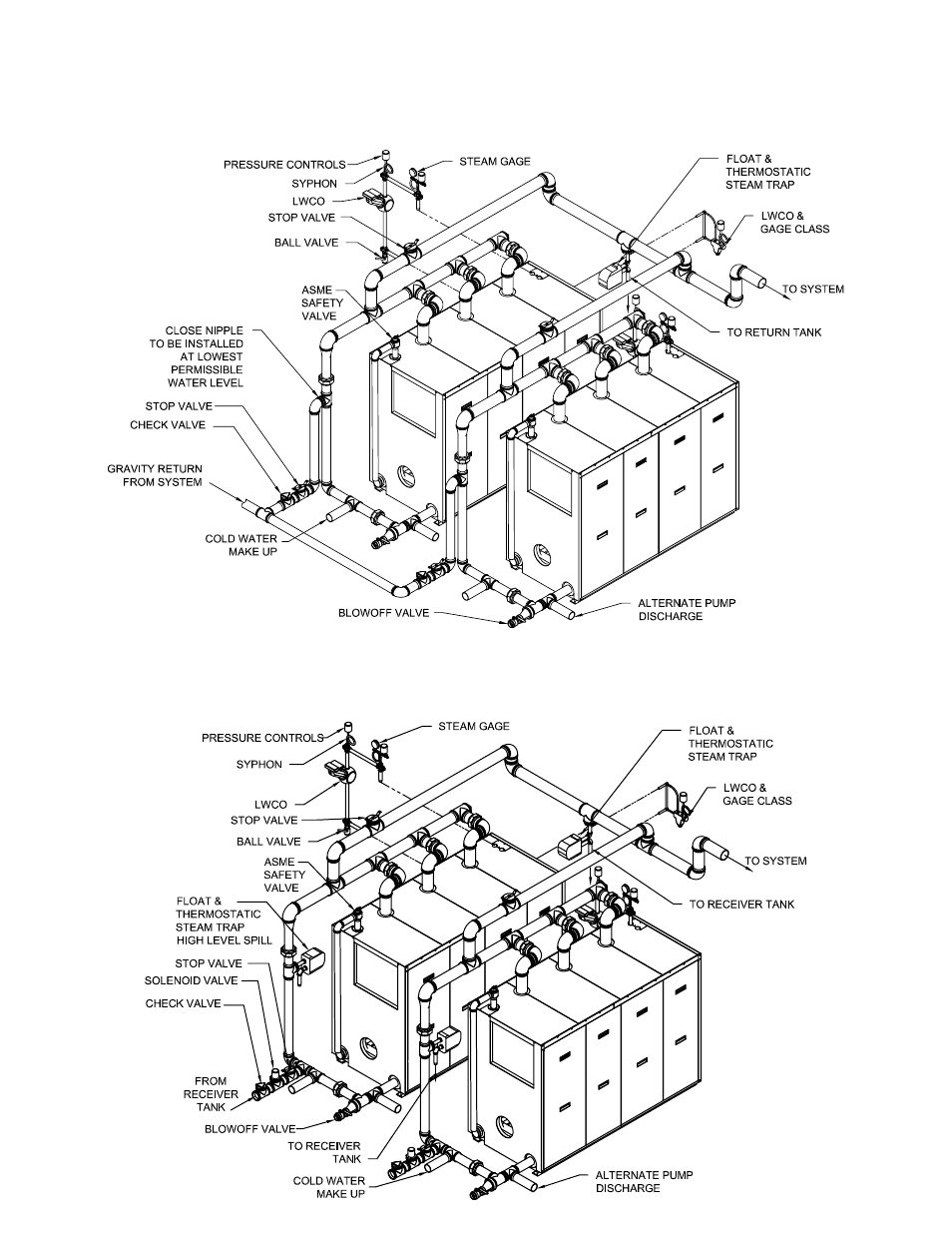

Figure 23 - Typical Steam Piping - Gravity Return for Multiple Boilers
Figure 24 - Typical Steam Piping - Pumped Return for Multiple Boilers
