Page 17 SERIES 28HE BOILER INSTALLATION AND OPERATION INSTRUCTIONS

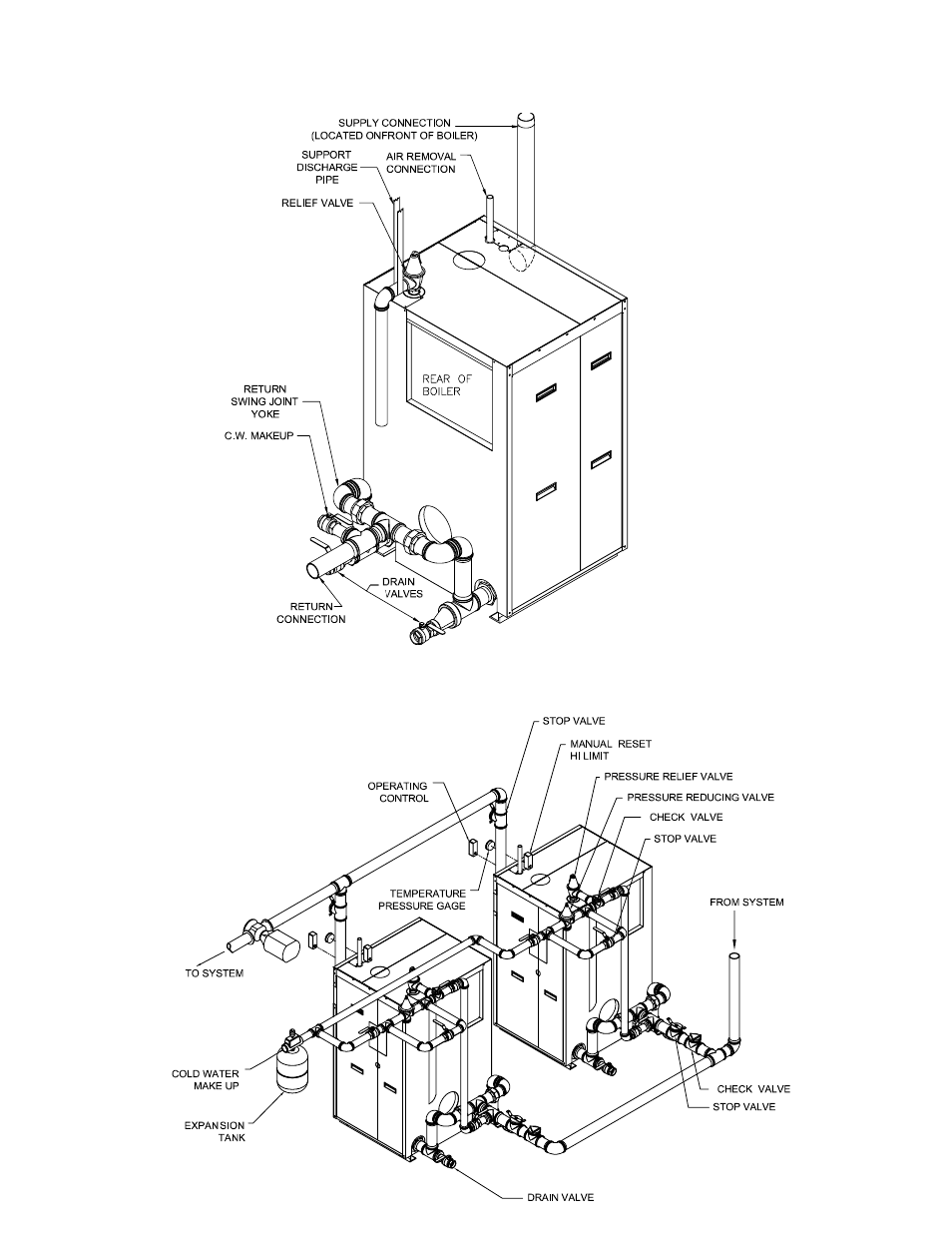

Figure 19 -
Typical Single
Water Boiler Piping
Figure 20 - Typical Multiple Water Boiler Piping
