Cutting performance of your machine
depends a great deal on proper cut-
ter blade adjustment. Properly adjusted
blades will oscillate freely yet help pre-
vent binding of cut material between
blades. Adjust blades as follows:
Loosen all blade locknuts at least 1.
one full turn.
Tighten each blade shoulder bolt
2.
firmly, and then loosen the shoulder
bolts 1/4 to 1/2 turn.
Locknut
Guide Bar
Cutter
Blades
Shoulder Bolt
Washer (should
turn freely)

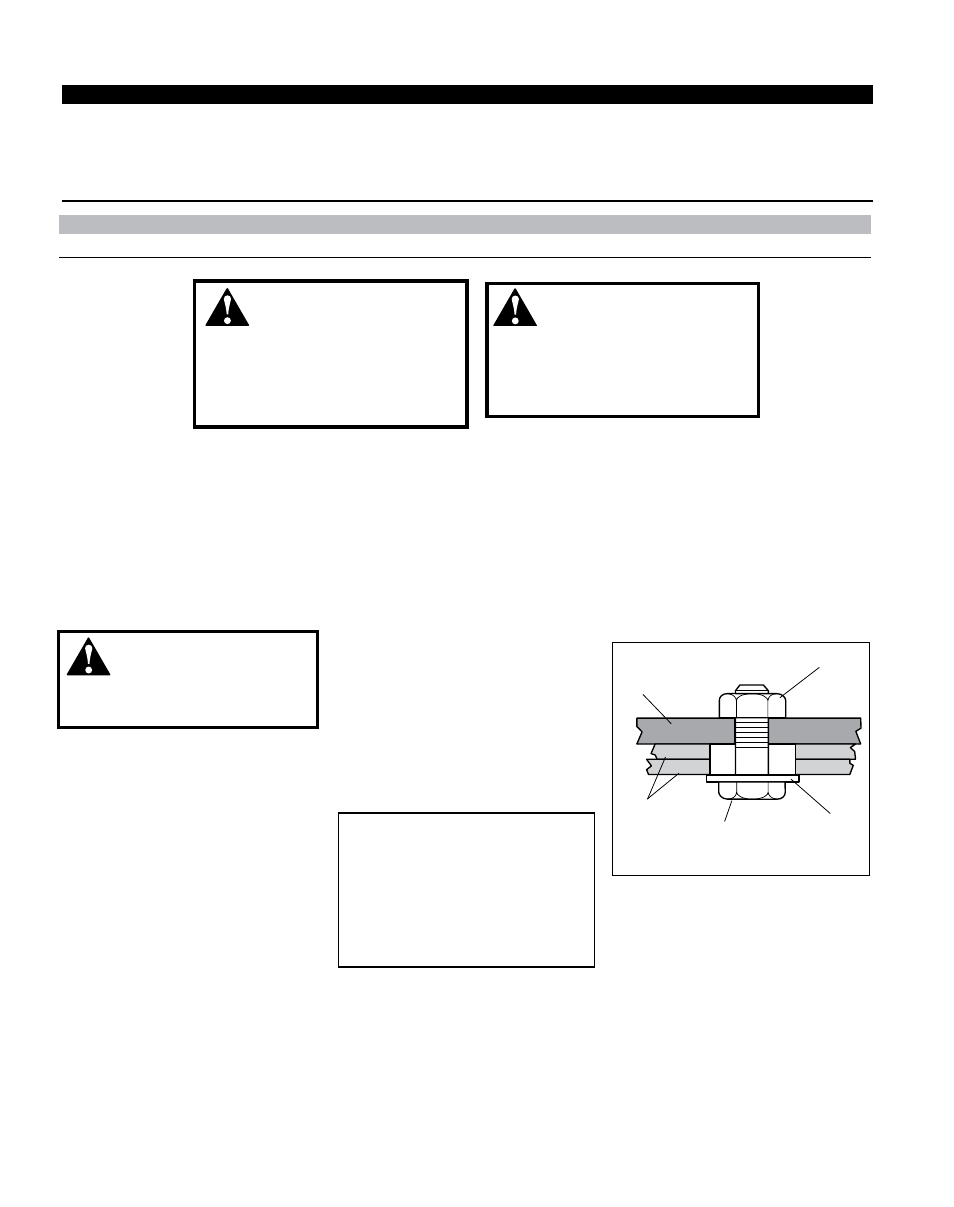

Adjusting cutter blades
Cutter blade adjustment
Working from the gearcase end, lock 3.
each bolt in place by firmly tighten-
ing its locknut while preventing the
shoulder bolt from turning.
When shoulder bolt adjustment is cor-
rect, there should be a gap of 0.25–0.50
mm between the cutter blades and the
flat washers, and the flat washer beneath
each bolt head should turn freely.
WARNING!
The cutter blades are very
sharp! Always wear gloves when
working around the cutter assembly.
CAUTION!
Operating the trimmer with worn
or improperly adjusted cutters will
reduce cutter performance and may
also damage your machine. Never
operate the machine with damaged
or worn cutters.
WARNING!
Before performing any mainte-
nance, repair, or cleaning work on the
unit, make sure the engine and cutting
attachment are completely stopped.
Disconnect the spark plug wire before
performing service or maintenance.
WARNING!
Non-standard accessories, cut-
ting attachment, or replacement parts
may not operate properly with your unit
and may cause damage and lead to per-
sonal injury.
IMPORTANT!
MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY
ANY REPAIR ESTABLISHMENT OR INDIVIDUAL; HOWEVER, WARRANTY REPAIRS MUST BE PERFORMED BY A DEALER
OR SERVICE CENTER AUTHORIZED BY ECHO, INC. THE USE OF PARTS THAT ARE NOT EQUIVALENT IN PERFOR-
MANCE AND DURABILITY TO AUTHORIZED PARTS MAY IMPAIR THE EFFECTIVENESS OF THE EMISSION CONTROL
SYSTEM AND MAY HAVE A BEARING ON THE OUTCOME OF A WARRANTY CLAIM.
General maintenance
NOTE:
Using non-standard replacement parts could invalidate your Shindaiwa warranty.
Muffler
This unit must never be operated with a faulty or missing
spark arrester or muffler. Make sure the muffler is well
secured and in good condition. A worn or damaged muffler
is a fire hazard and may also cause hearing loss.
Spark Plug
Keep the spark plug and wire connections tight and clean.
Fasteners
Make sure nuts, bolts, and screws (except carburetor
adjusting screws) are tight.
