52
English
Other Information

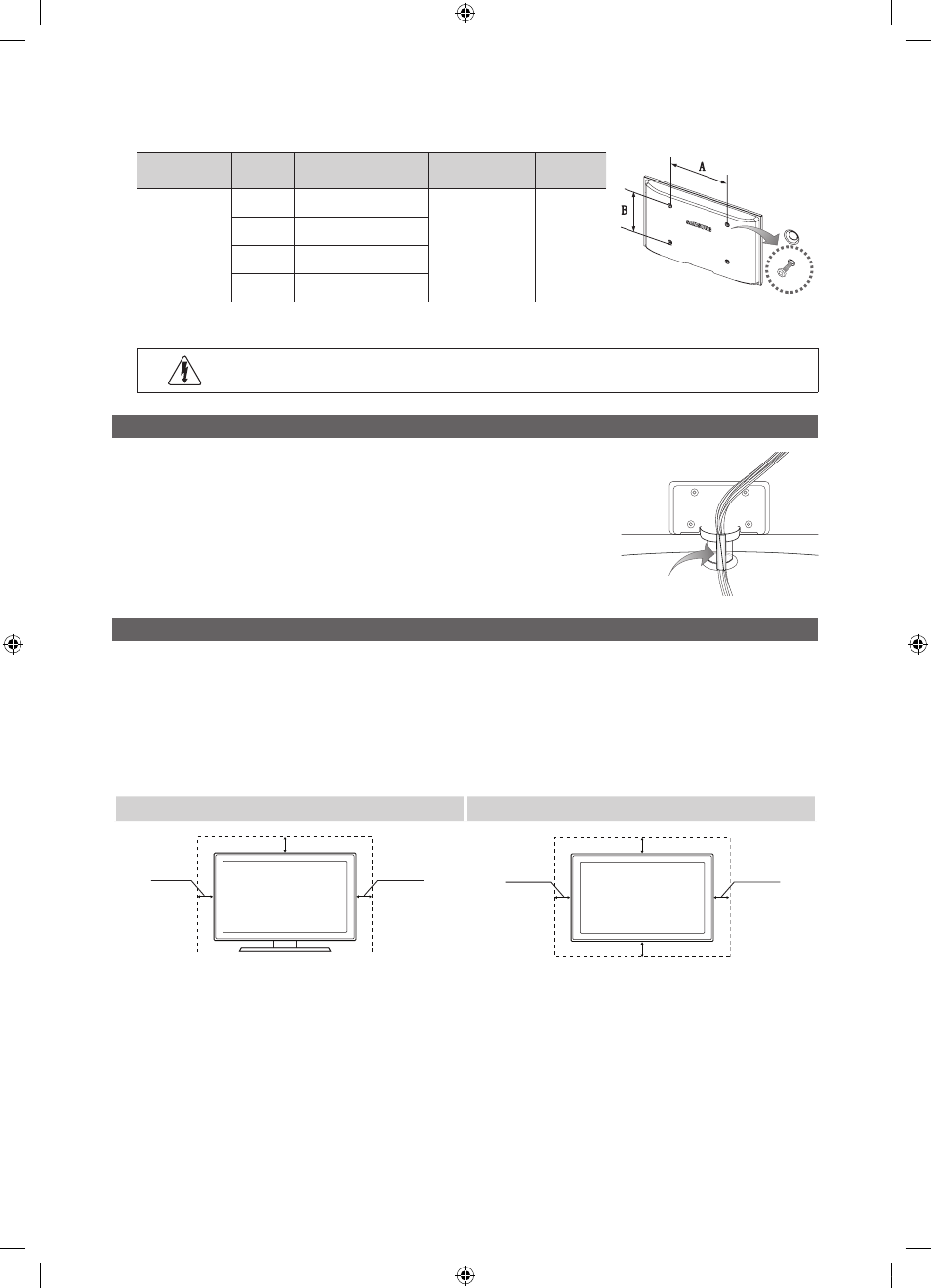

Product Family inches VESA Spec. (A * B) Standard Screw Quantity
PDP TV
42~50 400 X 400
M8 4
58~63 600 X 400
70~79 800 X 400
80~ 1400 X 800
✎
Unscrew the hole around before installing Wall-Mount on the wall.
Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to
electric shock.
Assembling the Cables
Enclose the cables in the Cable tie so that the cables are not visible through the
transparent stand. Overly rigid or thick cables can damage input jacks over long
term use.
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
✎
When using a stand or wall-mount, use parts provided by Samsung Electronics only.
x If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the
product falling.
✎
The appearance may differ depending on the product.
✎
Be careful when you contact the TV because some parts can be somewhat hot.
Installation with a stand. Installation with a wall-mount.
4 inches
4 inches 4 inches 4 inches
4 inches
4 inches
4 inches
Cable Tie
