CONNECTING WITH EXTERNAL DEVICES (Continued)
Outputting video and audio (video output)

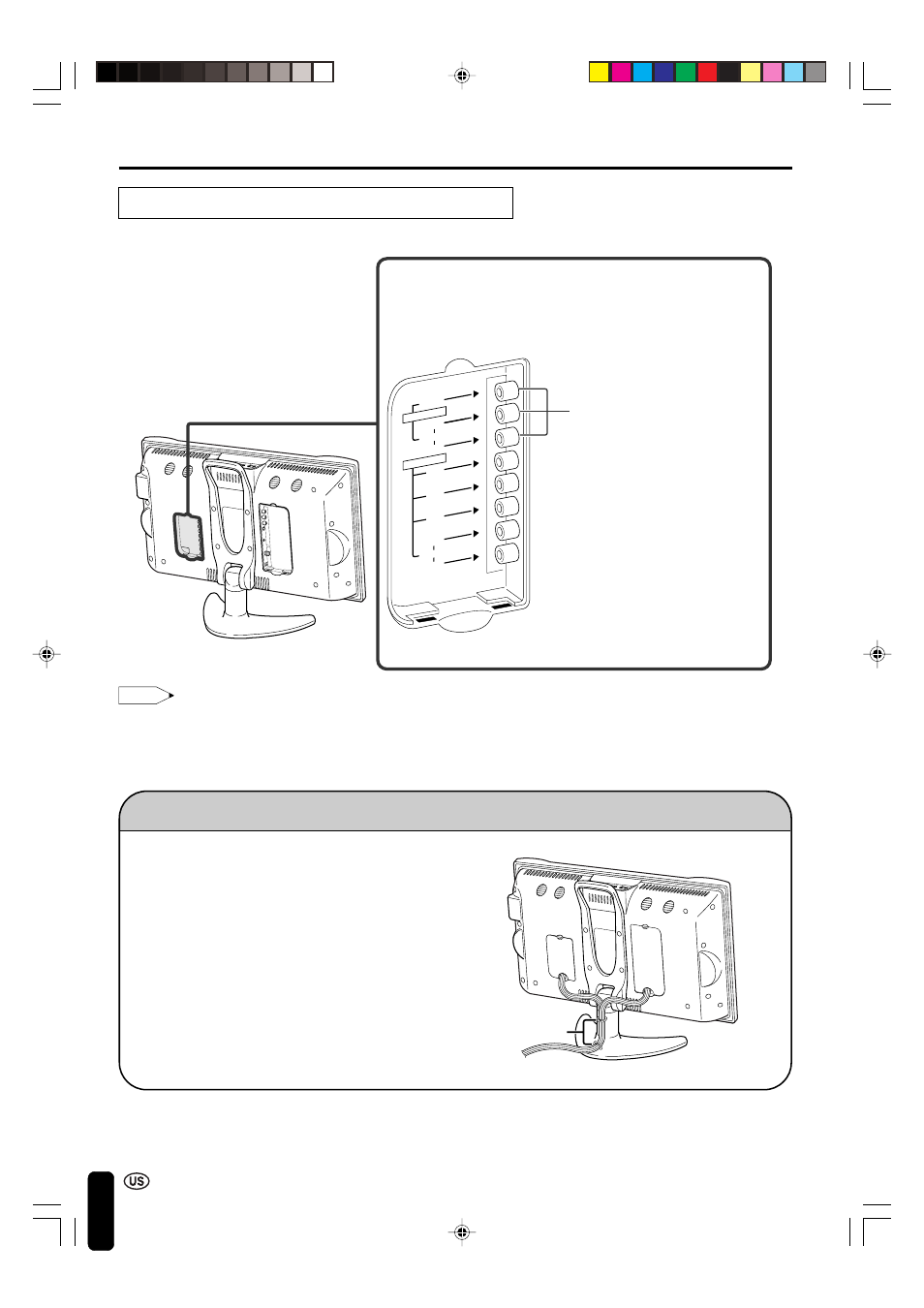

You can output video and audio data from the TV set through the AV output terminals (AV-OUT).
Note:
● AV2 has 2 OUT modes (see page 24).
● When using the S-Video input for AV-IN1, no video output will be made to the AV output terminal, but audio
output will be made for connection to external audio systems.
● It is impossible for card images to video output.
Connect a VCR,
Audio amplifier,
etc.
How to fix the cables
• Fix cables and cords with the attached cable
clamps so that they do not get caught when
mounting the cover.
• Connect the cables and cords after fixing the
cable clamps (2 positions).
VOL CH MEN UTV /VIDEO MA IN P OW ER
Cable clamps
VIDEO
AUDIO
L
Y
P B
P R
R
AUDIO
L
R
COMPONENT
AV-IN2/OUT
VOL CH MEN UTV /VID EO MAIN POW ER
