REPLACEMENT OF THE TERMINAL
Figure 1
Figure 2

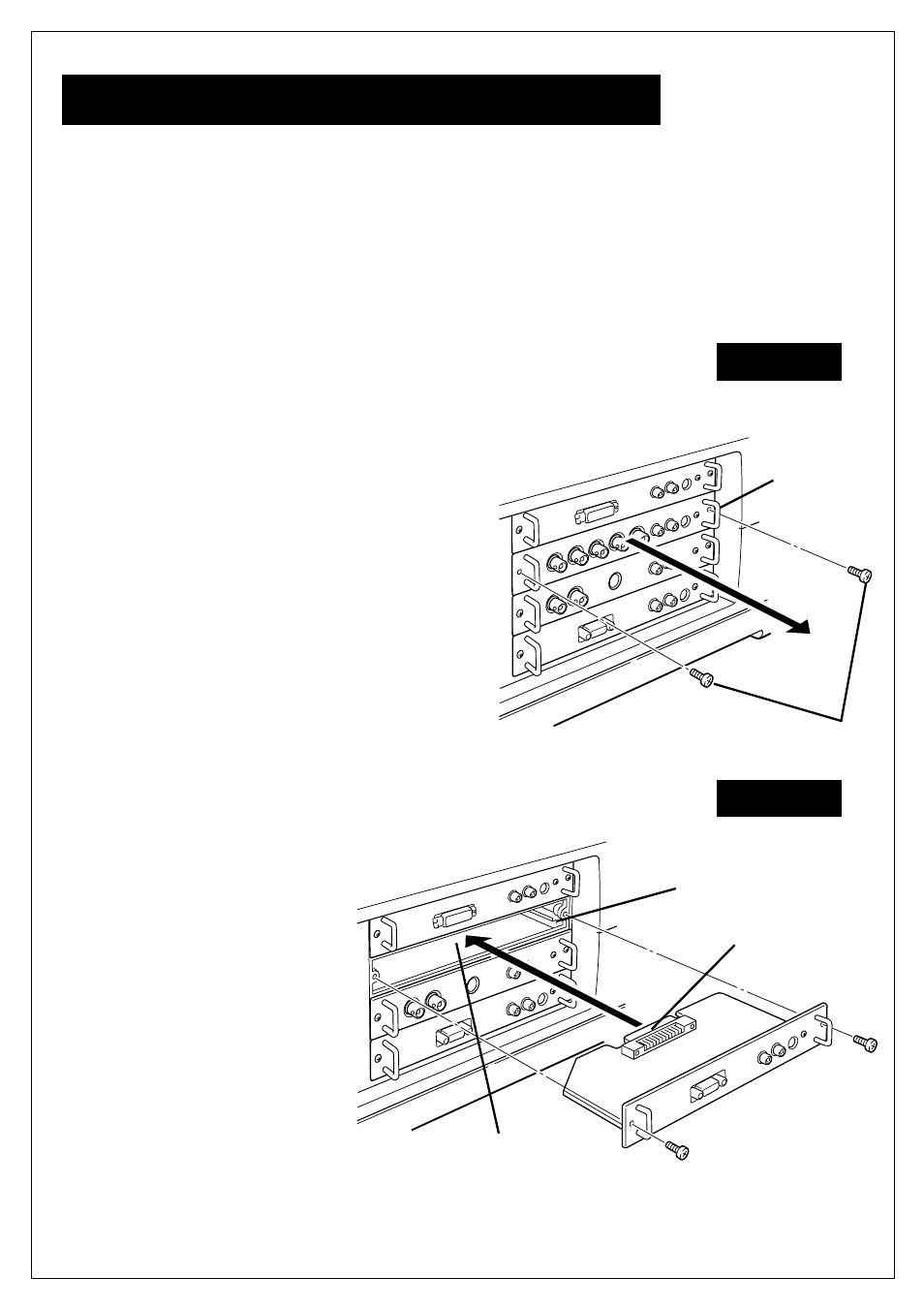

How to replace the terminal
1. Remove 2 Screws on the terminal.
(Refer to Figure 1)
2. Pull out the terminal by holding the
handle.
3. Replace the terminal. Insert the
terminal along Guide to fit Plug
into Socket. (Refer to Figure 2)
4. Tighten the screws to secure the
terminal.
◆ These figures show the case of
replacing with HDB 15-PIN terminal. Screws
Guide
Plug
Socket
Handle
