Tube exit
Air inlet
Rear View
Right Left
Ceiling
Wall-Mounting Plate
W D
H

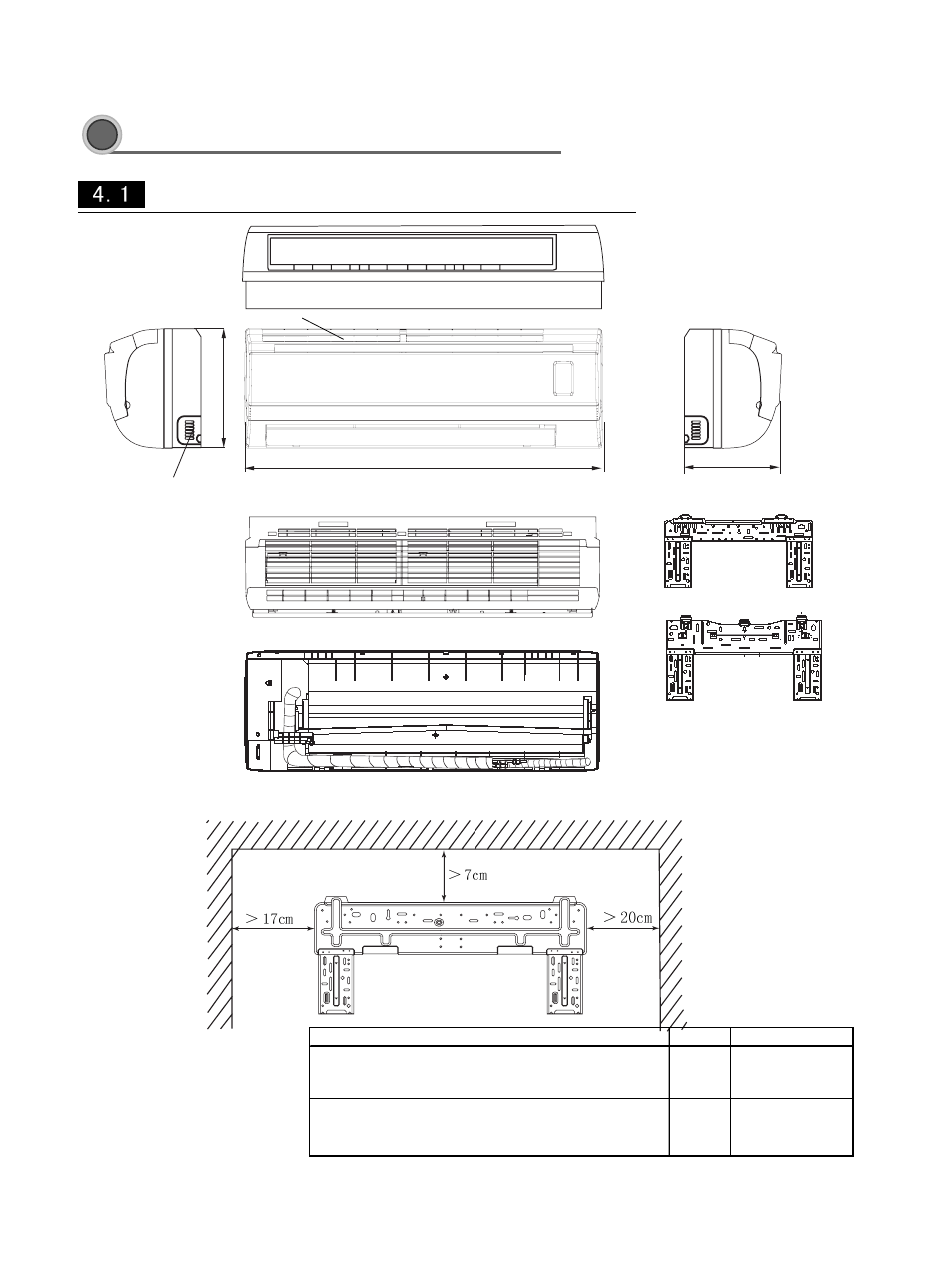

Outline and installation dimensions of indoor unit
4
Outline and installation dimension Outline and installation dimension
Wall-Mounting Plate:
ASH-09AK
ASH-13AK
Model W(㎜) H(㎜) D(㎜)
ASH-09AK 740 250 180
ASH-13AK 805 280 215
