SPEEDCHARGE CONTROL
DISPLAY MODE SWITCH
Use this switch to set the function of the
digital meter to one of the following:
• BATTERY %: The digital meter
displays an estimate of the percent of
charge of the battery connected to the
charger battery clamps.
• VOLTAGE: The digital meter displays
the voltage at the charger battery
clamps in DC volts.
CHARGE RATE SWITCH
Use this switch button to set the charge
rate to one of the following three.
• 2A CHARGE RATE: Intended for
charging small batteries such as
those commonly used in garden
tractors, snow mobiles and motor-
cycles. The 2A rate is not intended to
be used as a trickle charger for larger
batteries.
• 6A or 10A CHARGE RATE: Use for
charging automotive batteries, marine
batteries, and deep cycle batteries.
Not intended for industrial applica-
tions.
BATTERY TYPE SWITCH
Use this switch button to set the type of
battery to be charged to one of the
following three.

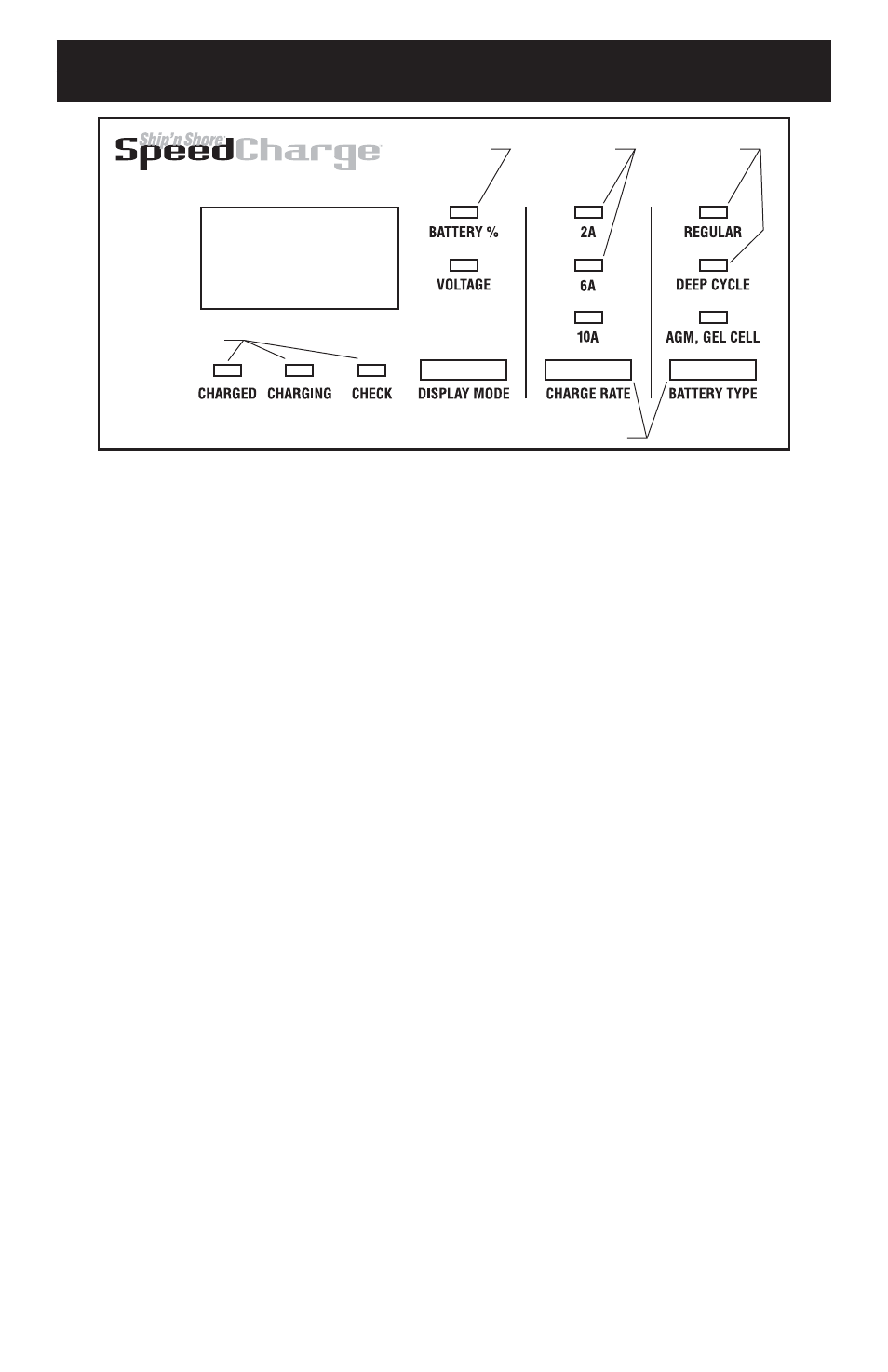

SSC-1000A CONTROL PANEL
• REGULAR: This is the type of battery
usually used in cars, trucks, and
motorcycles. These batteries have
vent caps and are often marked “low
maintenance” or “maintenance-free”.
• DEEP CYCLE: Deep cycle batteries
are usually marked as “deep cycle” or
“marine”. Deep cycle batteries are
usually larger than the other types.
• AGM, GEL CELL: AGM and gel cell
batteries have sealed cases without
vent caps. Such batteries are often
smaller than the other types.
With the exception of AGM and gel cell
batteries, all other battery types may or
may not have vent caps.
Vent caps are
located on top of the battery and provide
a means to add distilled water when
needed
. Batteries should be marked
with their type. If charging a battery that
is not marked, check the manual of the
item that uses the battery. If the battery
type is unknown, use the REGULAR
setting. Make sure the battery complies
with the safety instructions on page 3.
DIGITAL METER
Display Mode
LEDs
Charge Rate
LEDs
Battery Type
LEDs
Switch Buttons
Status LEDs
