P HYSICAL S PECIFICATIONS SSD-D XXX (I)-3600 D ATA S HEET
S ILICON S YSTEMS P ROPRIETARY
This document and the information contained within it is confidential and proprietary to SiliconSystems, Inc.
All unauthorized use and/or reproduction is prohibited.
3600D-04DSR P AGE 2 F EBRUARY 2, 2009
P IN L OCATIONS

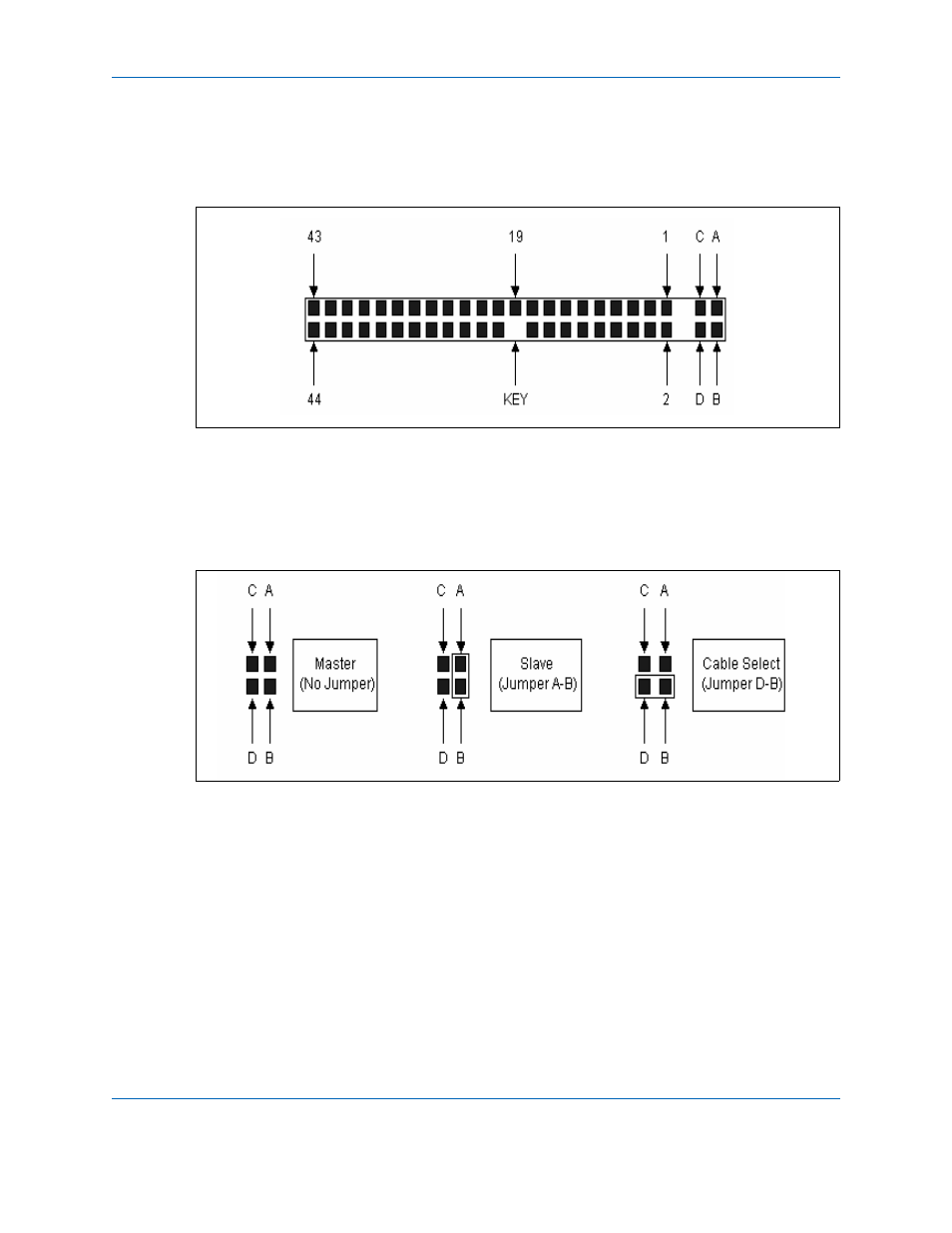

The following diagram identifies the pin locations of the 2.5" Drive.
Figure 2: Pin Locations
J UMPER S ETTINGS
The following diagram defines the SiliconDrive 2.5" Drive jumper settings.
Figure 3: Jumper Settings
