This document and the information contained within it is confidential and proprietary to SiliconSystems, Inc.
All unauthorized use and/or reproduction is prohibited.
3600D-04DSR
P
AGE
1
F
EBRUARY
2, 2009
P
HYSICAL
S
PECIFICATIONS
The SiliconDrive 2.5" Drive products are offered in an industry-standard 2.5"
Drive form factor. See
Drive capacities.
P
HYSICAL
D
IMENSIONS
This section provides diagrams that describe the physical dimensions for the
2.5" Drive.

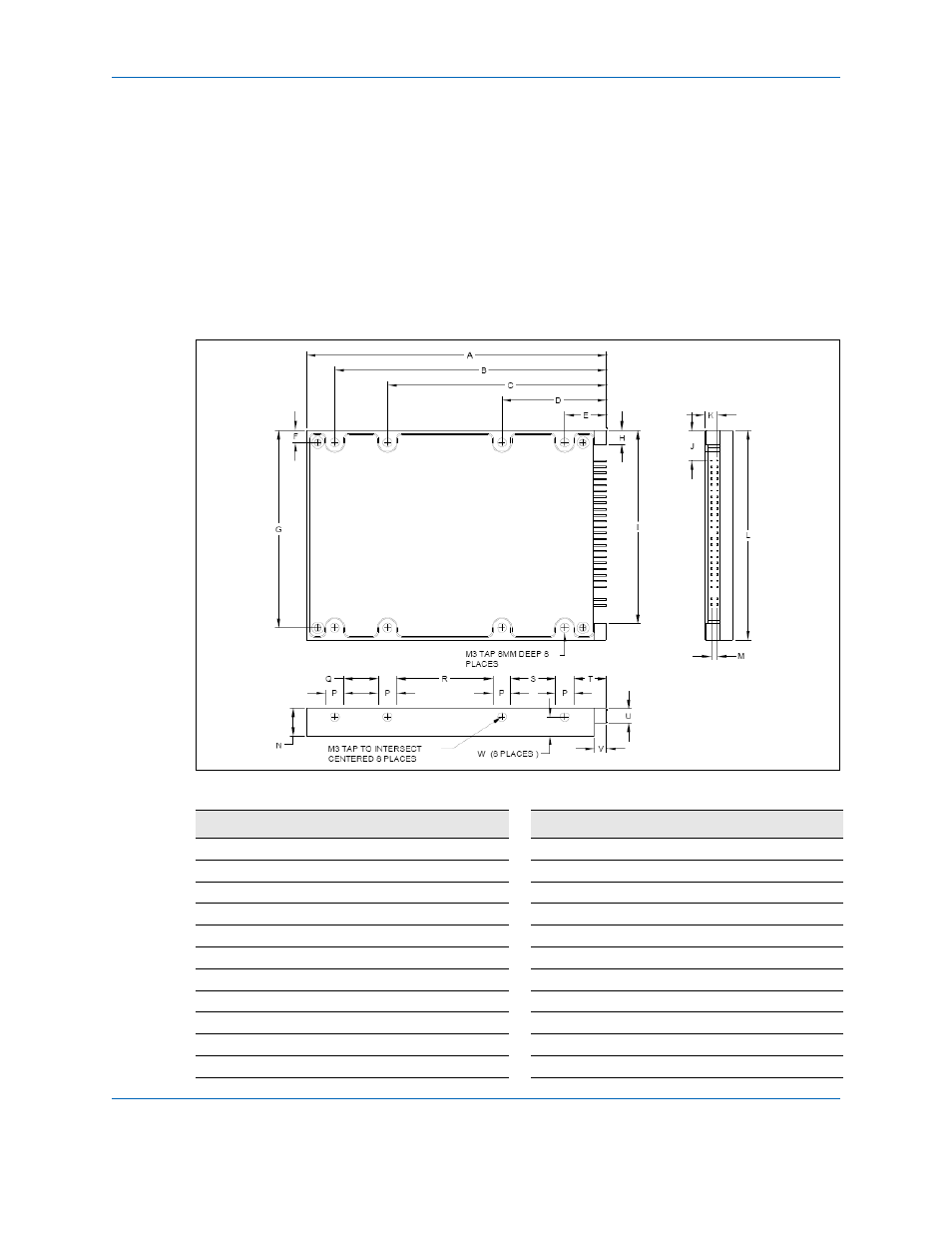

Figure 1: Physical Dimensions
Dimension Millimeters Tolerance (mm)
Dimension Millimeters Tolerance (mm)
A
100.00
±0.25
L
69.85
±0.25
B
90.60
±0.125
M
2.00
±0.125
C
73.03
±0.125
N
9.40
±0.10
D
34.93
±0.125
P
6.00
±0.125
E
14.00
±0.125
Q
11.57
±0.125
F
4.08
±0.125
R
32.10
±0.125
G
61.70
±0.125
S
14.93
±0.125
H
4.68
±0.125
T
11.00
±0.125
I
64.42
±0.125
U
4.65
±0.125
J
10.14
±0.51
V
4.00
±0.125
K
3.99
±0.43
W
6.15
±0.125
