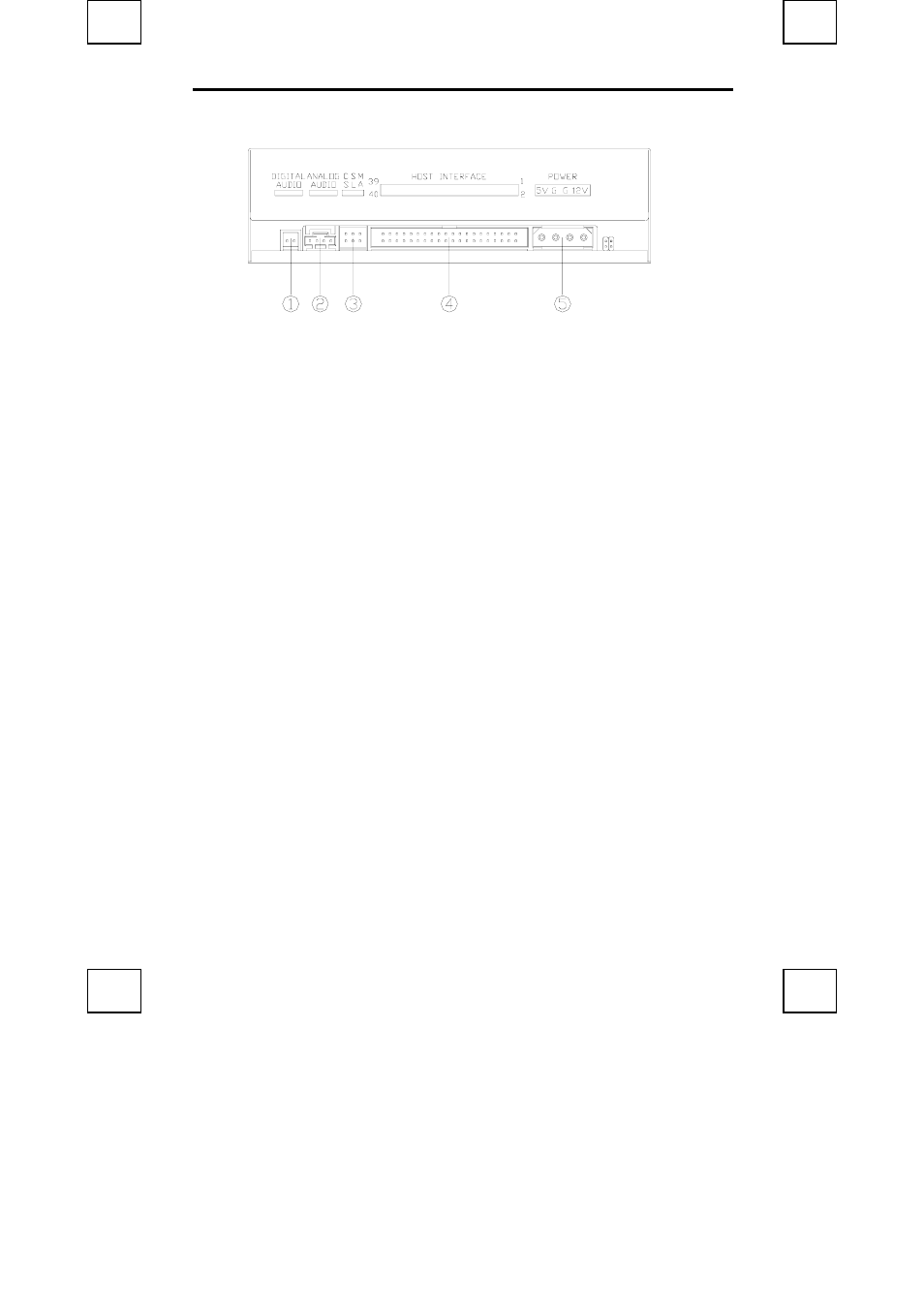

Rear View
1. Digital Audio Output Connector
If your sound card has a digital audio IEC958 format connector, you can connect it to this
digital audio output connector with a 2-pin audio cable.
2. Analog Audio Output Connector
This connector allows you to connect the drive to your sound card with a 4-pin audio
cable.
3. Device Configuration Jumper
Set the jumper to Master, Slave or Cable Select according to your system configuration.
4. IDE Interface Connector
Plug one end of the 40-pin IDE cable here to join the 40-pin IDE connector on the
motherboard. The red-edge of the IDE cable must be connected to Pin 1 of each
connector.
5. Power Supply Connector
By plugging the computer’s power supply cable here, you can connect the DVD-ROM
drive and your computer system.
