Integrated Installation
20
90° door stop.
Dual Installations
Two integrated units may be placed side by side in a dual
installation. Panel width dimensions will vary slightly from
single installations. A dual installation kit is required for
installations with 2"
(51)
or less space between units.
Dual installation kits are available through your authorized
Sub-Zero dealer.
IMPORTANT NOTE:
If a 27"
(686)
unit is installed next to a
36"
(914)
tall model, the decorative front panels will align,
however, the face frames will not. This is only apparent
when both doors are open at the same time. Due to a
more robust hinge on 36"
(914)
units, the face frame was
reconfigured to maintain a consistent overall panel height.
Typical Panel Dimensions
COLUMN MODELS
W
H
Door
26
13
/
16
"
(681)
76
7
/
8
"
(1953)
27"
(686)
MODELS
W
H
Door
26
13
/
16
"
(681)
45
3
/
8
"
(1153)
Top Drawer
26
13
/
16
"
(681)
13
9
/
16
"
(345)
Bottom Drawer
26
13
/
16
"
(681)
16
11
/
16
"
(424)
36"
(914)
MODELS
W
H
Door
35
13
/
16
"
(910)
45
3
/
8
"
(1153)
Top Drawer
35
13
/
16
"
(910)
13
9
/
16
"
(345)
Bottom Drawer
35
13
/
16
"
(910)
16
11
/
16
"
(424)
90° Door Stop
The door of integrated columns and tall models opens
to 105°. A 90° door stop is built into the hinge system for
installations where the door opening must be limited.

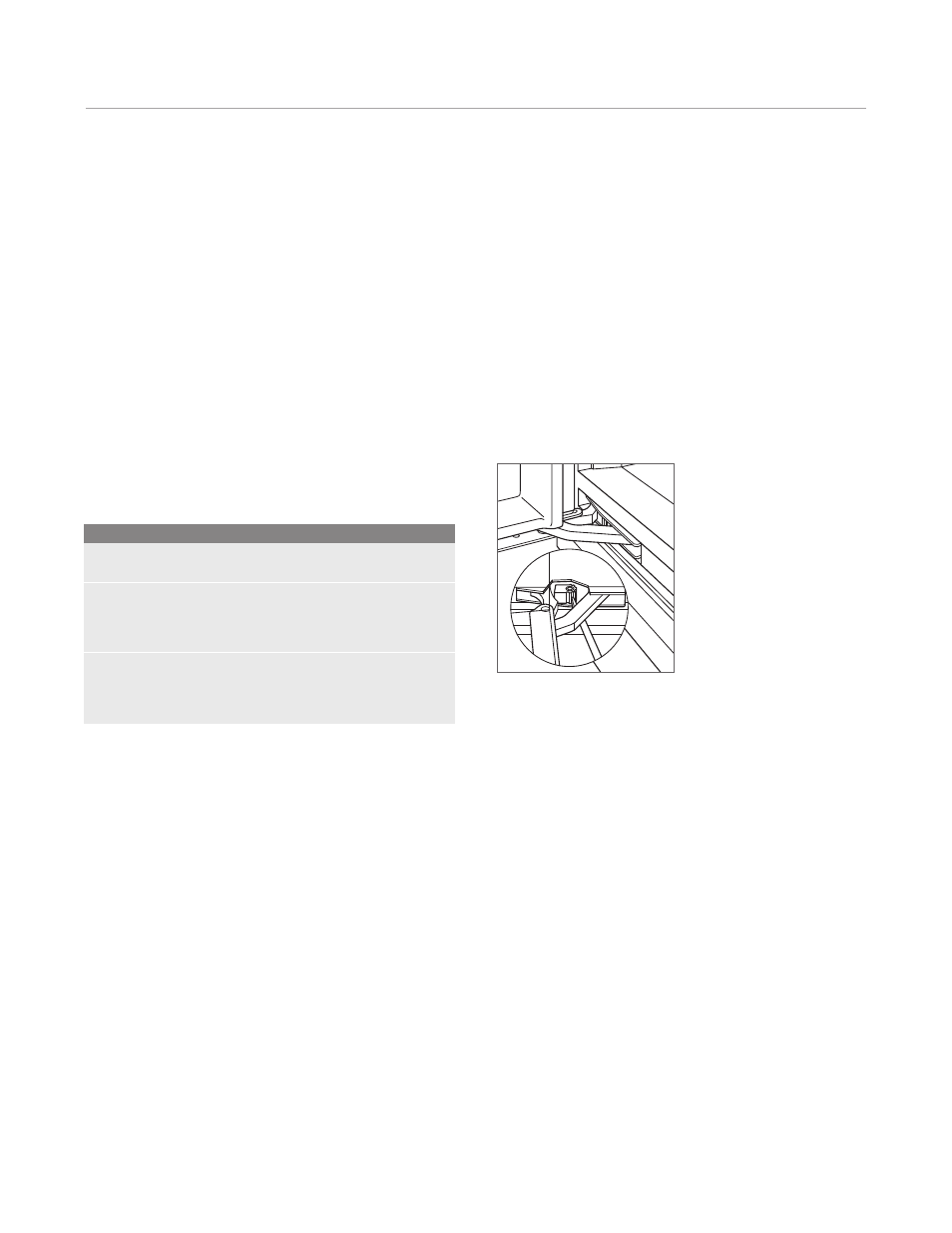

To engage the door stop, use the blade edge of a
standard screwdriver and rotate the cam in the center
portion of the hinge. You must make this adjustment to
both the bottom and top hinge. Refer to the illustration
below.
