- 5 -

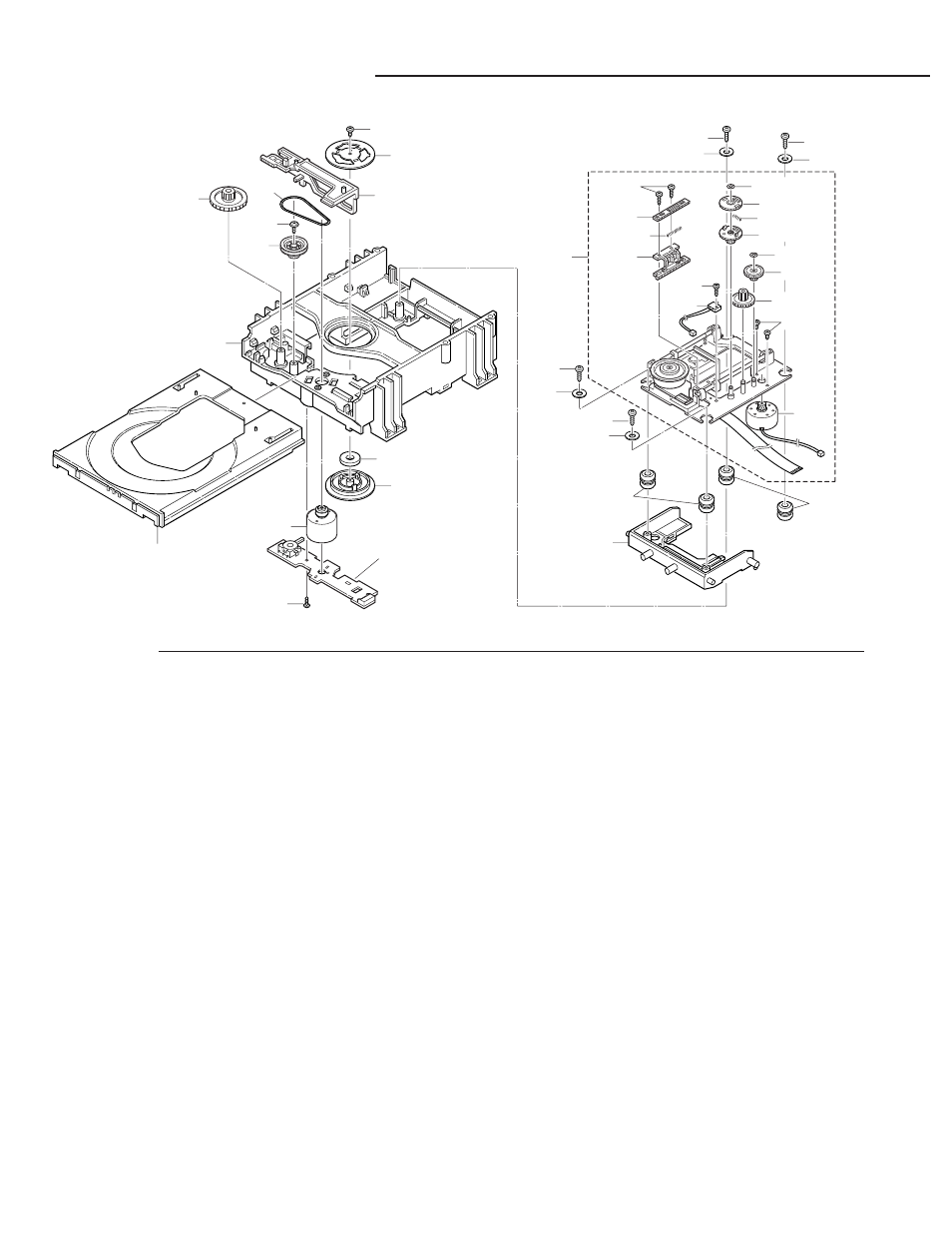

EXPLODED VIEW(DVD MECHANISM)
MECHA SW P.W.Board
The same as the DWM-380/US
DM01
DM02
DM03
DM13
DM14
DM09
DM06
DM04
DM07
DM05
DM12
DM08
DM11
DM23
DM17
DM17 DM17
DM18
DM18
DM18
DM17
DM18
DM37
DM38
DM21
DM22
DM26
DM28
DM27
DM29
DM36
DM39
DM34
DM33
DM30
DM32
DM24
DM25
DM20
DM19
PARTS LIST
Page15
DVD MECHANISM
REF.NO. PART NO. DESCRIPTION
614 323 2988 ASSY,MECHA,LDR310,
MECHANISM ASSY
DM01 411 162 1901 SCR S-TPG PAN PCS 2X3,
CHUCK HOLDER FIX
DM02 614 315 7830 DISC,CHUCK DISC
DM03 614 320 2356 SLIDE,BASE UP/DOWN
DM04 614 323 3923 BELT,SQUARE,LOADING
DM05 614 320 2271 GEAR,LOADING GEAR
DM06 412 061 7803 SPECIAL SCREW,HOLDER RAIL FIX
DM07 614 320 2349 PULLEY,LOADING RETARD PULLY
DM08 614 320 3865 CHASSIS,LOADING CHASSIS
DM09 614 320 2363 TRAY,TRAY
DM11 411 021 2704 SCR S-TPG BIN 2.6X6,
PWB MECHA IF FIX
DM12 645 032 4352 ASSY,MOTOR LOADING,
LOADING MOTOR
DM13 645 050 0725 MAGNET(CHUCK),MAGNET CHUCK
or 645 043 7175 MAGNET(CHUCK),MAGNET CHUCK
DM14 614 315 7847 HOLDER,CHUCK HOLDER
DM17 411 021 1806 SCR S-TPG BIN 2.6X10,BASE FIX
DM18 411 092 0906 WASHER Z 2.6X10X0.5,BASE FIX
DM19 614 321 0610 ASSY,MECHA,
LDR 370 BASE,BASE MECHANISM
DM20 411 184 0302 SCR S-TPG PAN PCS 1.7X4.5,
RACK FIX
DM21 614 310 2083 GEAR,RACK,MOVE PICKUP(FREE)
DM22 614 310 6159 SPRING,COMP,
FOR BACK RUSH(RACK)
DM23 614 310 2076 GEAR,RACK,MOVE PICKUP(FIX)
DM24 411 018 4704 SCR PAN PCS 1.7X5,LIMIT SW FIX
DM25 645 040 9899 SWITCH,MICRO 1P-2T,LIMIT SW
DM26 412 057 8304 SPECIAL WASHER,FOR GEAR FIX
DM27 614 310 2069 GEAR,GEAR-5
DM28 614 310 6142 SPRING,COMP,FOR BACK RUSH
DM29 614 310 2052 GEAR.,GEAR-4
DM30 412 057 8304 SPECIAL WASHER,FOR GEAR FIX
DM32 614 310 2038 GEAR.,GEAR-2
DM33 411 106 7709 SCR PAN PCS 1.7X2.5,
SLED MOTOR FIX
DM34 645 051 5200 ASSY,MOTOR,SLED MOTOR
DM36 614 310 2045 GEAR.,GEAR-3
DM37 614 320 5098 MOUNTING,BASE MECHA MOUNTING
DM38 614 310 6128 SPACER,MECHA,
BASE MECHA FLOATING
DM39 614 322 9070 SPACER,MECHA,
BASE MECHA FLOATING
REF.NO. PART NO. DESCRIPTION
