5 Home Signal Distribution Kit Installation Guide
Disconnect the cable from the multiswitch and connect it to the ComBIneD
oUT port on the Combiner (SR2261) as shown. (Refer to page 5 for the
Combiner port identification.)
Using one of the RG-6 cables which you purchased, connect it between the
multiswitch and the DBS In port on the Combiner (SR2261) as shown. (Re-
fer to page 5
for the Combiner port identification.)

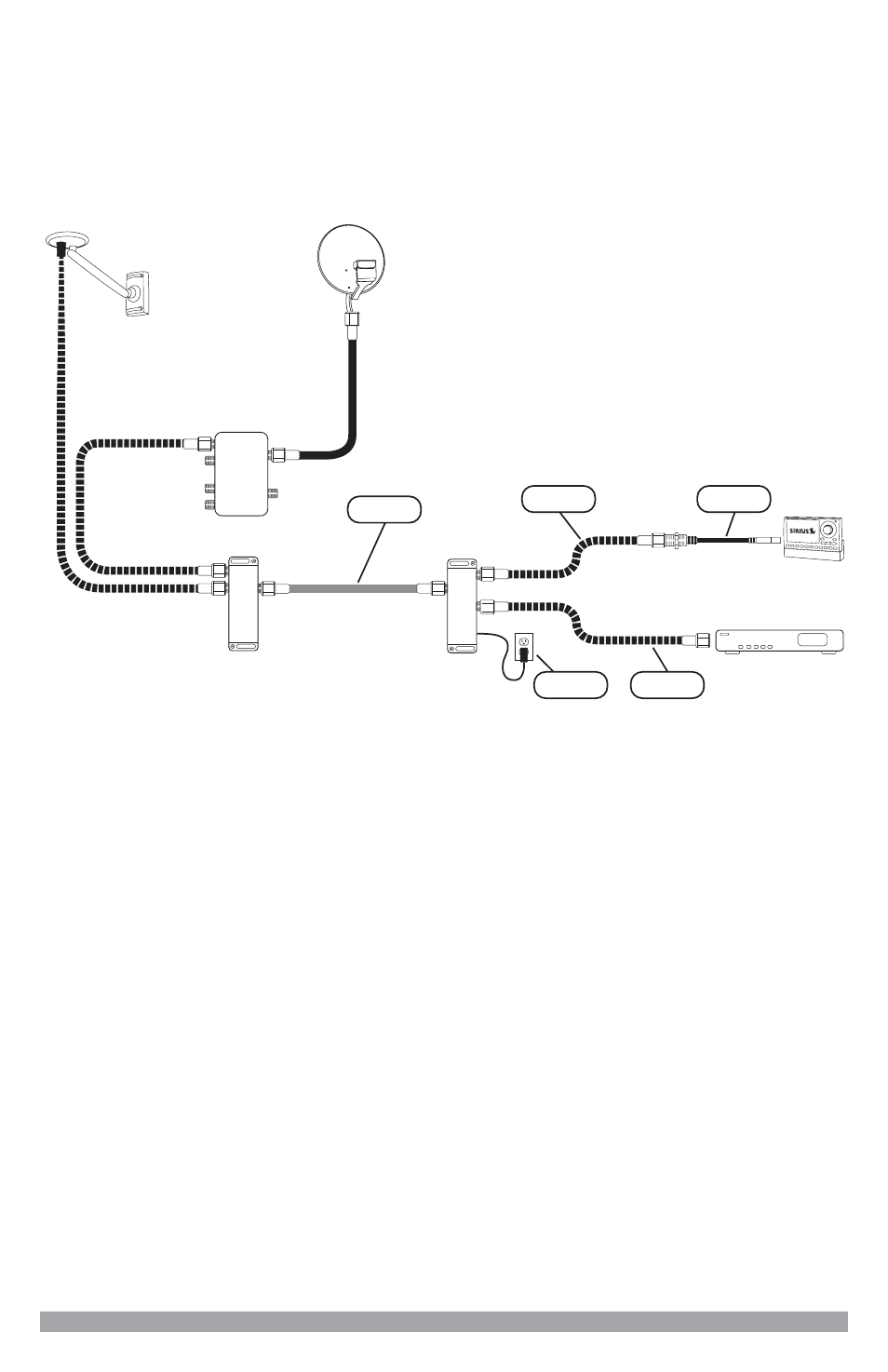

Step 6
Step 9 Step 8
Splitter
S
Step 7 Step 10
M
EXISTING
RG-6 CABLE
C
Combiner
Multiswitch
Disconnect the existing cable run from the satellite TV receiver/tuner and
connect this end of the cable to the ComBIneD In port on the Splitter
(SR2251) as shown. (Refer to page 5
for the Splitter port identification.)
Connect another of the RG-6 cables you purchased between the satellite
TV receiver/tuner and the DBS TV port on the Splitter (SR2251) as shown.
(Refer to page 5
for the Splitter port identification.)
Connect another of RG-6 cables you purchased between the SIRIUS oUT
port on the Splitter (SR2251) and the f connector end of the supplied RG-
174 Adapter cable as shown. (Refer to page 5
for the Splitter port identifica-
tion.)
Connect the other end of the RG-174 Adapter Cable to the anT connection
on your SIRIUS radio as shown.
Verify that the satellite TV receiver/tuner is plugged into a working AC out-
let. Next, connect the provided AC Power Adapter to the PoWeR In port of
the Splitter (SR2251), and plug it into a working AC outlet.
The installation is now complete.
4.
5.
6.
7.
8.
9.
10.
