2-6
Desktop or Shelf Mounting
1. Attach the four adhesive feet to the bottom of the first RPU unit.

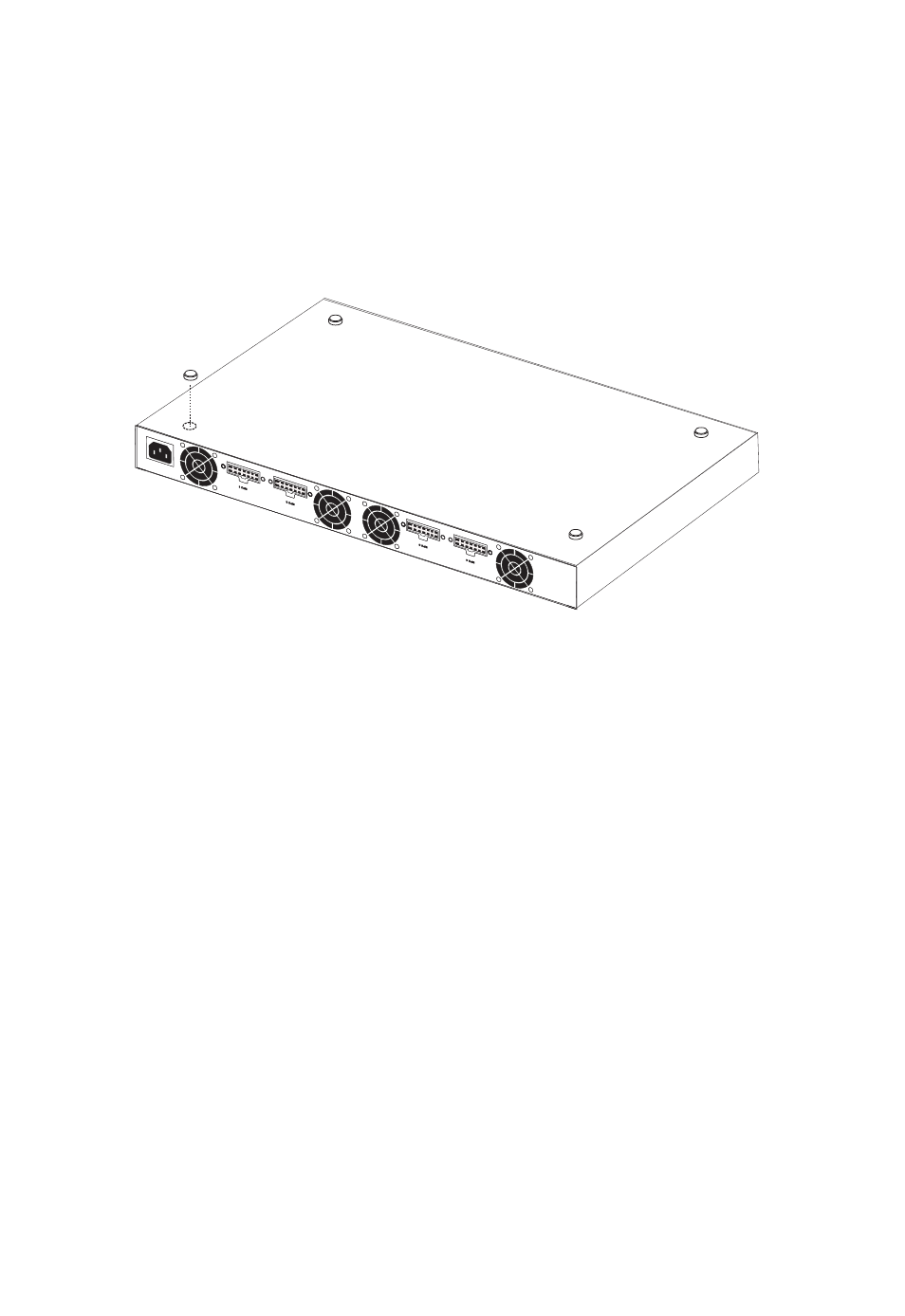

Figure 2-3 Attaching the Adhesive Feet
2. Set the device on a flat surface near an AC power source, making sure
there are at least five centimeters or two inches of space on all sides for
proper air flow.
Connecting Switches to the RPU
Caution: DO NOT connect the RPU to an AC power source until
DC power cords have been connected to the supported
switches.
To connect switches to the RPU:
1. Connect one end of an AC cord to the AC receptacle on each
supported switch, and the other end to a grounded power outlet.
100-240V
,5 0-60Hz
10A
