Step 3 - Place a Video Shelf on the Metal Base
Align four holes in a Video Shelf (E) with the Shelf Connectors (H) threaded into the 3” Cope Tubes (B) in Step 2; then, place
the Video Shelf onto the 3” Cope Tubes.

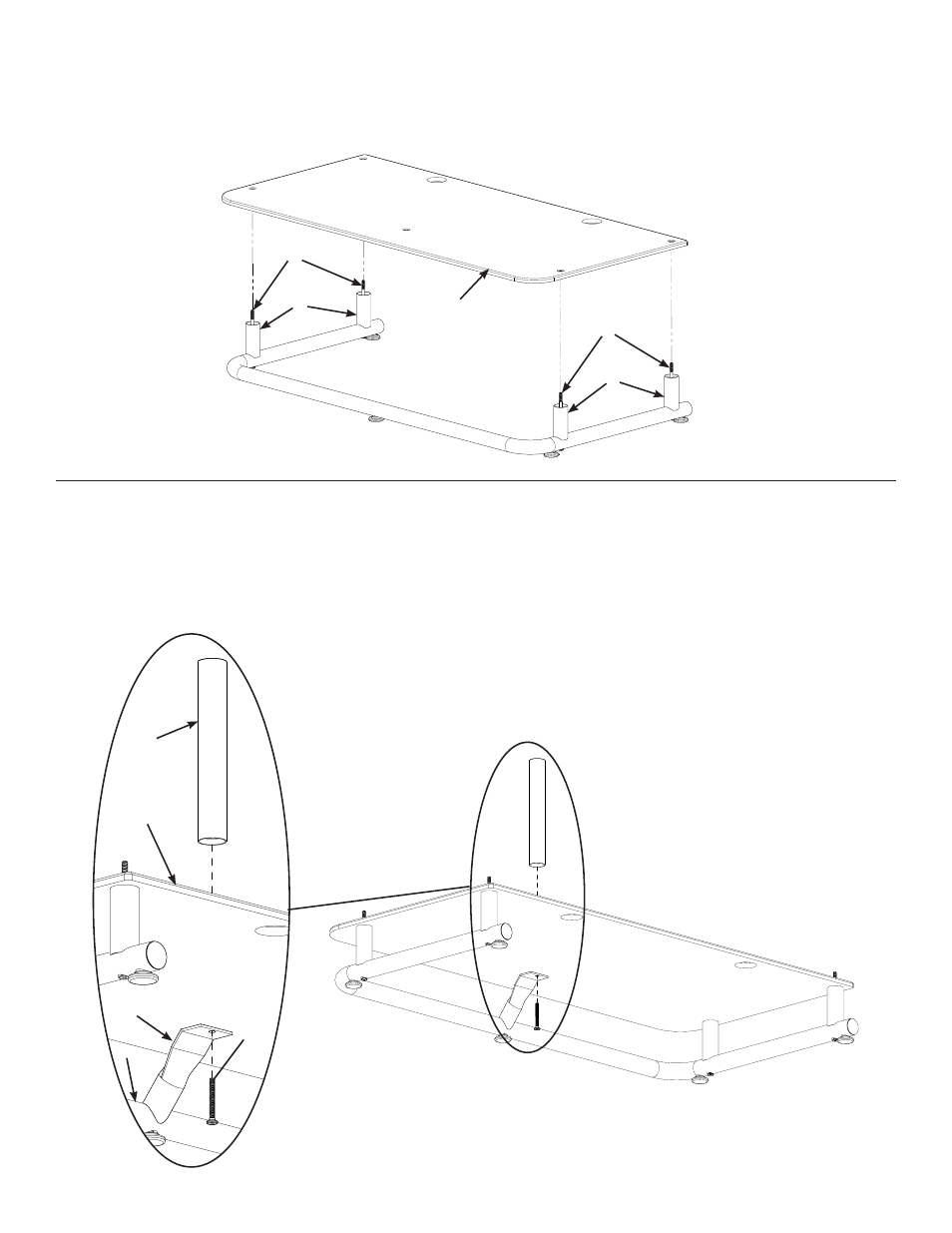

Diagram 3
H
H
E
B
B
Step 4 - Secure the Angled Center Support to the Video Shelf
NOTE: Make sure the coped end of the Angled Center Support (C) fi ts over the Metal Base (D).
Attach the Angled Center support (C) to the bottom of the Video Shelf (E) by threading a Pan Head Bolt (G) up through the
Angled Center Support, the Video Shelf, and into an 8” Pillar (A).
Diagram 4
A
D
G
C
E
