5

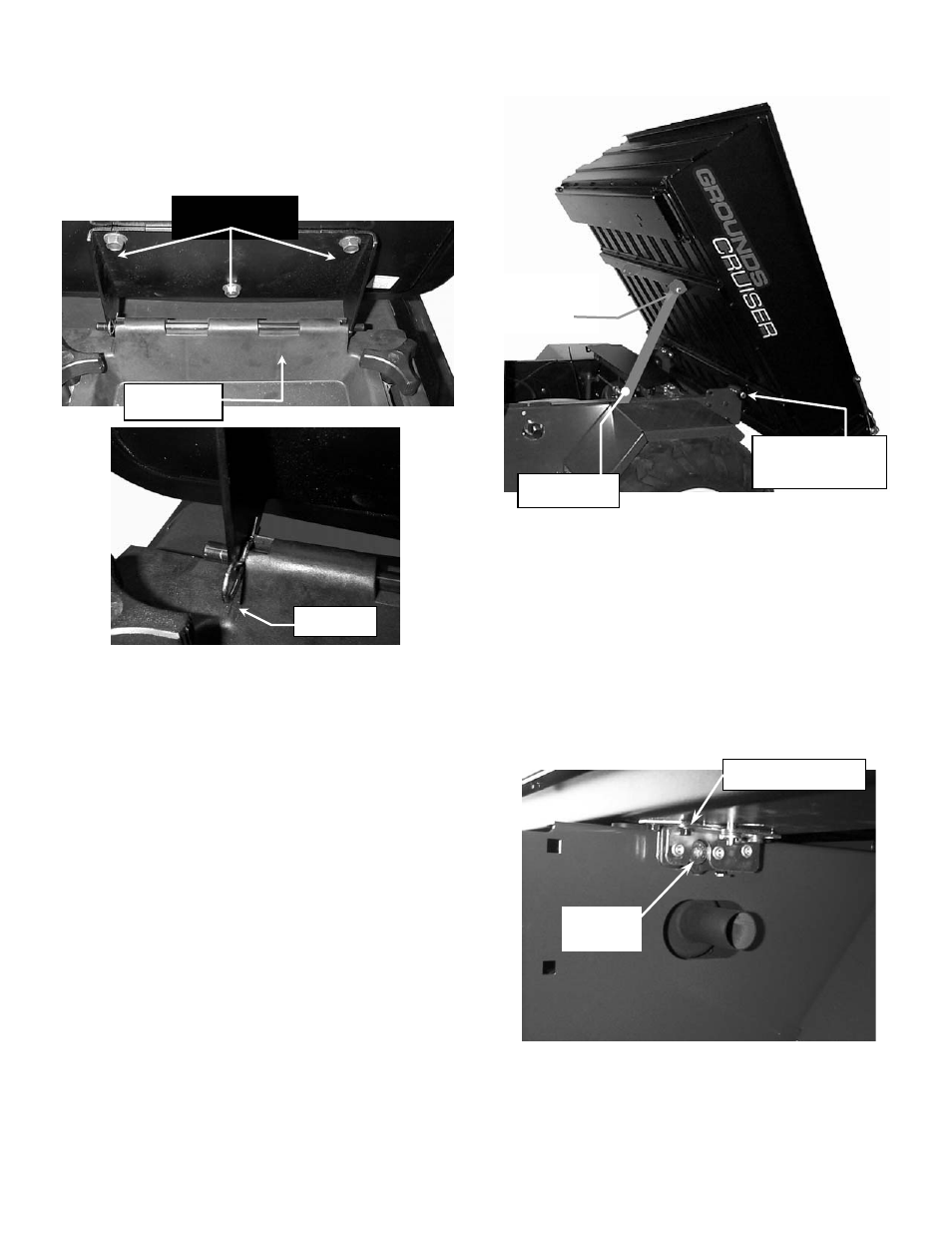

STEP 10 (Continued)
INSTALL OPERATOR’S AND PASSENGER’S
SEAT
FIGURE 1.7
STEP 11
ATTACH CARGO BED
Attach bed to pivots at rear of frame. A prop rod is
provided to support an empty cargo bed only in a raised
position.
1. Align brackets on bottom rear of cargo bed with left
and right pivots located at rear of frame. See Figure
1.8.
2. Insert (1) 1/2-13 x 3 3/4” bolt into each left and right
pivot and secure with 1/2-13 NyLoc nuts. Tighten
securely.
3. Attach prop rod to bracket on bottom of cargo bed
using (1) 1/2-13 x 3” bolt and (1) 1/2-13 NyLoc nut.
Tighten to a snug rotating fit.
FIGURE 1.8
STEP 12
ALIGN CARGO BED LATCH
Lower the Cargo bed slowly until the latch contacts the
striker pin. The head of the striker pin should be inside
of the latch as shown in figure 1.9. If it is not aligned
correctly, loosen the bolts that attach the left and right
bed pivot brackets. Then, position the latch over the
striker pin as shown in figure 1.9 and re-tighten the bed
pivot bracket bolts.
FIGURE 1.9
(3) SEAT BOLTS
HINGE ROD
HAIRPIN
PROP ROD
1/2-13 X 3”
BOLT & 1/2-13
NYLOC NUT
1/2-13 X 3 3/4”
BOLT & 1/2-13
NYLOC NUT
LATCH ASSEMBLY
STRIKER
PIN
