Connectors
] 10
Connectors

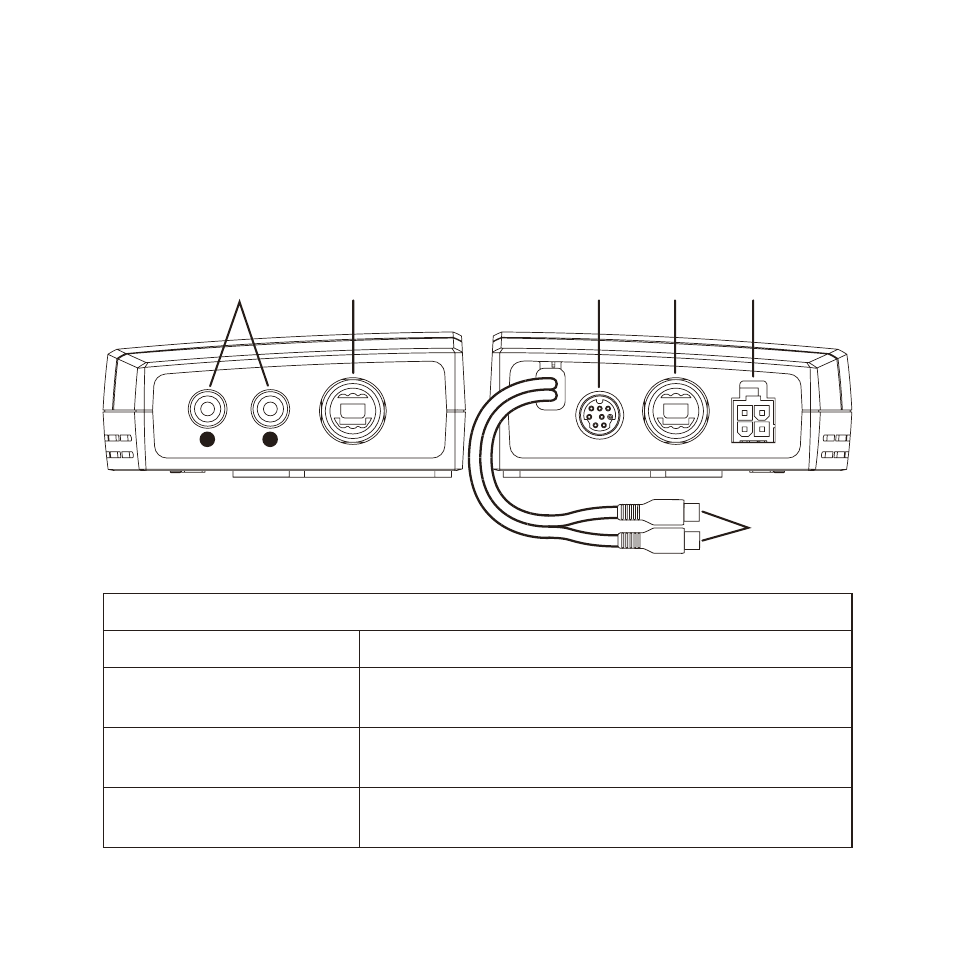

Figure 1 and the table following identify and describe the connectors of the SNYSC1.
UNILINK IN AUDIO IN
AUDIO IN
L/R
AUDIO
OUT L/R
UNILINK
IN
SC
INPUT
L R
SC INPUT
AUDIO
OUT
UNILINK OUT POWER
UNILINK
OUT POWER
description of the SNYSC1 Connectors
Connector description
Audio In Connectors L/R
Connects to the audio output of a Sony CD Changer,
iPod adapter, or other UniLink compatible device
UniLink In Connector
Connects to a Sony CD Changer, iPod
®
adapter, or
other UniLink compatible device
Audio Out Cable
Connects to the UniLink Audio input on the Sony
headunit
figure 1 figure 1
