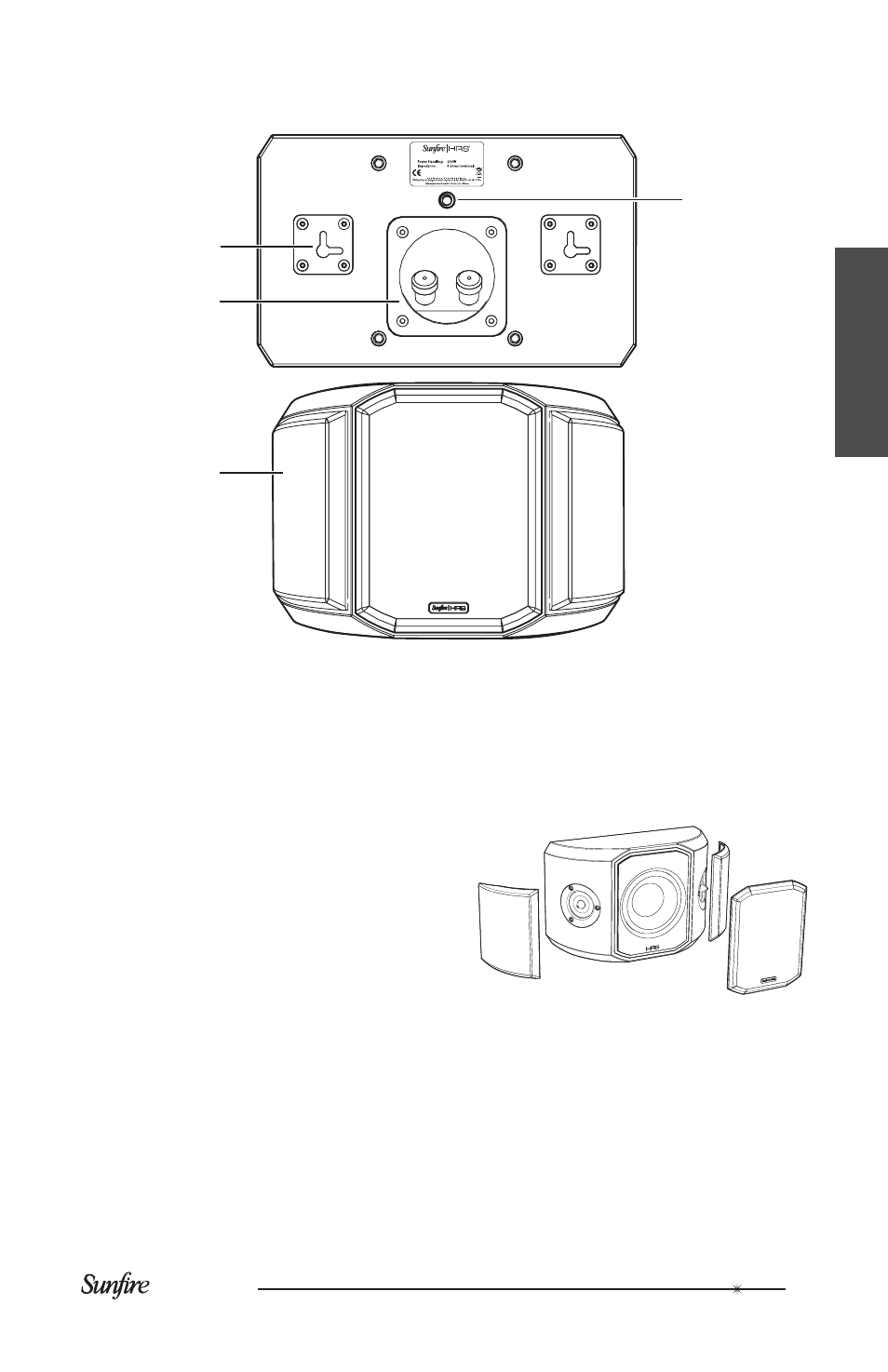

1. Mounting Brackets
Each surround loudspeaker has two
keyhole brackets that allow for wall
mounting horizontally or vertically.
. Binding Posts
The gold-plated spring-loaded termi-
nals accept bare wire, tinned-wire, or
pins. Always use high quality connec-
tions and speaker wires, and make
sure there are no loose fittings or stray
wire strands.
Connect the positive speaker-level
output of your power amplifier or
receiver to the positive (red) input of
the loudspeaker. Connect the negative
speaker-level output of your power am-
plifier or receiver to the negative (black)
input of the loudspeaker.
Make sure that the positive and nega-
tive connections do not touch, or this
may damage your power amplifier.
3. Grilles
The tweeter and woofer grilles are held
in place with small magnets, and can
be easily removed if required. Gently
pry them off by hand by lifting the cor-
ners one at a time.
The magnetic logo badge fits either
vertically or horizontally in shallow re-
cesses in the woofer grille, depending
on how you are using the loudspeaker.
4. Threaded Insert
This 1/4-0 threaded insert allows the
loudspeaker to be attached to com-
monly available wall mounts, instead of
using the keyhole brackets.
Features
High Resolution Series HRS-SAT4BIP
4
1
3
