User's Manual
10
Specifications
Design
way, High Pressure
Drive Units
HF: Dual 1-inch ring radiating tweeters
LF: 4.5-inch High Back-emf
Frequency Response
95 Hz to 30 kHz
Maximum Power
00 watts
Minimum Power
5 watts
Sensitivity
(2.83 V/1 meter)
89 dB
Maximum Output
110 dB
Impedance
6 ohms nominal
Connections
1 pair of gold plated spring terminals
© 2009 Sunfire, a division of Elan Home
Systems, LLC.
All rights reserved. Sunfire reserves the
right to improve its products at any time.
Therefore, specifications are subject to
change without notice.
Manual 913-160-00 Rev A

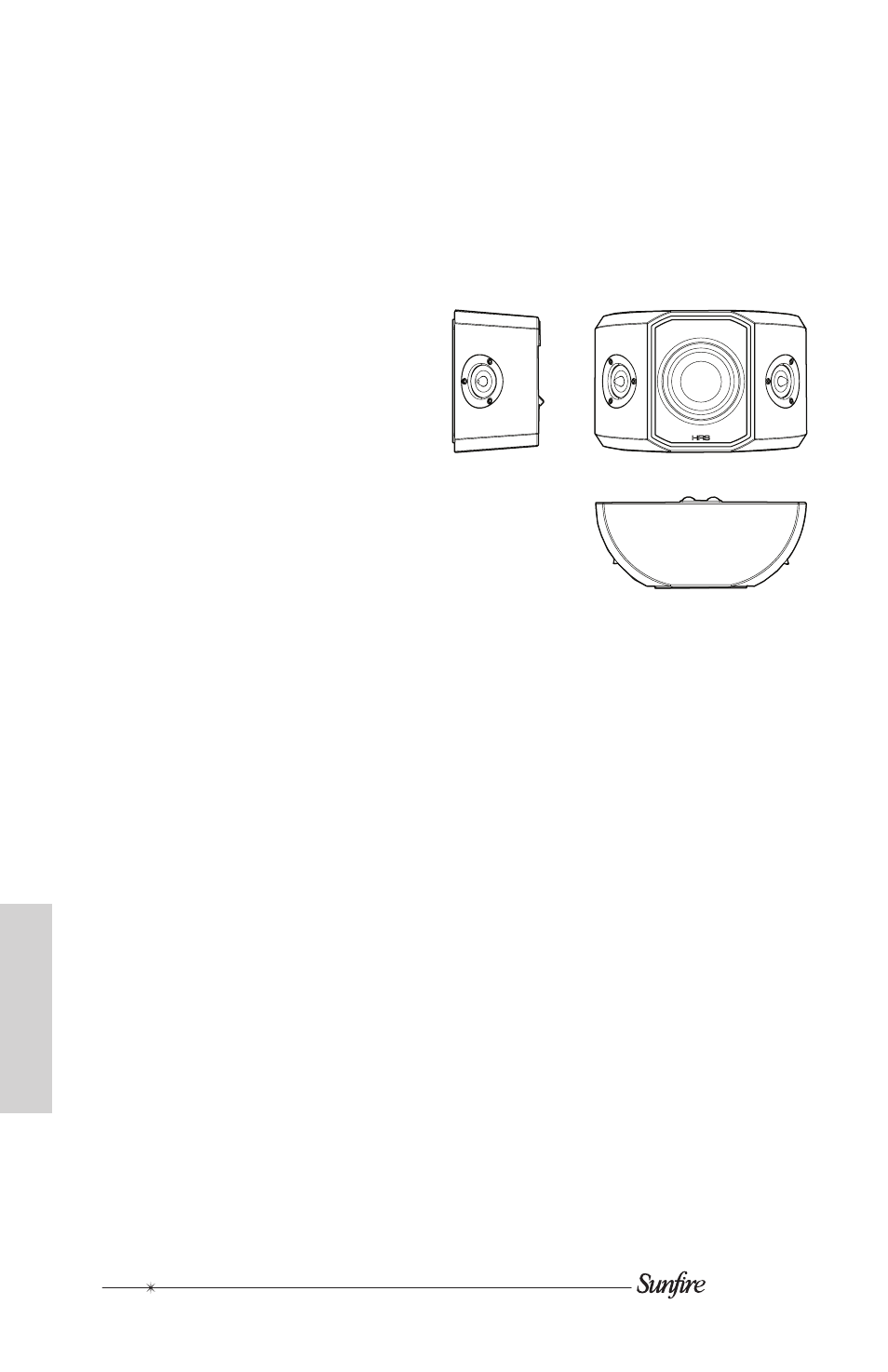

Dimensions
(Maximum dimensions, including grille)
Height
6.75" (171.5 mm)
Width
10.0" (255 mm)
Depth
4.35" (110.6 mm)
Weight
7.0 lb. (3.2 kg)
