2 configuring the drive, 3 serial ata cables and connectors, Configuring the drive – Seagate BARRACUDA ST3750528AS User Manual

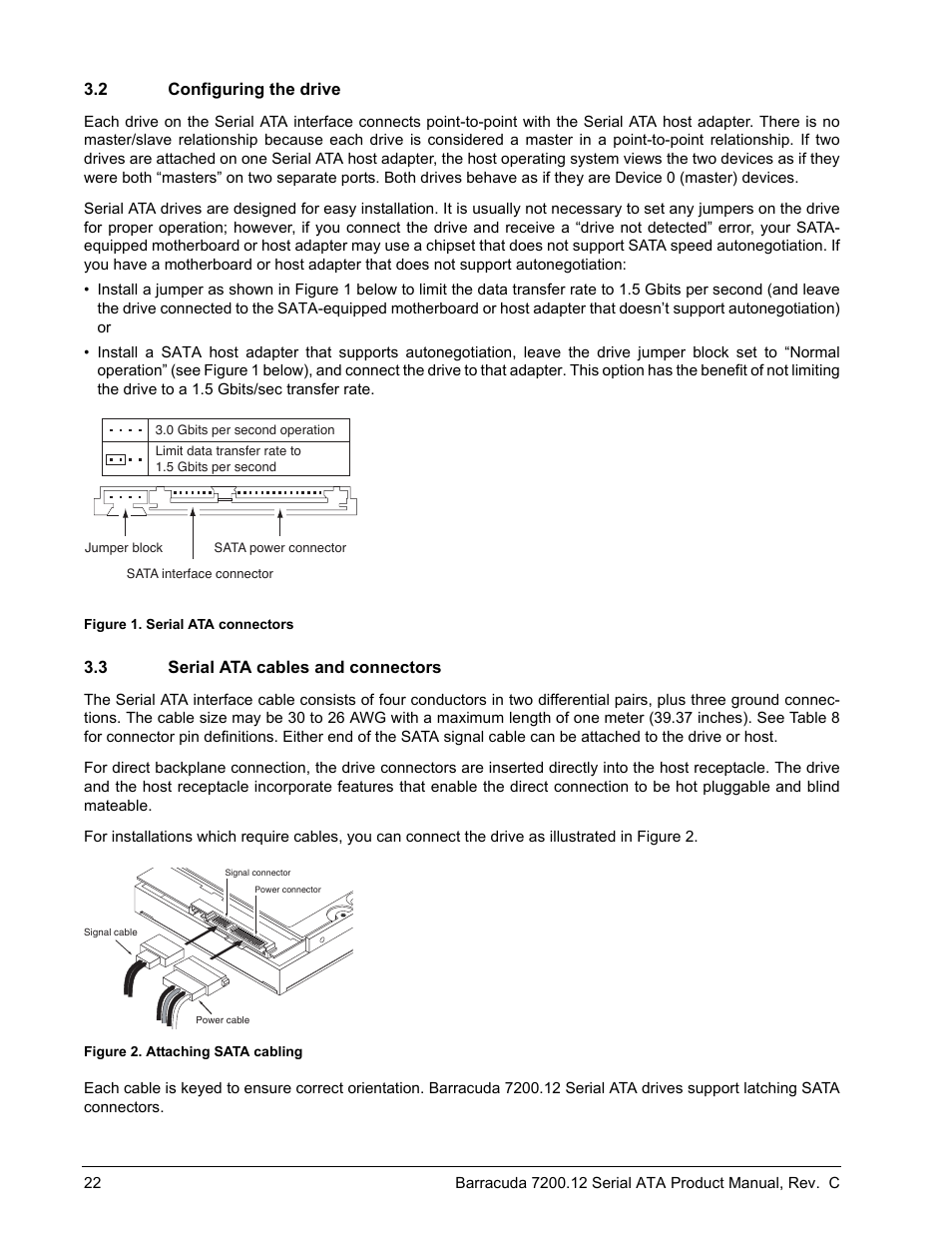

Page 30: Serial ata cables and connectors, Figure 1, Serial ata connectors, Figure 2, Attaching sata cabling
