Speco Technologies VL-12 Series User Manual
Page 2

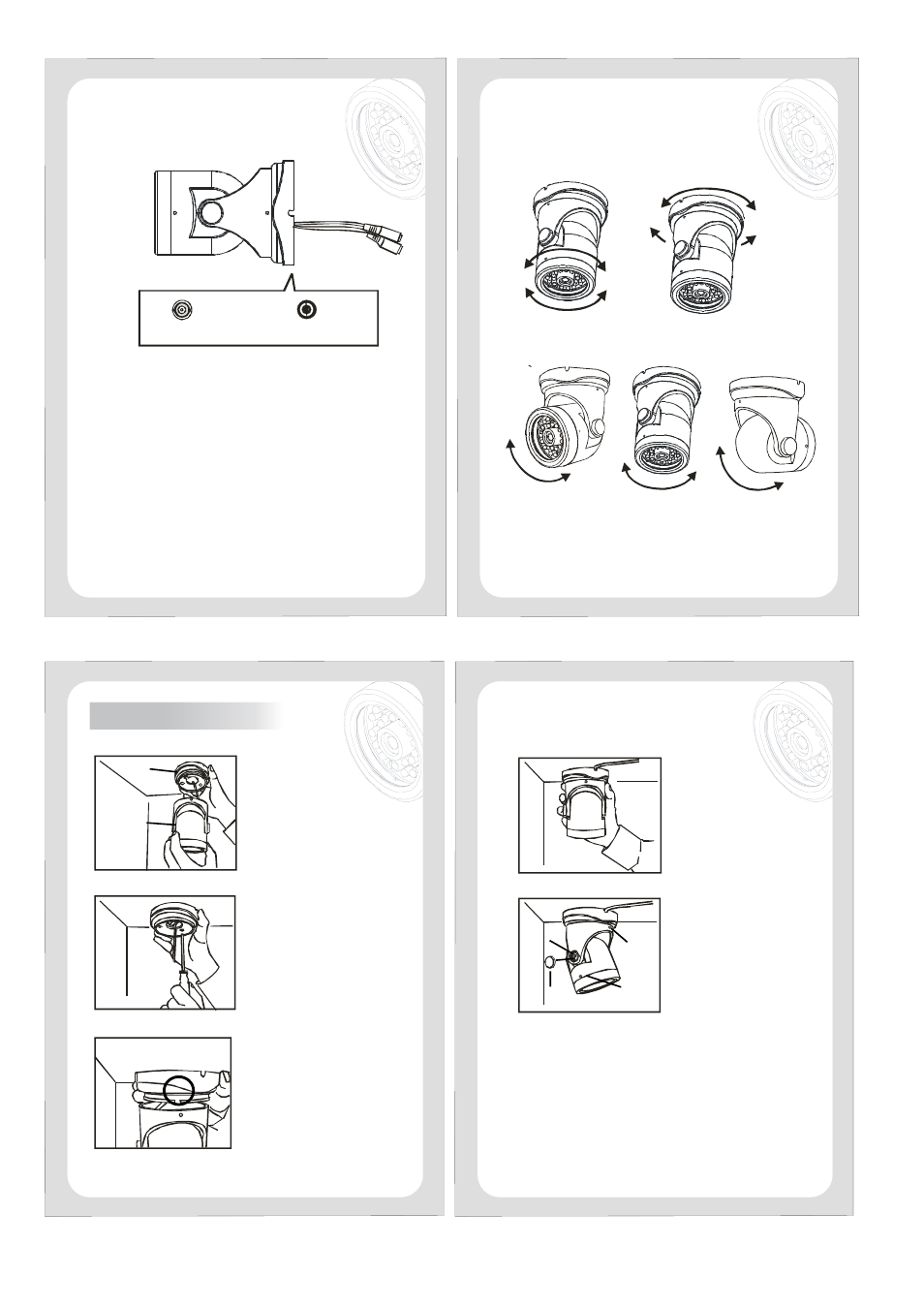

INSTALLATION
8
Power and video connections
Power: Regulated 12 Volts DC, center pin is positive (+)
Video: BNC, 1 Volt p-p
5
DC Power
BNC V ideo Output
Pan-Tilt-Twist (P-T-T) : Adjustable Manual X-Y-Z position
Pan: 360 degree
Tilt : 150 degree
Twist : 360 degree turning (one turn only)
Twist : 360 degree Pan: 360 degree
Grasp the front ring of the hosing and twist as required to make the
picture straight.
Tilt: 180 degree
6
Step 1
Loosen the set screw and
remove the base
Step 2
Attach the base to the wall or
ceiling.
Step 3
Line up the set screw on the
body to the slot on the base.
7
Step 4
Attach the body to the base
Step 5
Adjust the angel then tighten
screw 1,2 & 3.
base
body
Screw 3
Screw 1
Screw 2
Screw cover
