Using the IR receiver
Depending on the speaker layout (i.e. when placing the surround speaker (L) toward the listening
position, etc.), or when there is obstruction, such as a person or object between the IR transmitter and
the IR receiver of the surround speaker (L), you can use the external IR receiver (supplied) instead. The
IR receiver is compact and easy to install.

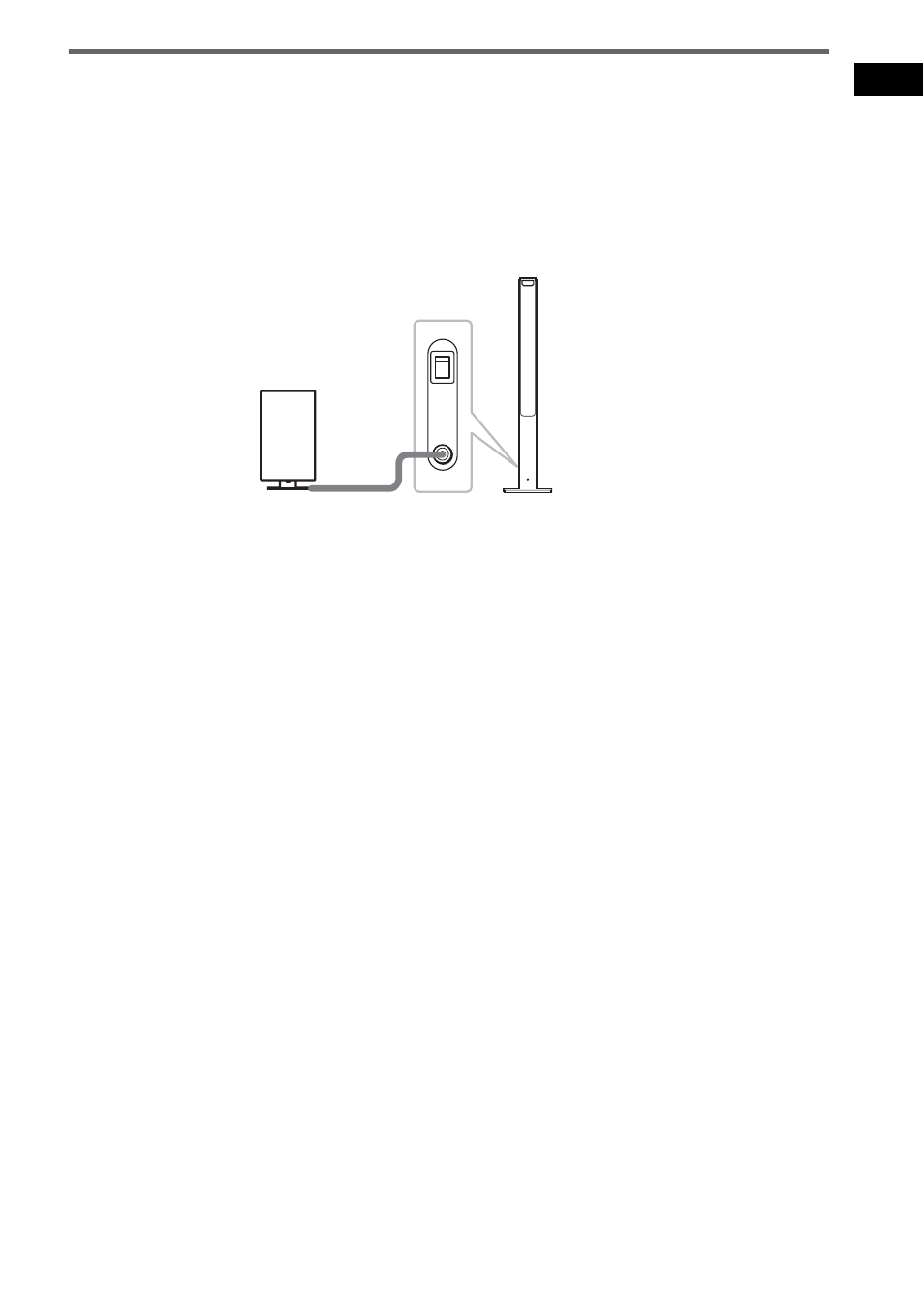

To connect the IR receiver
Connect the cord of the IR receiver to the DIR-R2 jack of the surround speaker (L).
Notes
• When you connect the IR receiver to the surround speaker (L), the IR receiver is activated and the IR receiver of
the surround speaker (L) is not activated automatically.
• When using the IR receiver, install it following the guidelines of the IR receiver of the surround speaker (L).
ON
OFF
ONLY FOR
POWER
DIR-R2
Rear side of the
surround speaker (L)
IR receiver
