Before You Begin
Observe all local plumbing codes.
Prior to installation, unpack the new lavatory and pedestal and
inspect them for damage.
Return the lavatory and pedestal to the protective cartons until
you are ready to install.
These instructions are for installing the lavatory to wood frame
construction. For other installations, provide suitable bracing and
fastening devices of sufficient size and strength.
The walls and floor must be square, plumb, and level.
Lavatory dimensions are nominal and conform to tolerances in
ASME/ANSI A112.19.2M standards for vitreous china plumbing
fixtures.
Sterling reserves the right to make revisions in the design of
products without notice, as specified in the Price Book.

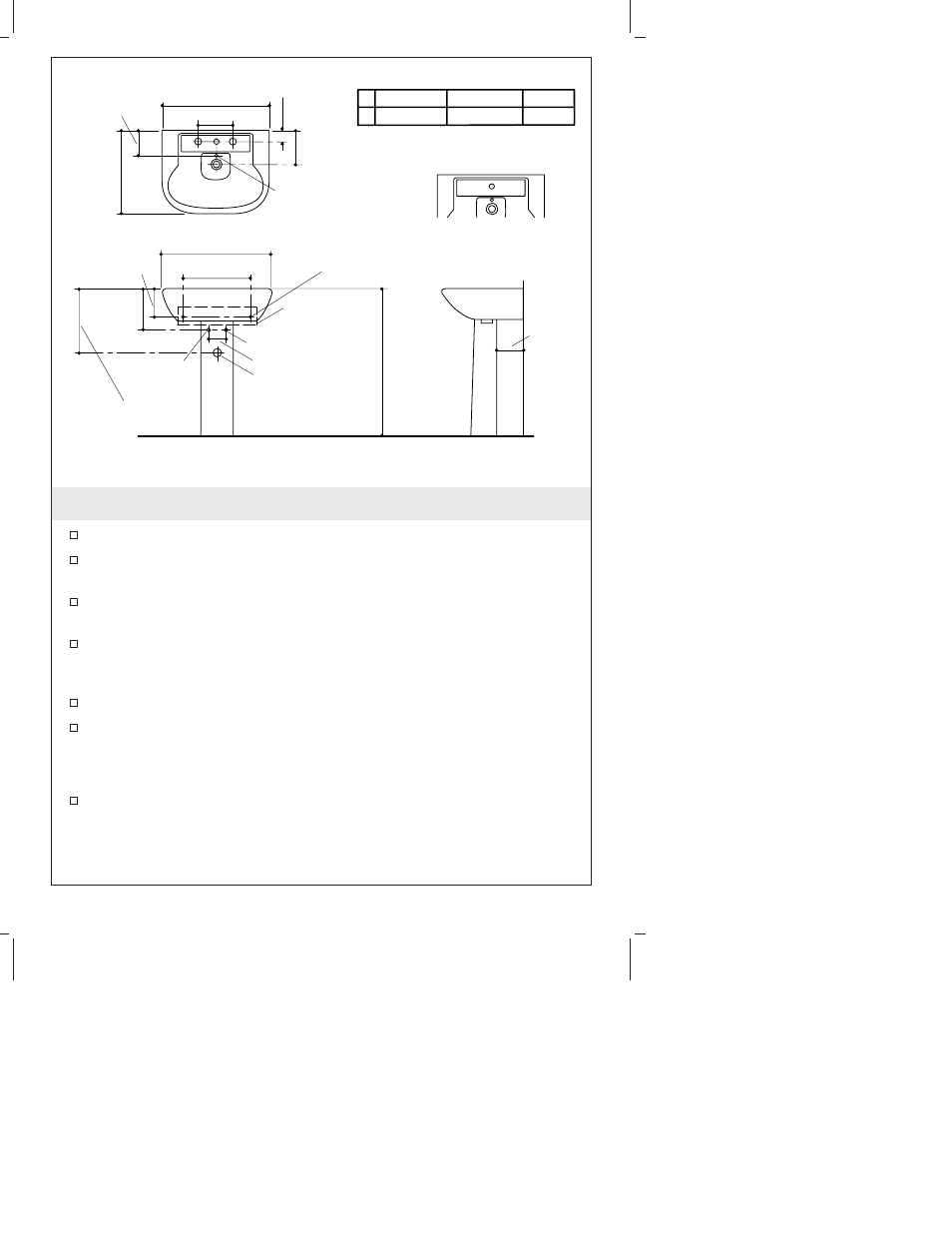

442424 442428 442421
A 4" (10.2 cm) 8" (20.3 cm) NA A
7-3/4" (19.7 cm)
1/2" (1.3 cm) D.
Mounting Hole in Pedestal
2-5/8"
(6.7 cm)
23-3/8" (59.4 cm) 6-5/8"
(16.8 cm)
18-1/4"
(46.4 cm)
6" (15.2 cm)
23-3/8" (54 cm)
15-1/4" (38.7 cm)
1/2" (1.3 cm) D.
Anchor Holes (2) in Lavatory
Provide
backing.
33"
(83.8 cm)
5-5/8"
(14.3 cm)
3/8" Cold
4" (10.2 cm)
1-1/4" Drain
Outlet
Common Pedestal Model
3/8" Hot
14-1/4"
(36.2 cm)
9"
(22.9 cm)
Sterling 3 1021720-2-B
