19

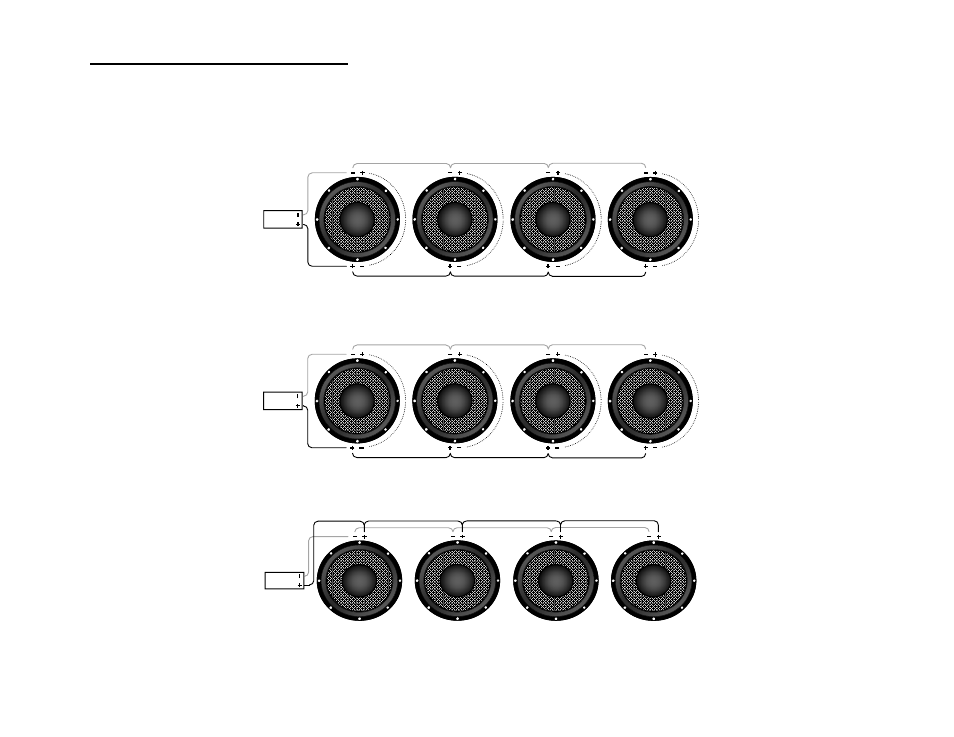

Series-Parallel / Four Dual 2 Ohm
Net Impedance = 1 Ohm

Amp

Series-Parallel / Four Dual 4 Ohm
Net Impedance = 2 Ohm

Amp

Subwoofer Wiring Diagrams

Amp

Series-Parallel / Four Single 4 Ohm
Net Impedance = 1 Ohm
