Controls
]
Controls
Vehicle Dock

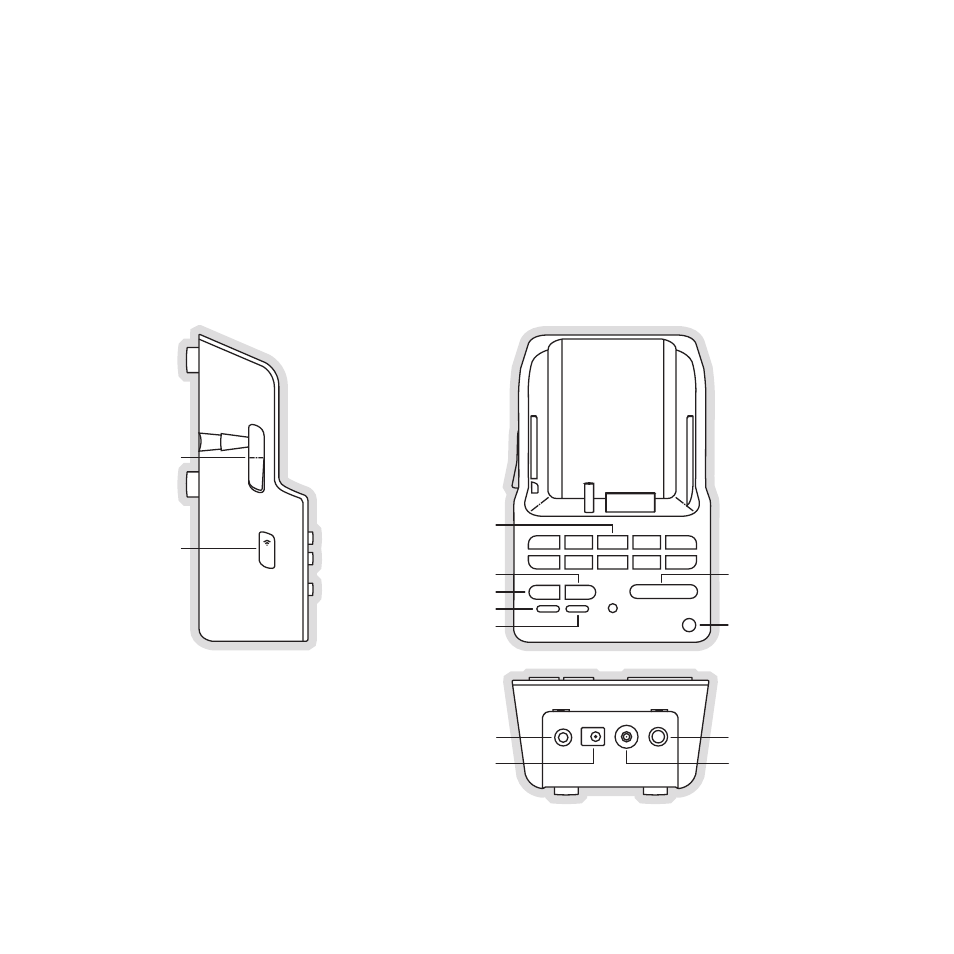

Figure 1 and the table following identify and describe the buttons, connectors, and features of
the vehicle dock.
1
preset tune jump
2 3 4 5
6 7 8 9 0
FM
lock
Direct Entry Tune/
Preset Buttons
Preset
Tune
DC5V
LINE OUT
FM
Lock
Jump
IR Remote
Sensor
Preset Mode Indicator
Tune Mode Indicator
FM OUT
ANT
figure 1 figure 1
