Not active
in this model.
Not active
in this model.

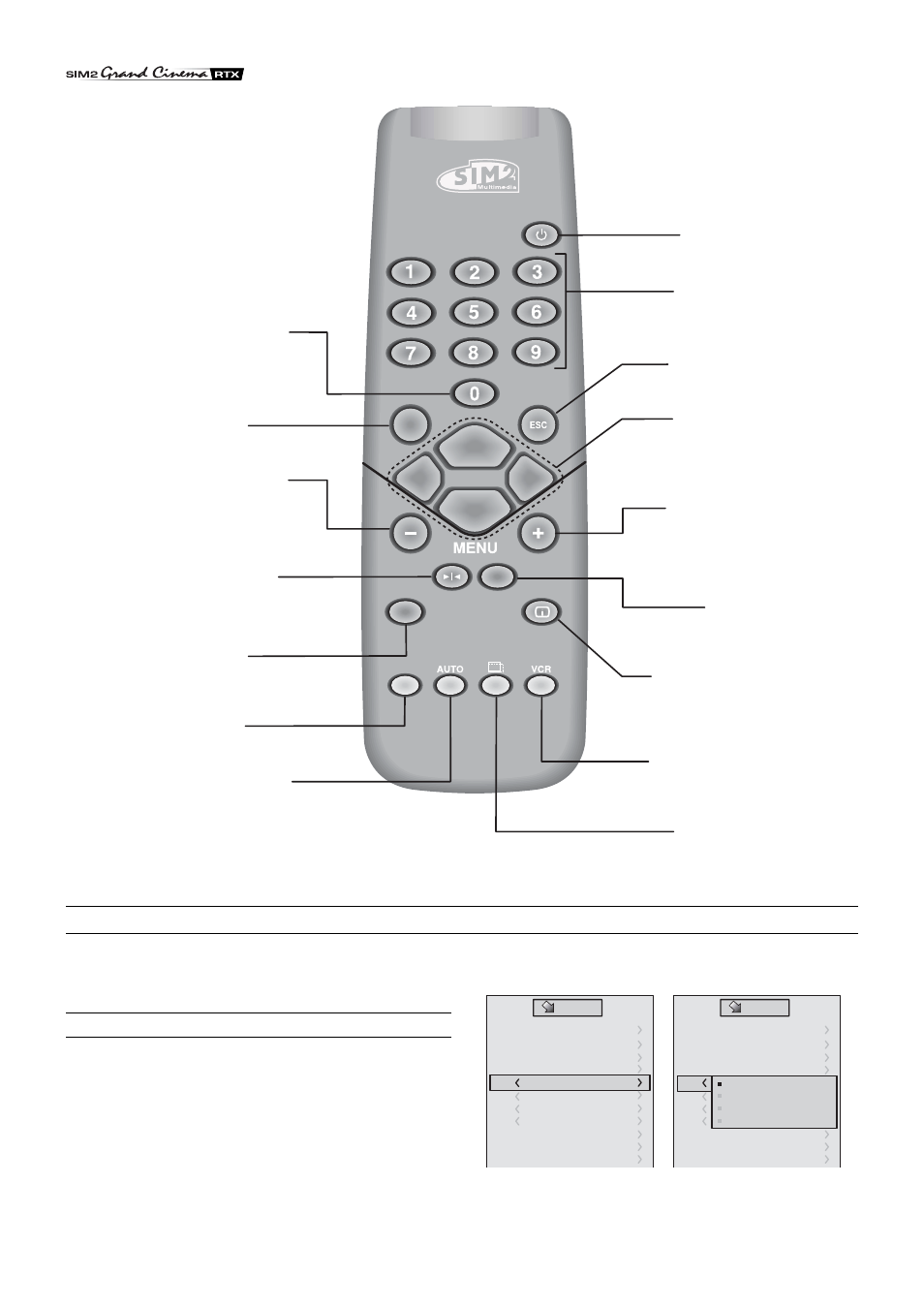

MENU
Activates the On Screen Display
menus and allows navigation
though the various pages.
FREEZE
Freezes a
moving picture.
Not active
in this model.
STAND-BY
Switches system to stand-by.
KEYS 0-9
Switch system on from
stand-by and allow
direct source selection.
ESCAPE
Deactivates the On Screen Display.
MENU
Activates the On Screen Display
menus and allows navigation
though the various pages.
INFO
Displays selected source
information and system status.
VCR
Activates a filter to improve
video recorder signal quality.
ASPECT
Selects picture aspect ratio.
INPUT
Displays the Source
Selection menu.
Navigate through
the On Screen Display and make
adjustments to the parameters.
activate quick menus.
AUTO
Selects Auto Adjust
(automatic optimisation
of the displayed image).
Not active
in this model.
+
-
ON SCREEN MENU
All system functions can be activated from the keypad or remo-
te control with the aid of a practical and comprehensive system
of on screen menus.
INPUTS
The input selection menu (Inputs) is called by pressing 0 on the
remote control and, when no other menu is displayed, using the
and keys on the keypad. To select an input, scroll the list
with the and keys until the desired input is highlighted,
then press .
Alternatively, press the corresponding numerical key (1...11) on
the remote control (for numbers 10 and 11 press keys 1 and 0
(10) or 1 and 1 (11) in rapid succession).
Display of the input selection menu is terminated
Inputs
2 Video
3 S-Video
9 RGB Graphic
10
11
4 S-Video
5 YCrCb 32kHz
6 RGBS 15kHz
7 YCrCb 32kHz
8 YCrCb 15kHz
1 Video
RGB Graphic
DVI-D
Inputs
2 Video
3 S-Video
9 RGB Graphic
10
11
4 S-Video
5
6
7
8
1 Video
YCrCb 15kHz
YCrCb 32kHz
RGBS 15kHz
RGBS 32kHz
DVI-D
RGB Graphic
Fig. 11
Fig. 12a Fig. 12b
