6

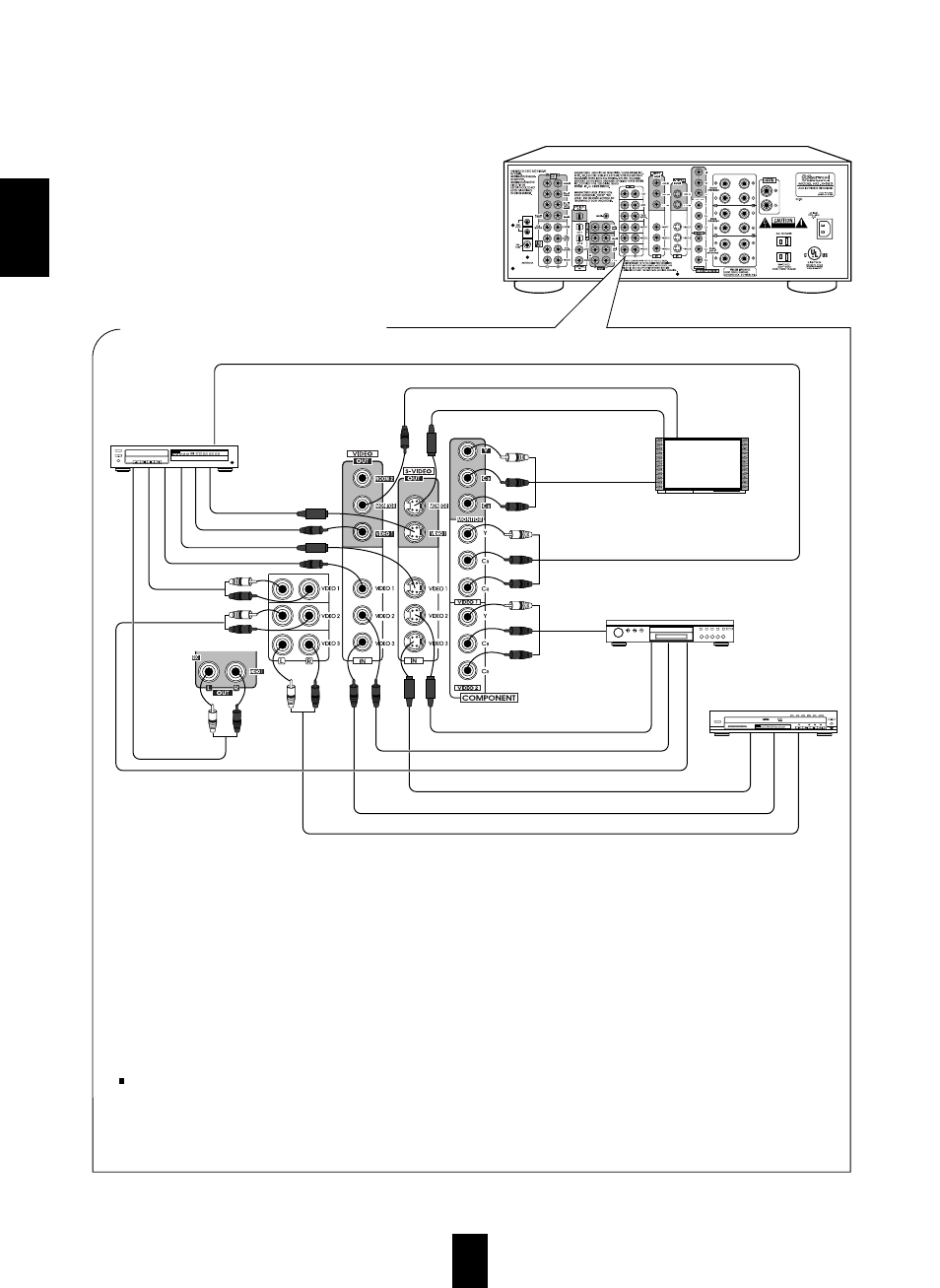

■ CONNECTING VIDEO COMPONENTS
POWER
OPEN/CLOSE
PHONES LEVEL PHONES MIN MAX
ON/OFF MULTIPLE COMPACT DISC PLAYER CDC-5080R
1 2 3 4 5 GRAPHICS PEAK DELETE EDIT SCENE TRACK INDEX STEP A B V-CD PBC REVERT PROG AUTO RANDOM REPEAT ALL 1 DISC S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 MPX INTRO A< >B
Video deck or
additonal
video component
• The VIDEO 1 jacks may also be connected to a DVD recorder or other digital video recording component.
For details, refer to the operating instructions of the component to be connected.
• There are three kinds of video jacks (COMPONENT, S, normal (composite)) for connecting video components.
Connect them to the corresponding VIDEO jacks (VIDEO 1~3) respectively according to their capability.
• The VIDEO 2(or VIDEO 3) jacks may also be connected to an additional video component such as a video deck, a cable TV tuner,
an LD player or satellite system, etc.
• This unit incorporates COMPONENT as well as S and normal(composite) VIDEO jacks.
• For your reference, the excellence in picture quality is as follows: "COMPONENT" > "S"> normal(composite) "VIDEO".
• When making COMPONENT VIDEO connections, connect "Y" to "Y", "C
B " to "C B " (or "B-Y", "P B ") and "C R " to "C R "(or "R-
Y", "P R ").
• Signals input into the COMPONENT VIDEO IN jacks will be output in only the MONITOR COMPONENT VIDEO OUT jacks.
• A signal input into the normal(composite) VIDEO IN jack will be output in the normal(composite) VIDEO OUT jacks and a signal
input into the S-VIDEO IN jack will be output in the S-VIDEO OUT jacks.
Notes :
• Neither on-screen display function nor video recording are available when using the COMPONENT VIDEO connections.
• When Sherwood DVD player such as V-756, etc. is connected to the DIGI LINK jack for system control, you should connect the
DVD player to the "VIDEO 2" jacks of this unit. Because, if the PLAY button, etc. is pressed on the DVD player, the VIDEO 2 is
automatically selected as an input source on this unit. Then the playback, etc. starts.
POWER ON/OFF
MULTIPLE COMPACT DISC PLAYER CDC-5080R
DVD player
S-VIDEO IN
VIDEO IN
COMPONENT VIDEO OUT
Green
Blue
Red
Green
Blue
Red
Green
Blue
Red
COMPONENT VIDEO IN
S-VIDEO OUT
VIDEO OUT
AUDIO OUT
S-VIDEO OUT
AUDIO
REC(IN)
AUDIO
PLAY(OUT)
VIDEO OUT
AUDIO OUT
S-VIDEO IN
VIDEO IN
S-VIDEO OUT
VIDEO OUT
COMPONENT
VIDEO OUT
LD player or additonal
video component
POWER
1 2 3 4 5 DISC SKIP
REMOTE SENSOR PROGRAM/REVIEW RANDOM REPEAT
OPEN/CLOSE
PHONES LEVEL
PHONES MIN MAX
ON/OFF
MULTIPLE COMPACT DISC PLAYER CDC-5080R
5 DISC PLAY EXCHANGE
Play 1 Exchange 4 AUTOMATIC DISC LOADING SYSTEM
1 2 3 4 5 GRAPHICS PEAK DELETE EDIT SCENE TRACK INDEX STEP A B V-CD PBC REVERT PROG AUTO RANDOM REPEAT ALL 1 DISC S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 MPX INTRO A< >B
Monitor TV
