54
Connections for an A/B Roll Editing System
Ch
apt
er 5
Con
nec
tions
and
S
e
ttin
gs

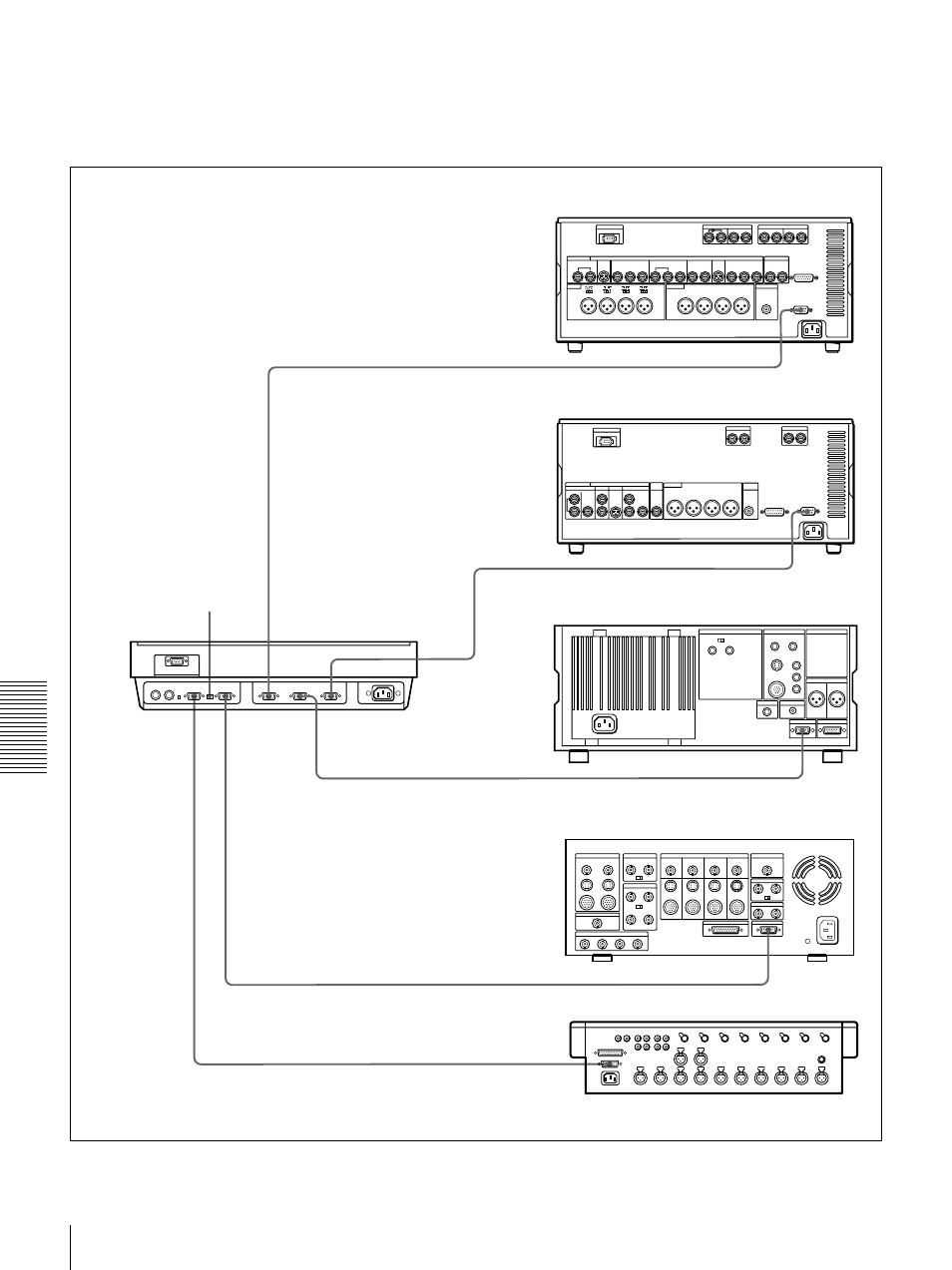

Control signal connections
The following shows an example of control signal
connections to enable the editing control unit to control all
other A/B roll editing system devices.
SWITCHER PLAYER 2 MIXER
PLAYER 1
RECORDER
REMOTE
REMOTE
REMOTE
EDITOR
DSR-1800A/1800AP
9-pin remote control cable (not supplied)
DSR-1600A/1600AP (player 1)
Mixer control mode
selection switch:
PARALLEL
9-pin remote control cable (not supplied)
UVW-1600/1600P (player 2)
Editing control unit
(PVE-500, etc.)
DME switcher
(DFS-500/500P, etc.)
9-pin remote control cable (not supplied)
9-pin/15-pin mixer control cable (not supplied)
EDITOR (15-pin)
Audio mixer
(MXP-290, etc.)
DSR-1800A/1800AP (recorder)
