Before Using Your Battery Charger
It is important to prepare your charger for use. This section will tell you how to assemble the charger, ground
and connect the power cord, and prepare to charge a battery.
Assembling your charger
It is important to fully assemble your charger before
use. Follow these instructions for easy assembly.
PARTS:
Two 10-32 thread cutting
screws
Two 1/4-20 thread cutting
screws
Two wheels
One axle
Two axle caps
Two axle brackets
One handle
One mounting foot

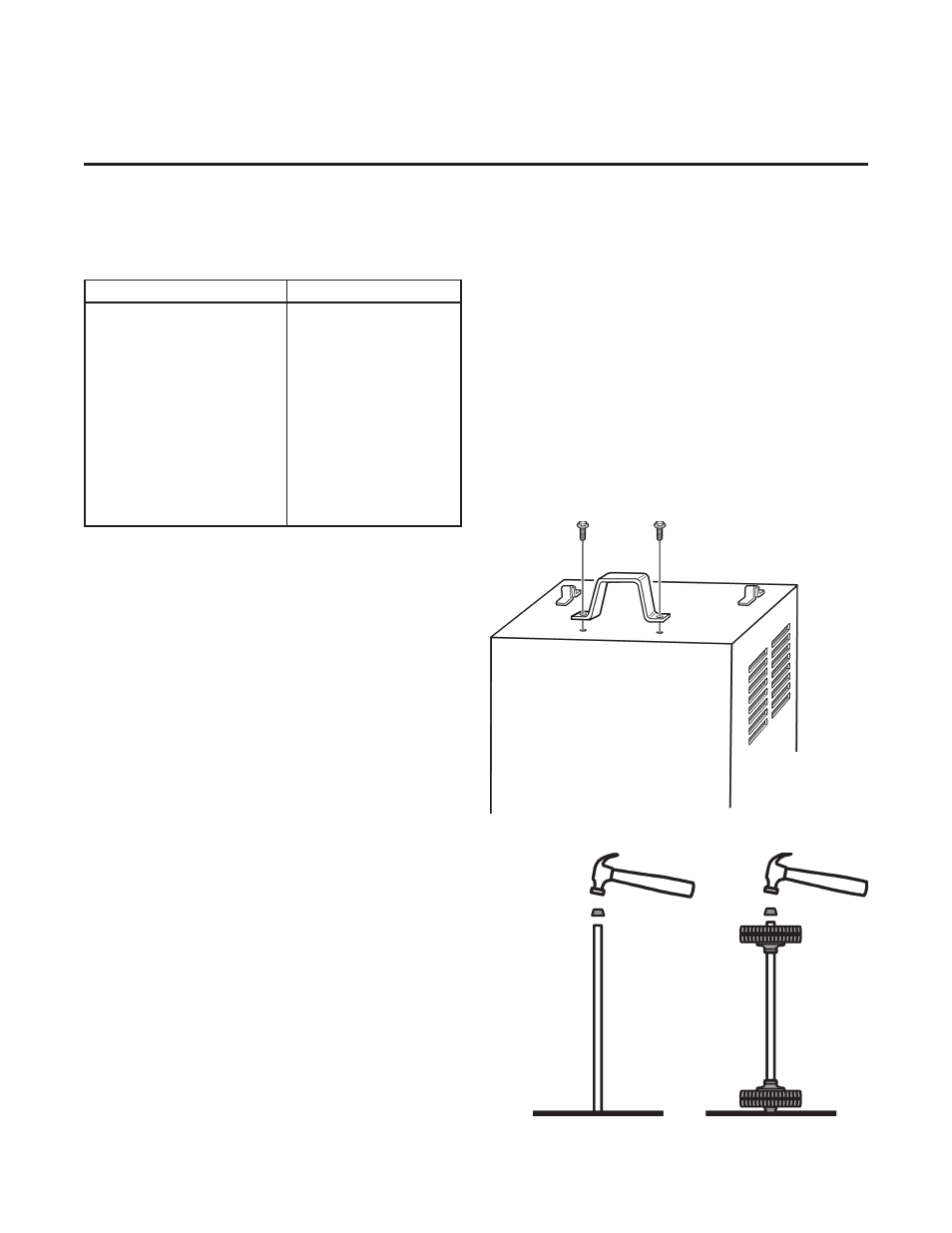

To attach the axle assembly:
1. Remove charger from packing materials and place
upside down on a flat surface. Attach mounting foot
and secure with the two 1/4-20 thread cutting
screws.
2. Hold axle upright on floor or work surface. Then,
using a hammer, tap one of the plastic hubs onto
the top end of the axle. Be sure to tap the hub on
straight. Slide both wheels onto the axle with the
hubs facing inward.
TOOLS NEEDED:
3/8" wrench
(for mounting foot)
5/16" wrench
(for wheels)
Hammer
Phillips screwdriver
continued on next page
