Sears 47006 - Manual (Page 4)

3
Sears 006 - Sch 552 11/2/95
Description
Handle
Negative (BLK) cable w/clamps
Positive (RED) cable w/clamps
Power Cord
Circuit Breaker Asm
Rectifier Assembly
Transformer
Owner's Manual (not shown)
Wheel
Hub Cap
Axle
Axle mtg. bracket
Mounting Foot
Rocker Switch 3 pos.
Ammeter
Rocker Switch 2 pos.
Parts

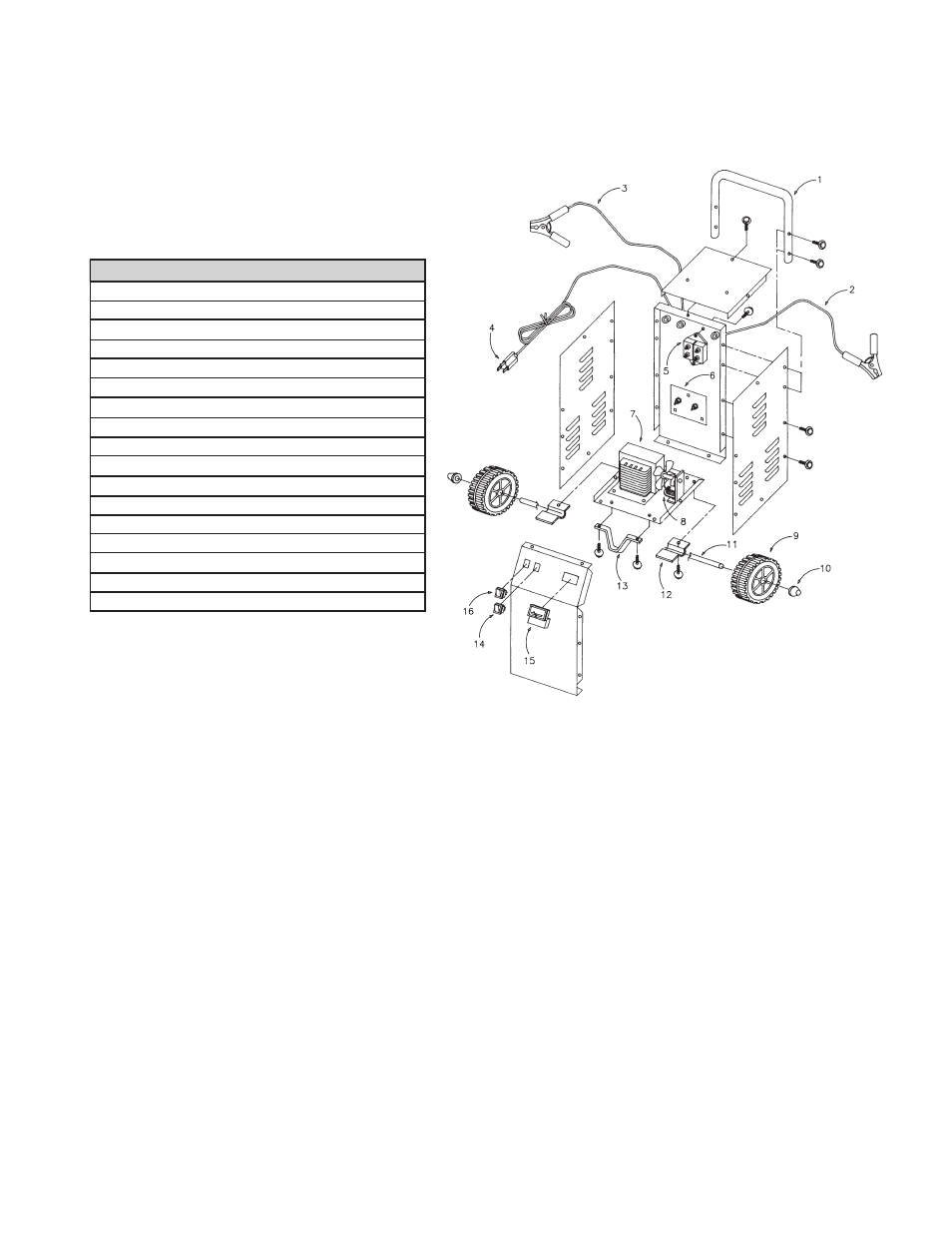

This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are
located, and what they look like.
Replacement Parts List Sears 47006
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Part Number
3599000286
3899000396
3899000410
90026096
3999000057
2299000614
93026365
0000000552
0099000080
5200000008
0099000060
1199004366
1199003352
0499000052
5399100097
0499000050
Wiring diagram
