Rear panel – Sony DDU100E User Manual
Page 10
10

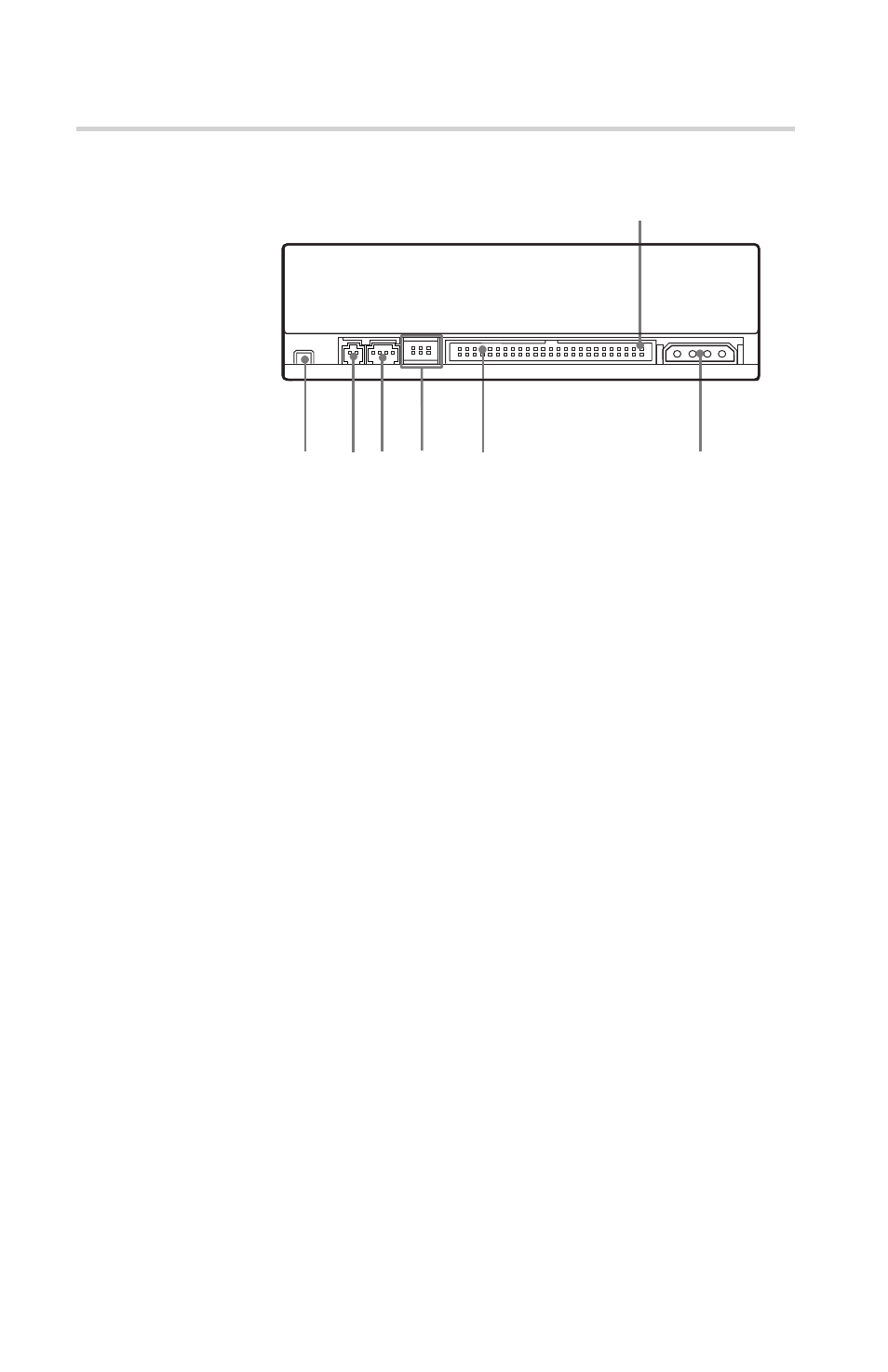

Rear Panel
1 2 3 4
5
6
1F. GND (Frame ground) tab
Connect with one of the host computer’s ground cables when the
frame of the drive unit is not in direct contact with the computer.
2Unused
3ANALOG AUDIO connector
Outputs analog audio signals.
4Configuration Jumpers
See page 13 for details.
5INTERFACE CONNECTOR (IDE bus)
Connect to IDE port of the host computer using a connecting
cable.
6DC INPUT (power-in) connector
Connect to the power supply of the host computer.
Pin 1
Location and Function of Parts and Controls
