English _11
M
CONNECTING
WITH OTHER EQUIPMENT

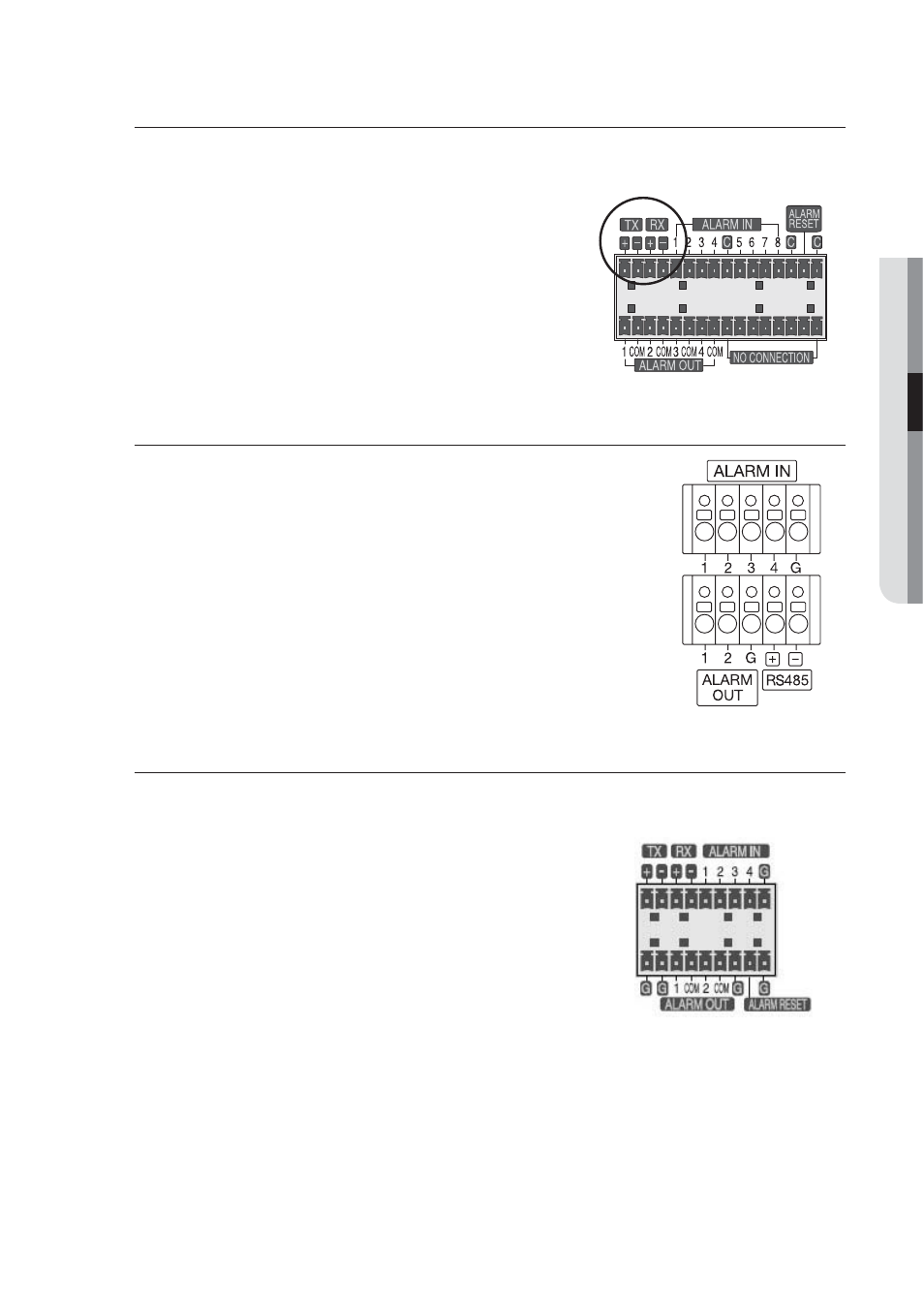

Connecting SHR-4081, SHR-4160, SHR-508X Series, SHR-516X Series,
SHR-208X and SHR-216X Series DVRs
Connect to SSC-5000 through the RS-485 port on the rear of the DVR.
Connecting as Half Duplex
- Connect TX (+) of the RS-485 port of the DVR to TX (+) of
SSC-5000.
- Connect TX (-) of the RS-485 port of the DVR to TX (-) of SSC-5000.
Connecting as Full Duplex
- Connect RX (+) of RS-485 port of the DVR to RX (+) of SSC-5000.
- Connect RX (-) of RS-485 port of the DVR to RX (-) of SSC-5000.
- Connect TX (+) of RS-485 port of the DVR to TX (+) of SSC-5000.
- Connect TX (-) of RS-485 port of the DVR to TX (-) of SSC-5000.
Connecting SHR-5040 & SHR-5042 DVR
Connect to SSC-5000 through the RS-485 port on the rear of SHR-5040 /
SHR-5042DVR.
Connecting as Half Duplex
- Connect TX (+) of RS-485 port of SHR-5040 / SHR-5042 DVR to TX (+) of
SSC-5000.
- Connect TX (-) of RS-485 port of SHR-5040 / SHR-5042 DVR to TX (-) of
SSC-5000.
Connecting SHR-204X Series DVR
Connect to SSC-5000 through the RS-485 port on the rear of SHR-204X DVR.
Connecting as Half Duplex
- Connect TX (+) of RS-485 port of SHR-204X Series DVR to TX (+)
of SSC-5000.
- Connect TX (-) of RS-485 port of SHR-204X Series DVR to TX (-)
of SSC-5000.
Connecting as Full Duplex
- Connect RX (+) of RS-485 port of SHR-204X Series DVR to RX (+)
of SSC-5000.
- Connect RX (-) of RS-485 port of SHR-204X Series DVR to RX (-)
of SSC-5000.
- Connect TX (+) of RS-485 port of SHR-204X Series DVR to TX (+) of SSC-5000.
- Connect TX (-) of RS-485 port of SHR-204X Series DVR to TX (-) of SSC-5000.
