PDRP-1001 Instruction Manual PN 50734:D0 04/06/01
49
Remote Station Receiver - RS82-9
Using the 4XTM Transmitter Module for connection to a Fire•Lite RS82-9 Remote Station Receiver.
• Intended for connection to a polarity reversal circuit of a remote station receiving unit having
compatible ratings.
• All connections are power-limited and supervised with the exception of the reverse polarity loop.
• Supervision of the loop is the responsibility of the receiver.

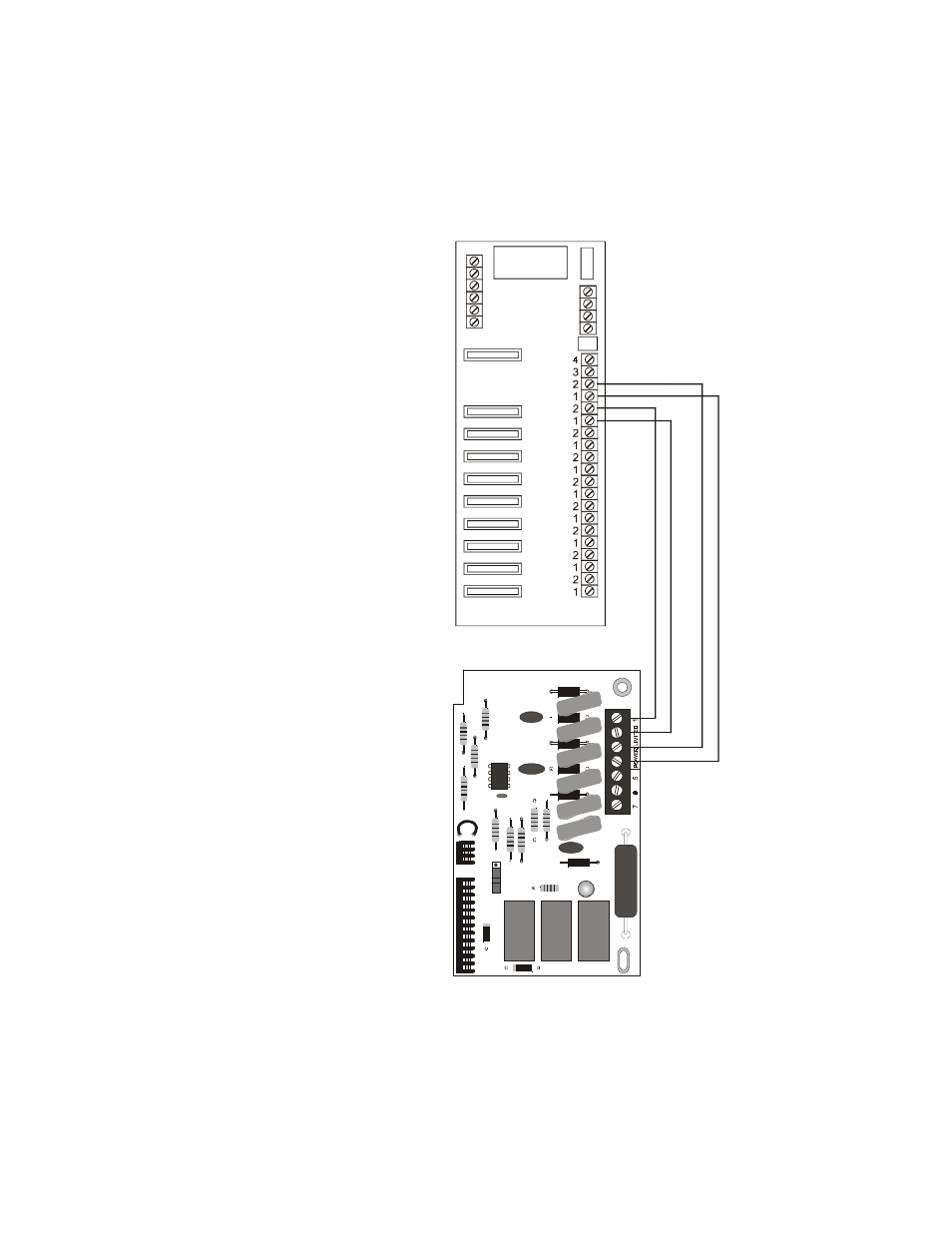

Figure 27 RS82-9 Connections
TB1
TBL
J1
J2
Fire•Lite RS82-9
Remote Station
Receiver
MS
44
-rs8
2
.cd
r
4XTM Transmitter
Module
+ –
+ –
Remote
Trouble
Remote
Alarm
