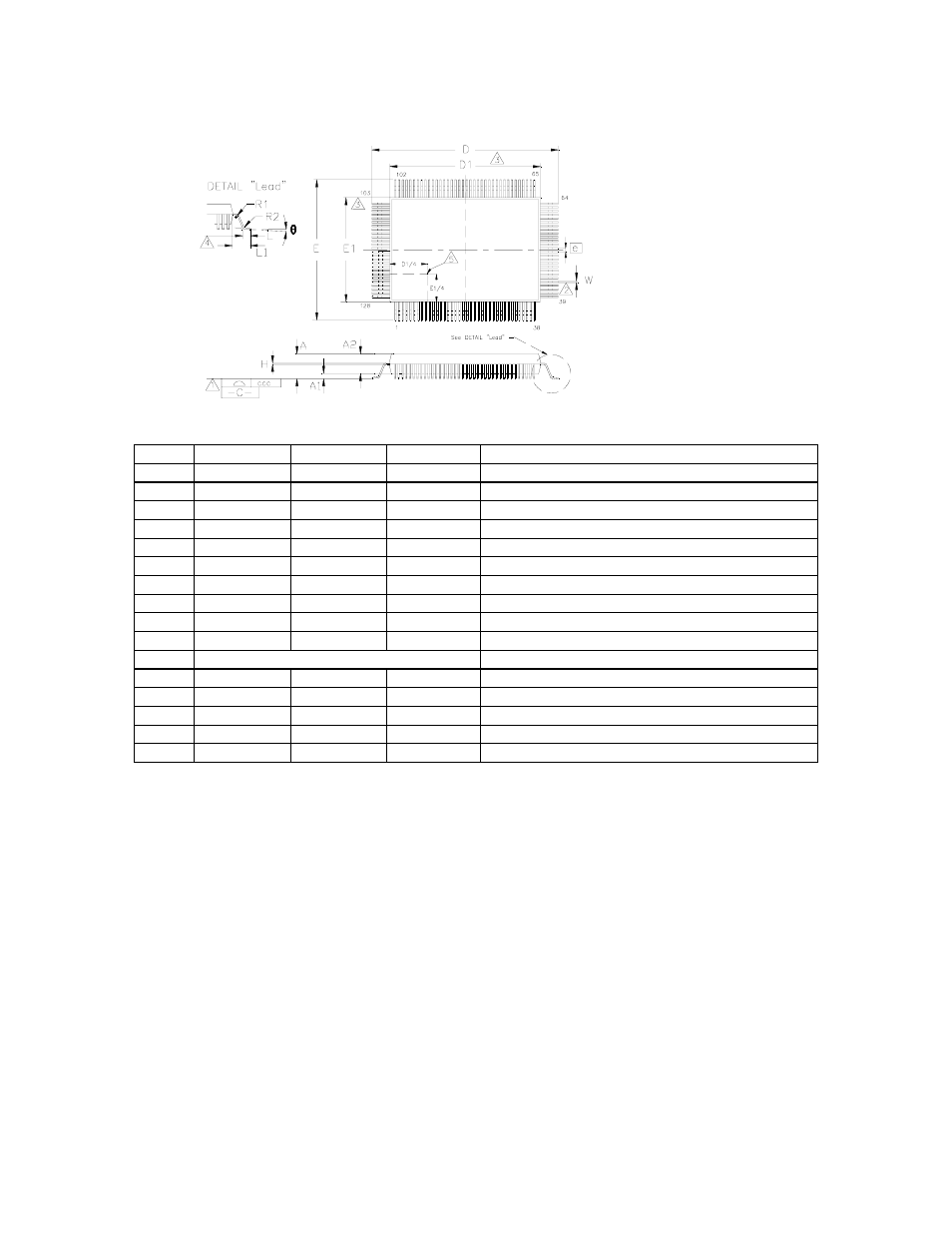

128 PIN QFP PACKAGE OUTLINE, 3.9 MM FOOTPRINT.
MIN NOMINAL MAX REMARKS
A ~ ~ 3.4 Overall Package Height
A1 0.05 ~ 0.5 Standoff
A2 2.55 ~ 3.05 Body Thickness
D 23.70 ~ 24.10 X Span
D1 19.90 ~ 20.10 X body Size
E 17.70 ~ 18.10 Y Span
E1 13.90 ~ 14.10 Y body Size
H 0.09 ~ 0.20 Lead Frame Thickness
L 0.73 0.88 1.03 Lead Foot Length
L1 ~ 1.95 ~ Lead Length
e 0.50 Basic Lead Pitch
θ 0
o
~ 7
o
Lead Foot Angle
W 0.10 ~ 0.30 Lead Width
R1 0.13 ~ ~ Lead Shoulder Radius
R2 0.13 ~ 0.30 Lead Foot Radius
ccc ~ ~ 0.08 Coplanarity
Notes:
1 Controlling Unit: millimeter.
2 Tolerance on the position of the leads is ± 0.04 mm maximum.
3 Package body dimensions D1 and E1 do not include the mold protrusion.
Maximum mold protrusion is 0.25 mm.
4
Dimension for foot length L measured at the gauge plane 0.25 mm above the seating plane.
5
Details of pin 1 identifier are optional but must be located within the zone indicated.
