SC-FM1 Installation Guide
7

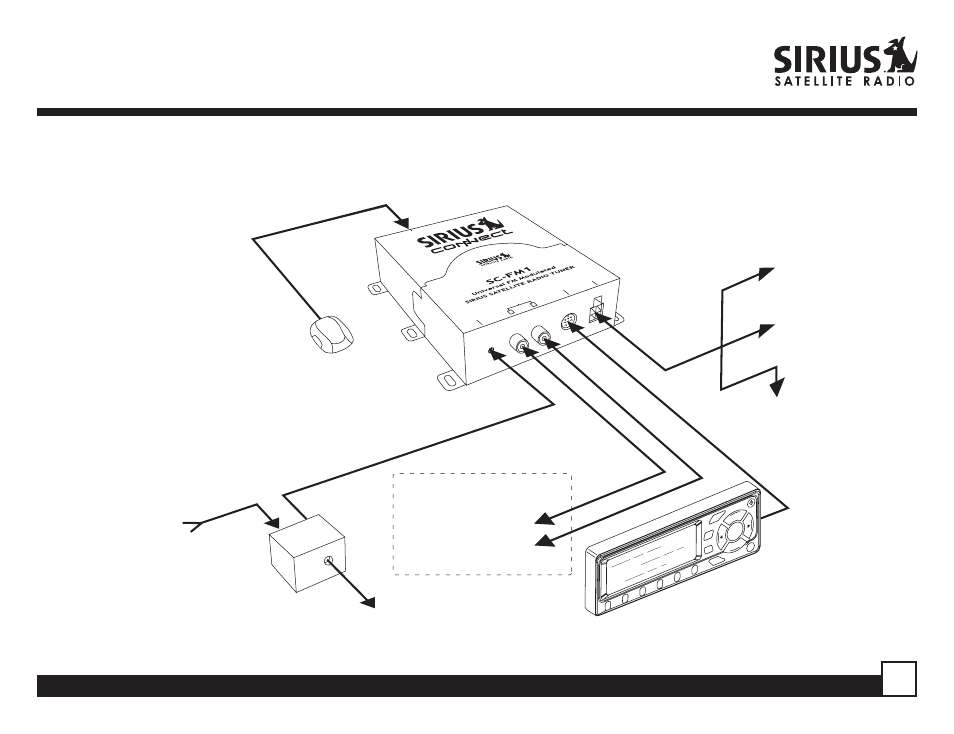

SC-FM1 System Wiring Diagram
TO VEHICLE
BATTERY +12V
(YELLOW)
DISPLAY
CONTROL UNIT
AUDIO SYSTEM
AUXlLIARY INPUT
JACKS L/R
OPTIONAL
TUNER
ANTENNA
TO SWITCHED
IGNITION +12V
(RED)
TO GROUND
-12V (BLACK)
+
-
... ... ...
FROM VEHICLE
AM/FM ANTENNA
TO VEHICLE
AM/FM RADIO
FM RELAY
SWITCH
ANTENNA
TO CO NT RO LLE R
PO WER
FM OU T
AUDIO O
UT
R
L
