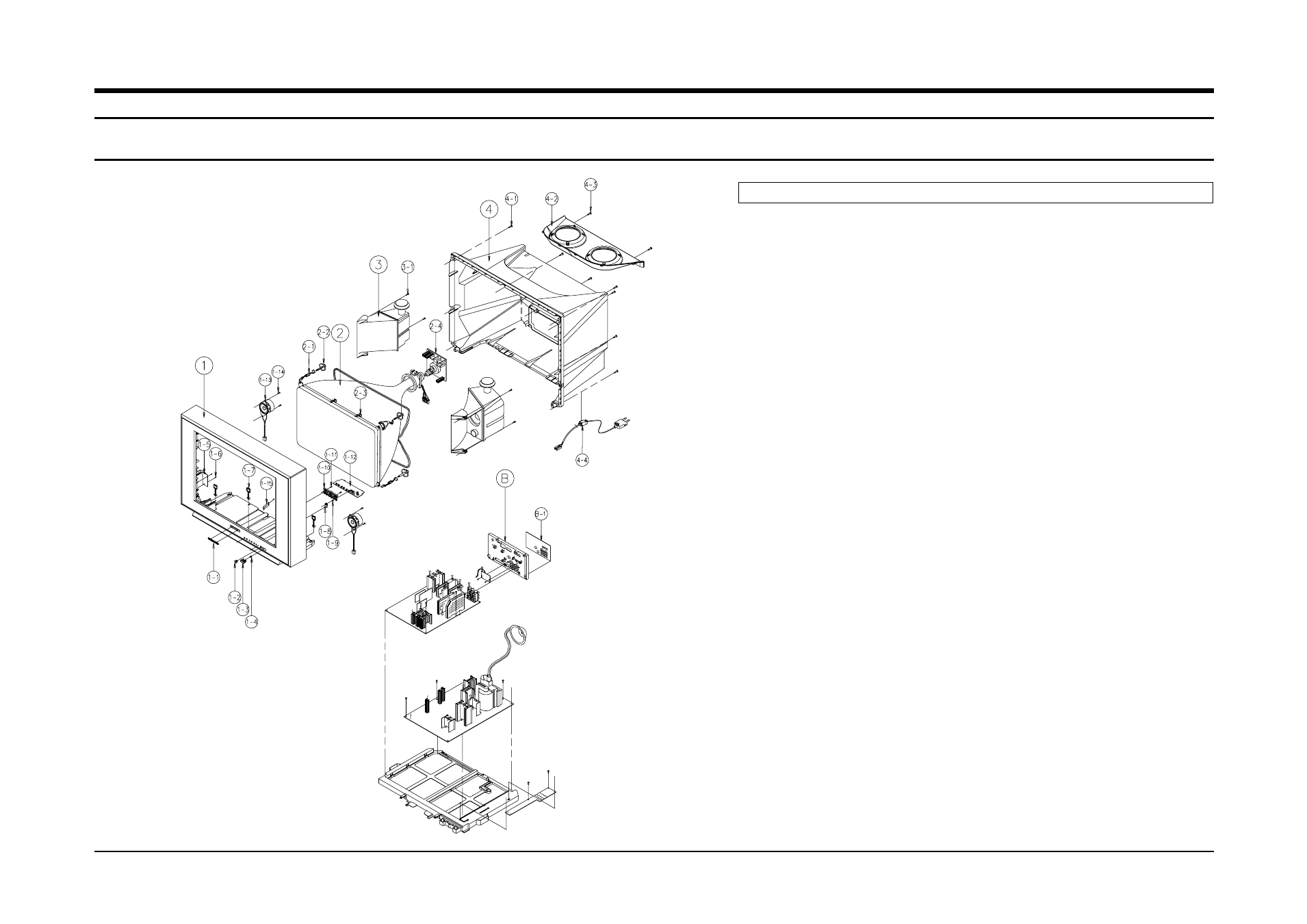

6. Exploded View & Parts List
6-1 CS29A6WT8X/BWT
Exploded View & Parts List
Samsung Electronics 6-1
No Code No Description Specification Q’ty Remark
1 AA64-01222C CABINET FRONT ;29A6 KS3A PLANO,S704+B702 1
1-1 AA64-70117B BADGE-BRAND ;AL,SS,SILVER,L65,R2000,-,- 1
1-2 AA64-40516B WINDOW-REMOCON ;-,29A6,-,PC,V0,VIOLET,- 1
1-3 AA64-10792B KNOB-POWER ;-,29A6,NO-SILK SV704P+W971 ,A 1
1-4 AA61-60003J SPRING-CS ;-,SUS304,0.5,OD6,H12,N7,-,-,- 1
1-5 AA95-00682A ASSY-PCB,A/V SIDE ;-,29A6,29A5,KS3A,PAL,- 1
1-6 6002-000522 SCREW-TAPPING ;TH,+,2,M4,L15,ZPC(BLK),SWR 2
1-7 AA65-00011C CLAMP-WIRE ;ALL MODEL,NYLON 66,V2,NTR,25M 3
1-8 AA64-40517B INDICATOR-LED ;-,-,-,ACRYL,-,CLEAR,- 1
1-9 6003-001019 SCREW-TAPTITE ;RH,+,B,M4,L12,ZPC(BLK),SWR 1
1-10 AA64-00028A KNOB-CONTROL ;-,29A6,SV808P+W971,ABS,HB,G 1
1-11 6003-001019 SCREW-TAPTITE ;RH,+,B,M4,L12,ZPC(BLK),SWR 2
1-12 AA95-00558A ASSY PCB CONTROL ;-,KS3A,29A6,- 1
1-13 AA91-00335A ASSY HOLDER SPK ;-,PP,8ohm/15W,blk,housin 2
1-14 6003-001019 SCREW-TAPTITE ;RH,+,B,M4,L12,ZPC(BLK),SWR 4
1-15 AA61-10054A BRACKET-CRATER ;-,6277,STS304,T0.5,-,-,- 1
2 AA03-00075A CRT-COLOR ;-,A68QCP891X003(C),+380MG,29IN 1
2-1 AA65-30113A CLAMP-D,COIL ;NYLON 66,V2,BLK,TVI 25~29,- 4
2-2 AA60-10050A SCREW-ASSY ;WP,RH,+,M4,L25,SWRCH18A,-,ZPC 4
2-3 AA65-30113A CLAMP-D,COIL ;NYLON 66,V2,BLK,TVI 25~29,- 4
2-4 AA95-00700A ASSY PCB CRT ;-,KS3A,29A6,-,PAL 1
3 AA91-00334B ASSY HOLDER SPK ;-,PP,8ohm/15W,BLK,AA91-0 1
3-1 AA60-10050A SCREW-ASSY ;WP,RH,+,M4,L25,SWRCH18A,-,ZPC 4
4 AA64-00027C CABINET-BACK ;-,72A6,-,HIPS,V2,BLK,-,- 1
4-1 6003-001025 SCREW-TAPTITE ;RH,+,B,M4,L20,ZPC(BLK),SWR 7
4-2 AA63-00005C COVER-TOP,SPEAKER ;-,72A6,-,HIPS,V2,BLK,- 1
4-3 6003-001025 SCREW-TAPTITE ;RH,+,B,M4,L20,ZPC(BLK),SWR 2
4-4 AA96-20130C ASSY-POWER,CORD ;-,CP2/NO(4.0R),H/C300MM, 1
B AA63-00164B TERMINAL-BOARD,ANT ;-,HIPS VO BLK,-,D3,32 1
B-1 AA64-00894B INLAY BACK ;D2,D3,SCART(2),PS SHEET,T0.3, 1
